Fendt 200 V/F/P Vario:
Ready for tomorrow.

Solving tomorrow's challenges today – the new Fendt 200 V/F/P Vario is your partner for excellent results, now and in the future. Equipped with functions and software that simplify and digitise your work – so your company can continue to harvest the fruits of success in the future. Experience a tractor that loves to navigate around your crops. Our Fendt 200 V/F/P Vario is a specialist in demanding tasks, a fully flexible professional and at home in vineyards, orchards and other specialist crops.

	207 V/F Vario	208 V/F Vario	209 V/F/P Vario	210 V/F/P Vario	211 V/F/P Vario
kW / hp*	58/79	62/84	69/94	77/104	84/114
kW / hp**					91/124

_{*Maximum Power ECE R 120}

_{**Maximum Power with DP ECE R 120}

Get a quote

Get a Quote

Please complete the form below, by clicking on the button, with all your details and we'll get an expert to phone you and discuss some options.

GET A QUOTE

BROCHURE TECHNICAL SPECIFICATIONS

360°

Every operation is different.

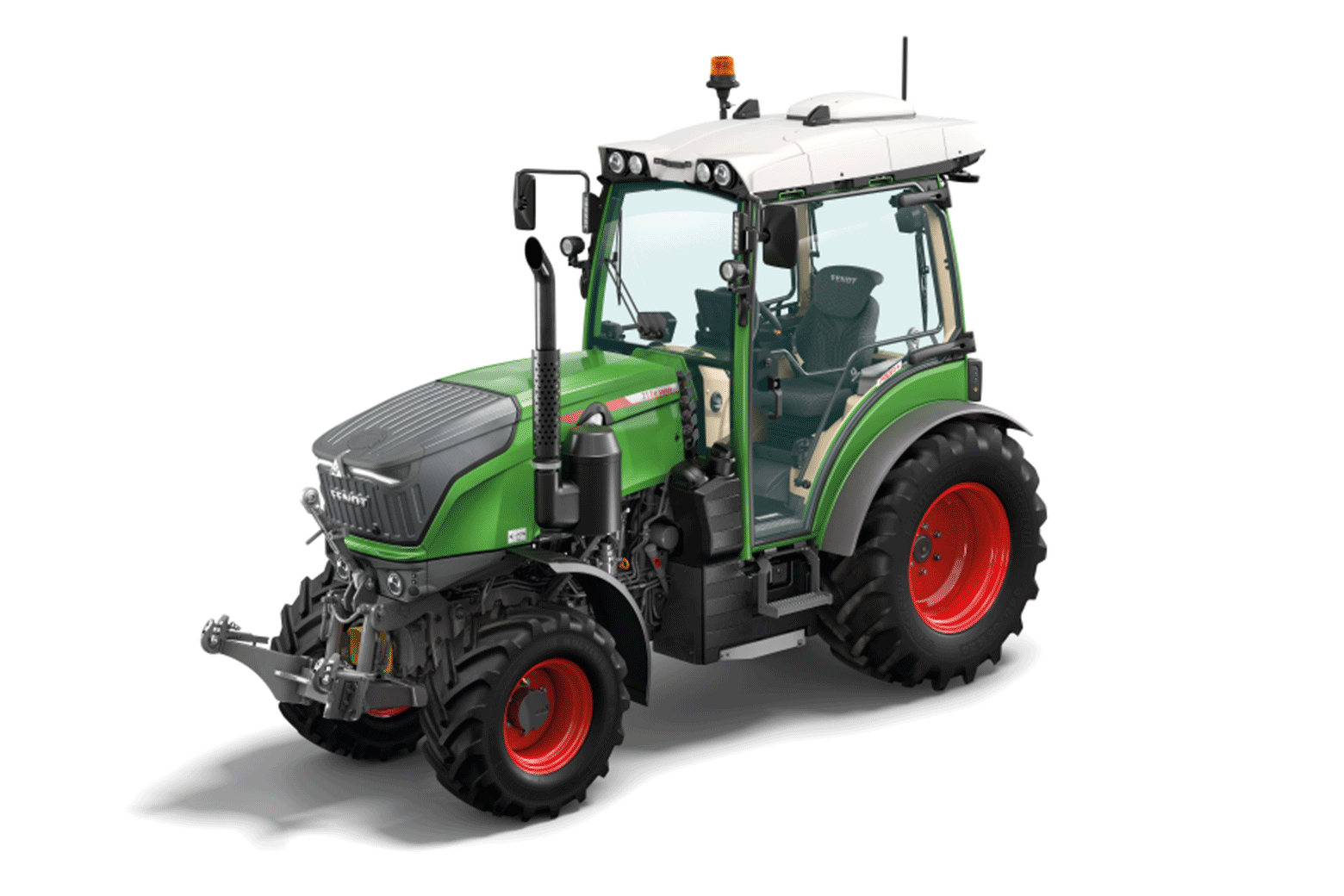

The Fendt 200 V/F/P Vario – the right partner for any job.

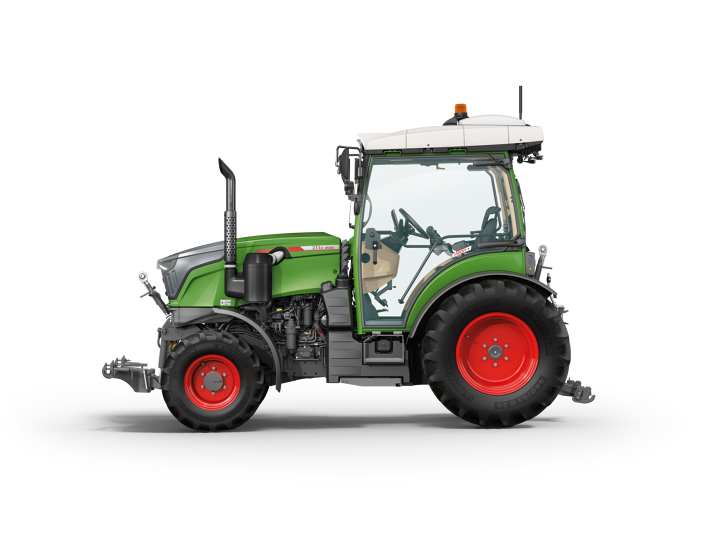

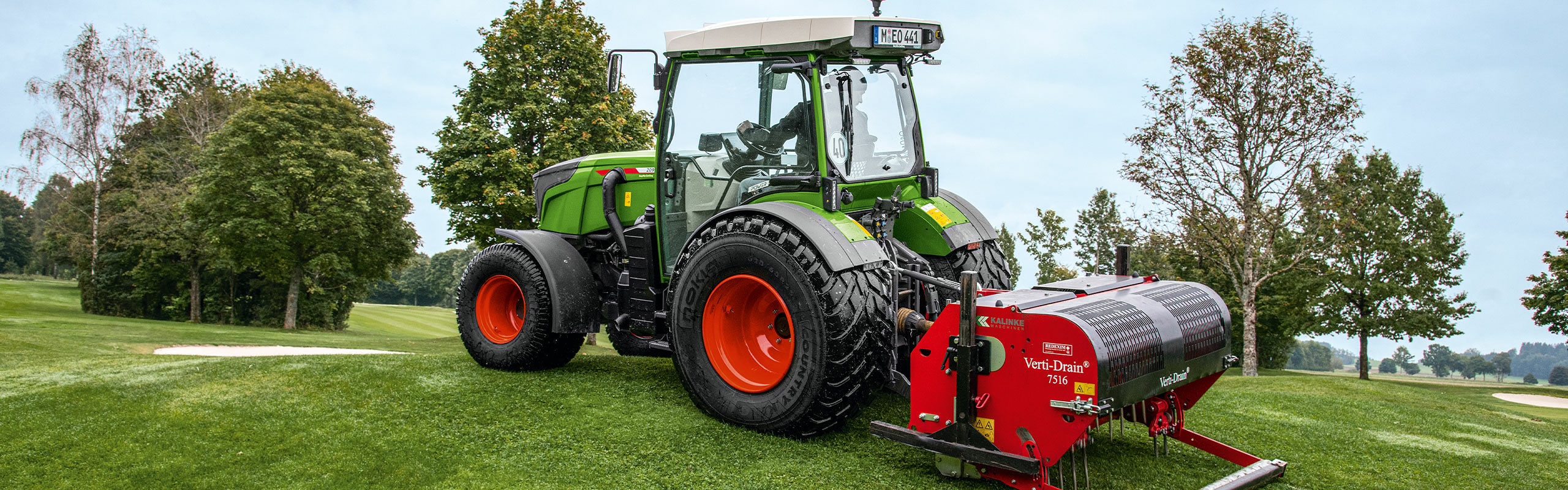

Fendt 200 V Vario: The classic narrow track tractor. High tech from an external width of 1.07 m. Optionally with wide front axle for better manoeuvrability.

Fendt 200 F Vario: From an external width of 1.32 m, the Fendt 200 F Vario already offers the comfort of the 14 cm wider cab and the wider, raised front windscreen.

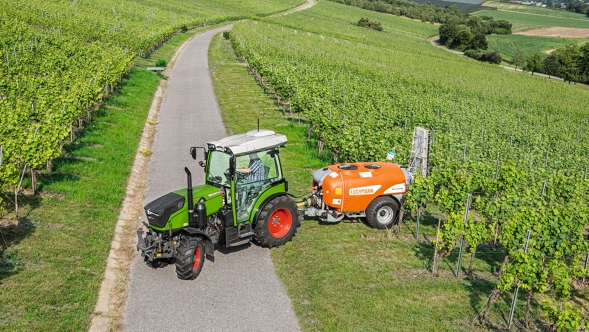

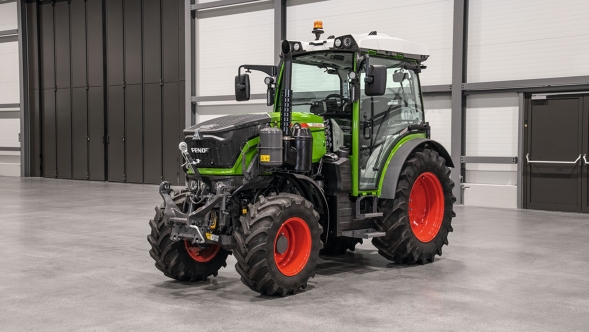

Fendt 200 P Vario: The specialist tractor with wider axles and higher lift capacities from 1.59 m

Special. Better. 200 V/F/P Vario - Spotlights.

Here you can see our special Fendt solutions – our Fendt Spotlights – that make the difference and simply make your work better every day.

FendtONE driver's workstation: intuitive control with 10" digital dashboard and console
12" terminal
Hi-tech hydraulics with up to 7 valves, Power Beyond and a flow capacity of up to 119 l/min
Cat. 4 filter protection option on the cab
Spacious comfort cab with extended windscreen and excellent all-round view with 4-pillar cab
Three equipment attachment spaces at the front, rear and intermediate axle for efficient combinations
Three equipment options: Power, Profi and Profi+
Fendt DynamicPerformance: smart power boost concept
Front axle suspension with anti-roll control – for up to 7% more area coverage, comfort and safety.
Rear power lift with load-relief (V/F)

Show more details

Front axle suspension with anti-roll control – for up to 7% more area coverage, comfort and safety.

Anti-roll control guarantees a high degree of stability and operating safety, especially when working with heavy implements on slopes.

Cat. 4 filter protection option on the cab

Cab air filter system can be converted to protection category 4 on delivery. (EU-Norm EN15695 with protection from dust, liquid pesticides and vapours).

Hi-tech hydraulics with up to 7 valves, Power Beyond and a flow capacity of up to 119 l/min

The cleverly designed hydraulics system offers up to 7 control valves, 2 control circuits, independently adjustable flow rates, Power Beyond, a prioritisation function and free assignment.

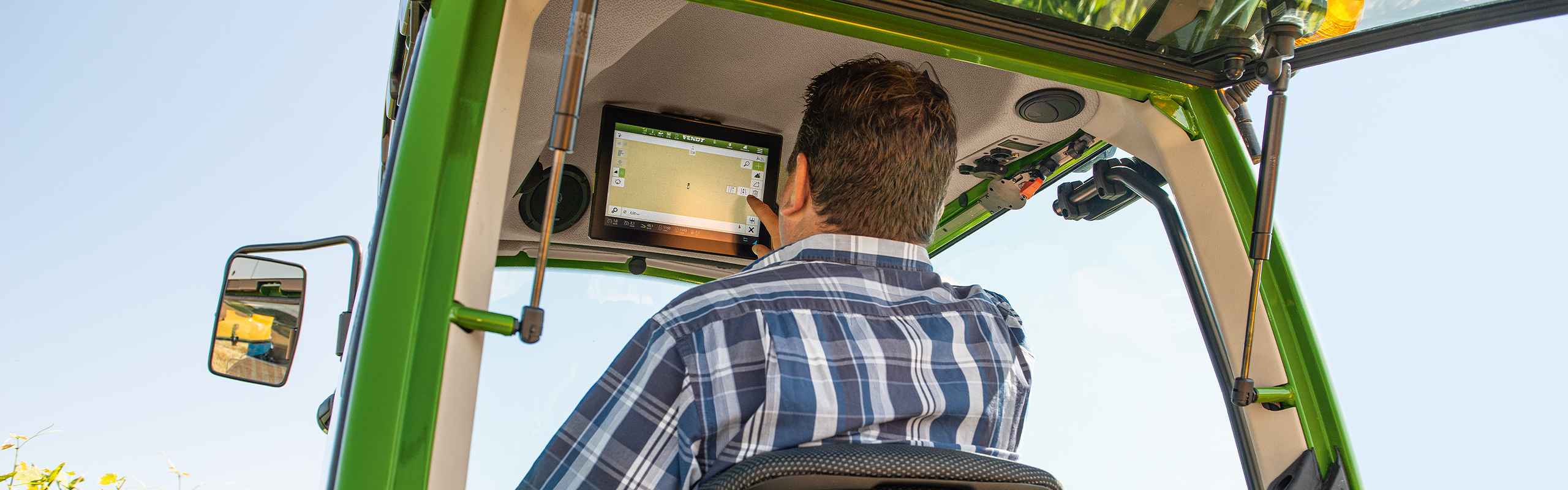

12" terminal

Ingenious technology – with the 12" touchscreen, optional camera function, integrated lane guidance and documentation, as well as the FendtTI headland management system, the future starts here.

Rear power lift with load-relief (V/F)

With the field pressure set, the rear attachment follows the ground contour precisely and at a steady working height, including over uneven ground. Great when working on the overhang from slope to level ground (and vice versa).

Spacious comfort cab with extended windscreen and excellent all-round view with 4-pillar cab

The windscreen also gives you a full view of your overhead implements, like the foliage cutter.

Infotainment system with hands-free system

Digital gooseneck microphone, optimum reception and transmission quality for hands-free talking, elimination of background noise.

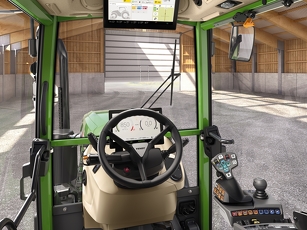

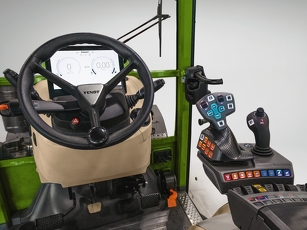

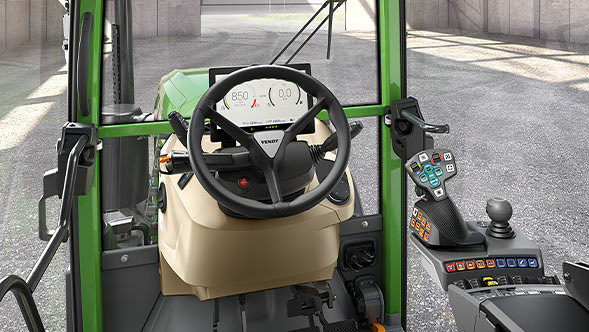

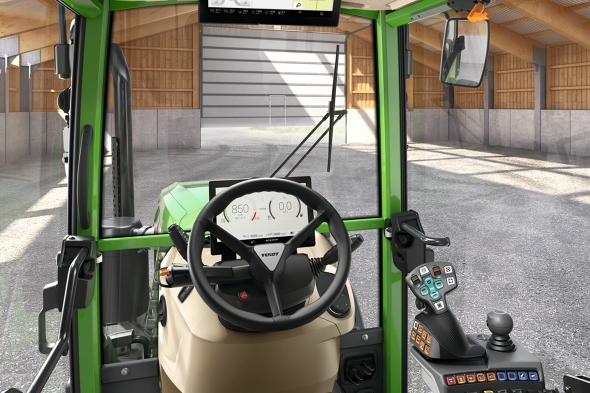

FendtONE driver's workstation: intuitive control with 10" digital dashboard and console

Console with 2-way multifunction joystick. Customise the entire workstation with freely assignable buttons. Combines machine control, communication and documentation with the office in one unit.

Perfect modularity with Power, Profi and Profi+

You can tailor the Fendt 200 Vario perfectly to your particular needs. With 160 options and 70 tyres and tracks ex works.

Three equipment attachment spaces at the front, rear and intermediate axle for efficient combinations

Intermediate axle attachment space with five dual-action valves on the right and two valves on the left for complete control of demanding implement combinations. Large clearance with a width of up to 45 cm to easily guide the equipment into place. Optional: Power Beyond central connection.

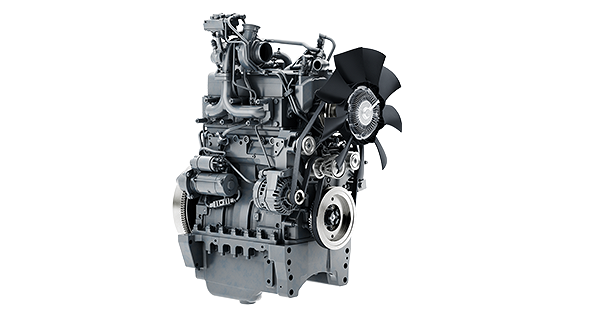

Fendt DynamicPerformance: smart power boost concept

For greater area coverage and higher productivity. Extra power boost of up to 10 PS on the 211 V/F/P Vario at any speed.

Three configurations for improved individualisation: Power, Profi and Profi+

Power

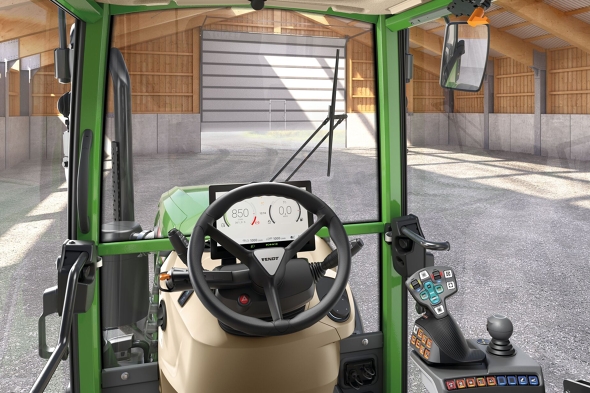

Power Setting 2

Crossgate lever
No linear module (rocker pair)

_{The illustration shows the different lines with optional accessories.}

Profi

You can opt between 2 different settings for each equipment variant.

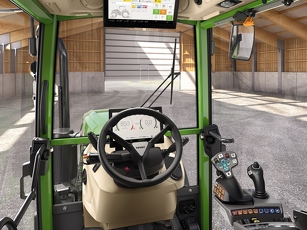

Profi Setting 1

Crossgate lever
2 linear modules (rocker pair) to control hydraulic valves

_{The illustrations show the different lines with optional accessories.}

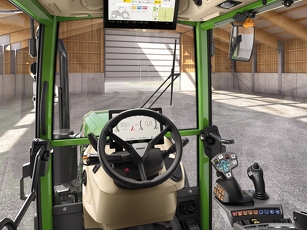

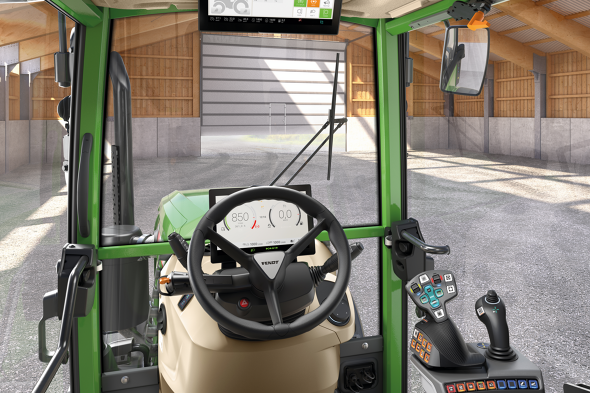

Profi Setting 2

3L Joystick
2 linear modules (rocker pair) to control hydraulic valves
12" terminal

Profi+

You can opt between 2 different settings for each equipment variant.

Profi+ Setting 1

Crossgate lever
2 linear modules (rocker pair) to control hydraulic valves
12'' terminal

_{The illustrations show the different lines with optional accessories.}

Profi+ Setting 2

3L-Joystick
2 linear modules (rocker pair) to control hydraulic valves
12" terminal

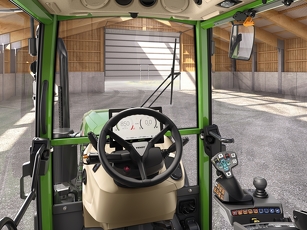

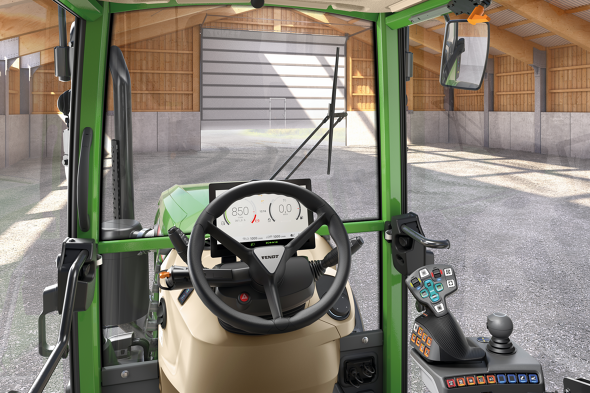

Comfort cab: innovation right where you need it.

Perfectly adjustable workplace

For the best sitting position, the steering wheel and cockpit must be at the right height and tilt angle. Both are quick and easy to finely adjust by foot pedal. Benefits: excellent visibility and no glare in the cockpit; quickly folds away for easy entry and exit.

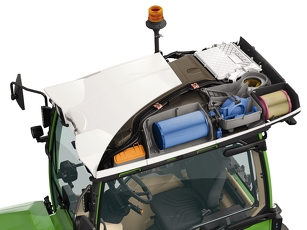

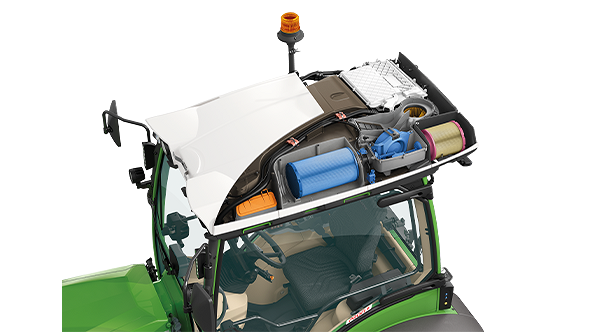

Cab optional with Cat.4 filter protection system

The new cab means the cab air filter system can be converted to protection category 4 ex works. In its basic configuration, it meets all the standards of a cab with protection category 2, but the filter system can also be upgraded to protection category 4 in accordance with EU standard EN15695, with protection against dust, liquid fertilisers and their vapours. The Fendt 200 V/F/P Vario meets all requirements for plant protection use and keeps the driver safe. Once the work is complete, the filter system can be easily converted via the terminal.

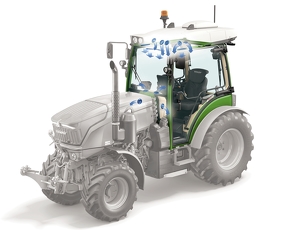

Climate control

The sophisticated ventilation and air conditioning concept provides excellent air flow via the steering tower and the cab roof. There are eight air nozzles to distribute the air just where you want it in the cab. For winter service work, choose the optional additional heating system with four extra outlets in the footwell.

Perfect control of any highlevel hydraulic combination.

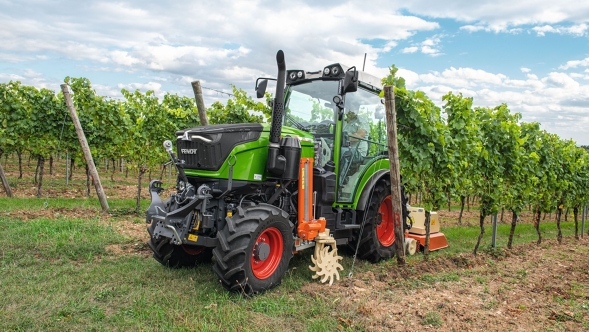

Intermediate axle attachment with high-performance hydraulic equipment and Power Beyond connection

Thanks to the large cavity width of up to 45 cm, you can clearly guide your implements to the intermediate-axle attachment. With five double-acting valves on the right and two valves on the left, together with return flow and cross connection, you can perfectly control any highlevel hydraulic combinations. The central Power Beyond connector easily supplies oil to power-demanding implements. This means you can use three attachments in time and cost-saving work combinations.

Benefit: The highest impact and soil protection as well as high economic efficiency.

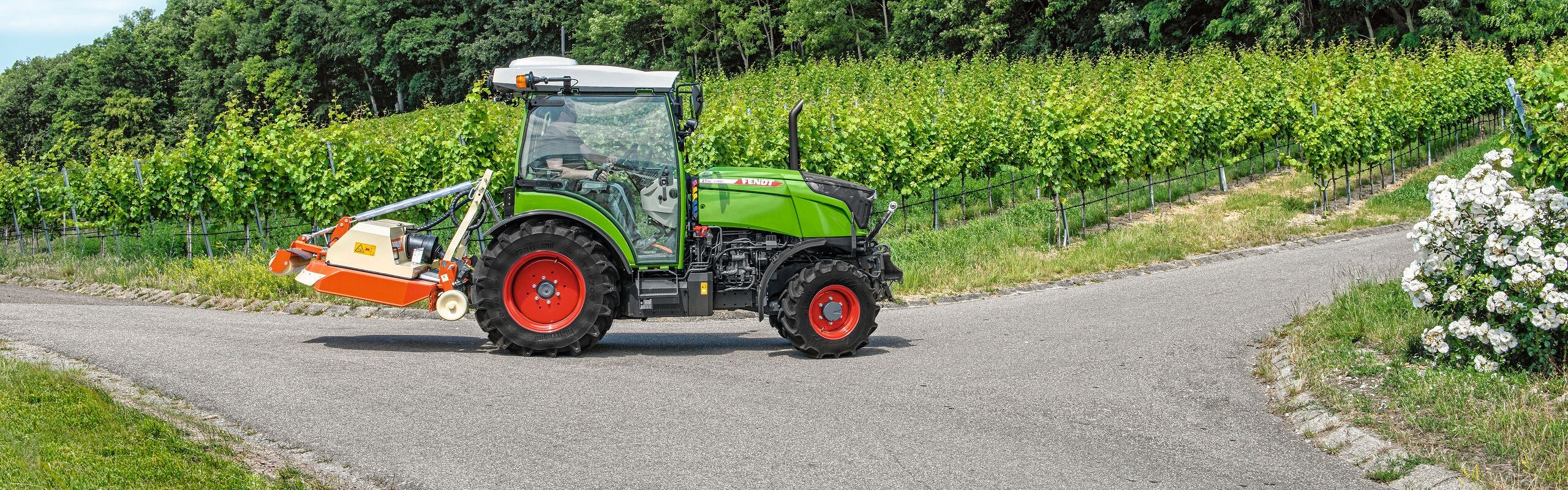

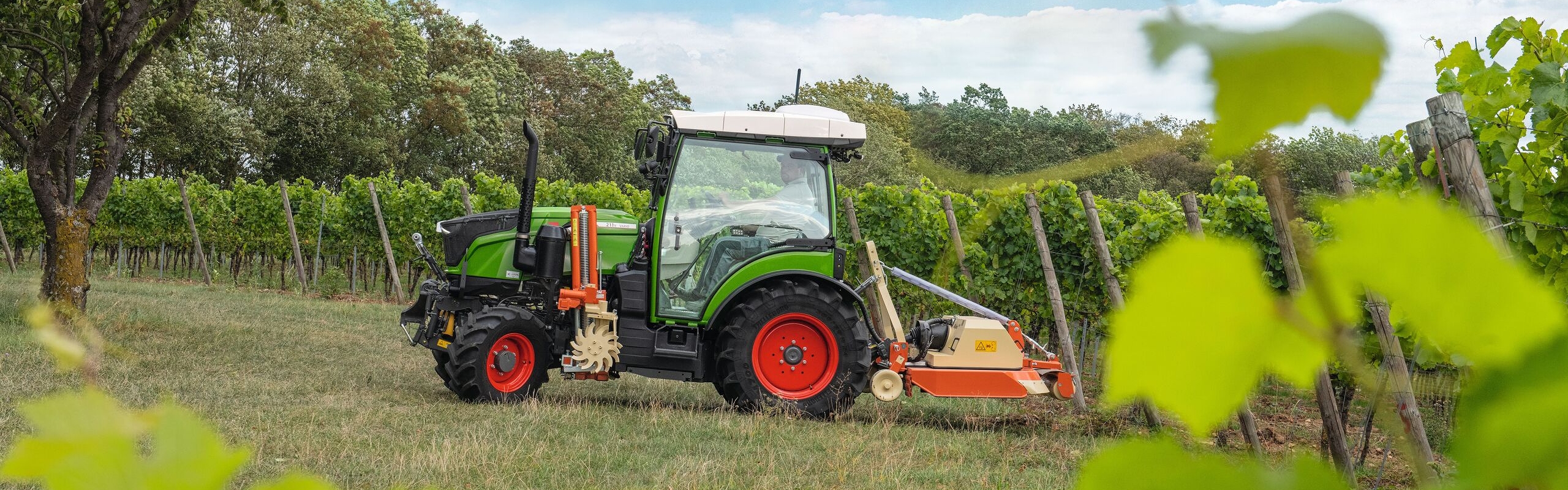

Rear power lift with load-relief (V/F).

The rear attachment - e.g. a mulcher – follows the ground contour precisely at the set ground pressure. On uneven terrain, the implement is maintained at the same working height, for perfect results. Great when working on the overhang from slope to level ground (and vice versa). The weight transfer from the implement to the vehicle on the slope gives even greater traction and climbing capability.

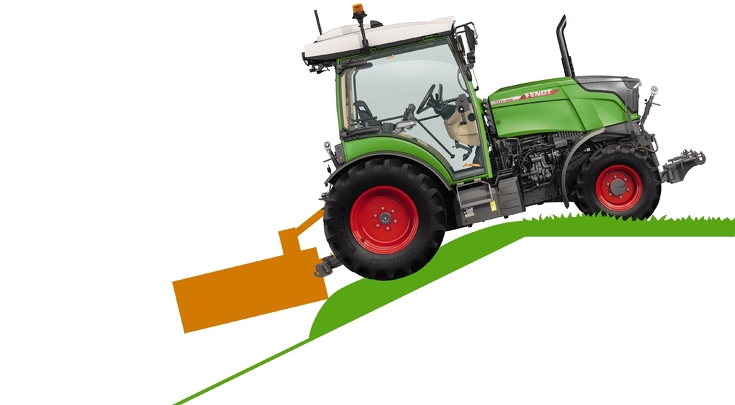

Rear power lift with load-relief

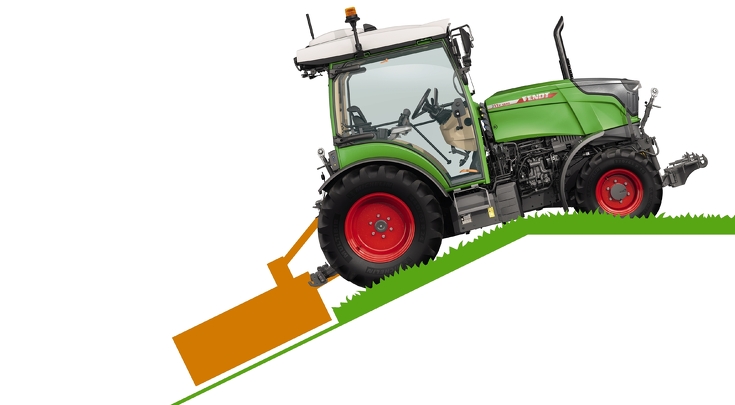

Rear power lift without load-relief

Other key features.

Fendt swing power lift

The exclusive Fendt swing power lift adapts to the terrain fully hydraulically. By steplessly adjusting the tilt and horizontal shift of the power lift from the driver's seat, our Fendt 200 V/F Vario tractors offer enormous advantages when working with cultivators, cutters or forklifts.

Practical advantages of tilt adjustment: Using two hydraulic cylinders (on request), the rear unit can continuously compensate for the slope. Practical advantages of side adjustment: The implement is guided exactly in the row via two hydraulic cylinders that lock the lower links.

Fendt swing power lift
The exclusive Fendt swing power lift adapts to the terrain fully hydraulically. By steplessly adjusting the tilt and horizontal shift of the power lift from the driver's seat, our Fendt 200 V/F Vario tractors offer enormous advantages when working with cultivators, cutters or forklifts.

Practical advantages of tilt adjustment: Using two hydraulic cylinders (on request), the rear unit can continuously compensate for the slope. Practical advantages of side adjustment: The implement is guided exactly in the row via two hydraulic cylinders that lock the lower links.

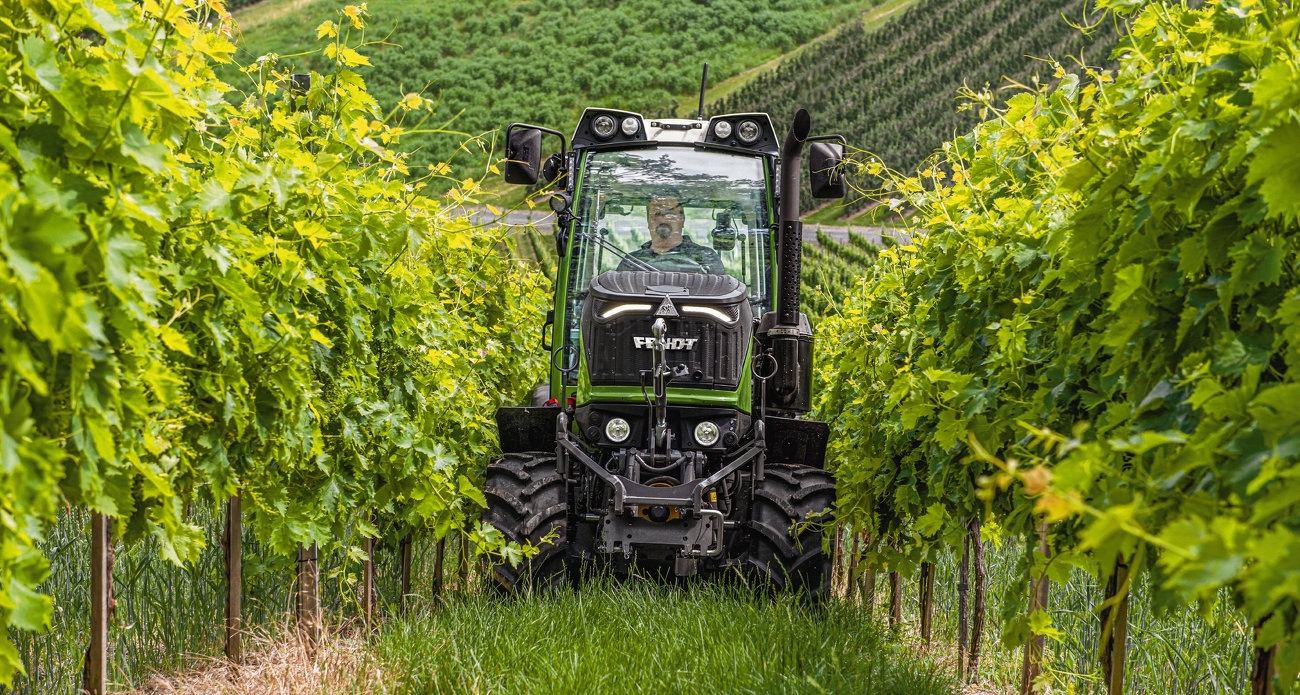

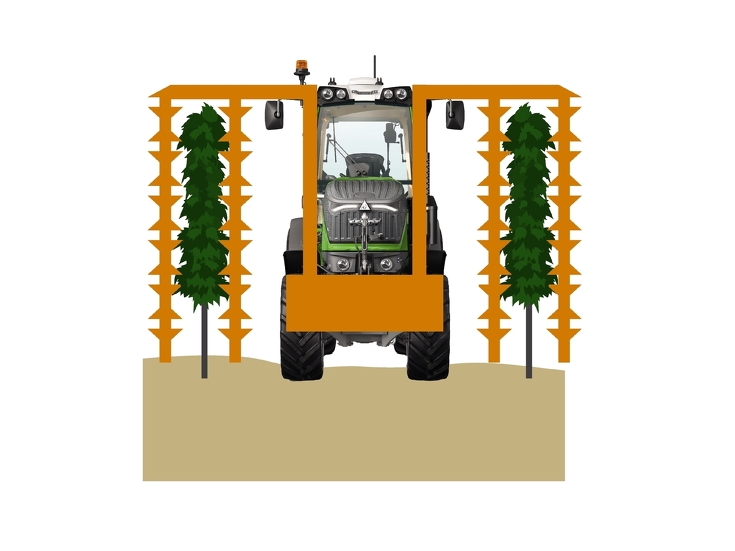

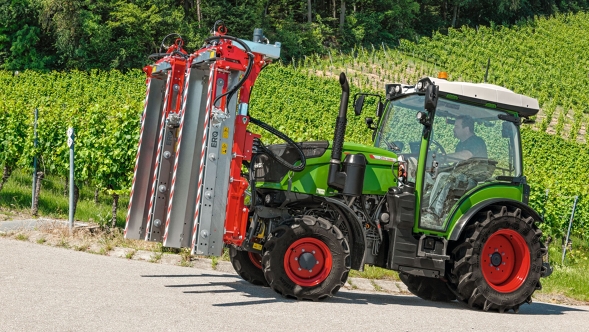

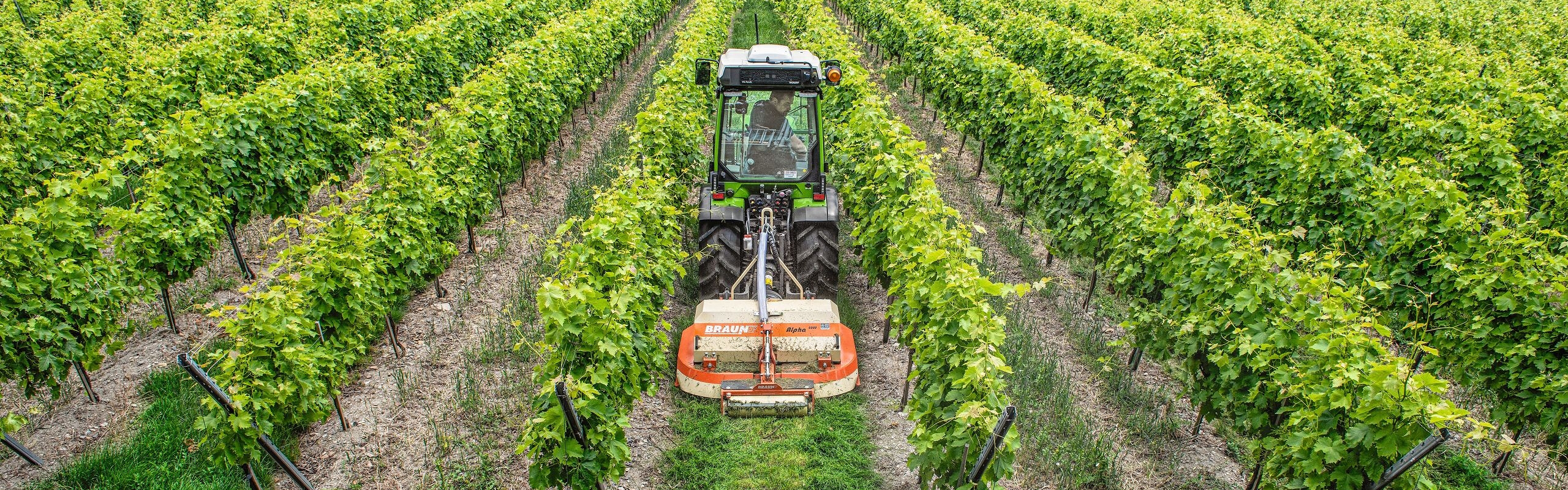

Suspension when working with a foliage cutter
For foliage cutting, the self-levelling suspension with anti-roll control always provides sensitive cushioning on uneven ground. The working height and horizontal tilt are kept the same.
Powerful hydraulics with up to seven valves and Power Beyond
Depending on the configuration, the cleverly designed hydraulics system on the Fendt 200 V/F/P Vario offers up to seven control valves, two control circuits, independently adjustable flow rates, Power Beyond, a prioritisation function and free assignment. Make your settings easily on the dashboard or the optional 12" terminal.
Headland management made easy with Fendt TI
This smart assist is a real benefit for repeat processes, especially headlands. Our Fendt TI headland management system saves you up to 1,920 daily hand movements in 160 turns. Both manually at a standstill and while driving, you can record all the functions as a sequence and save them in the terminal. Later, all it takes is a touch of a button to activate the automated sequences when entering and coming out of the headland. Work without having to reposition. 5 triggers (route, time, front power lift, rear power lift and manual) and 13 function groups help you control all the key functions. Shift smoothly between the individual sequence steps.

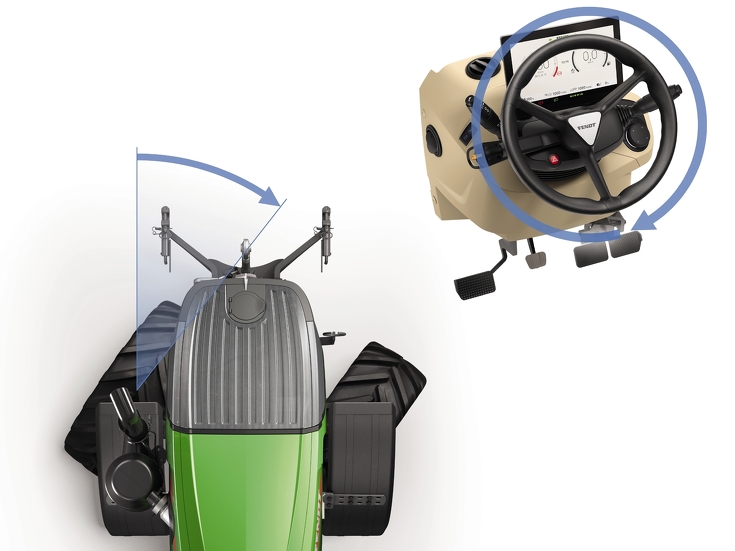

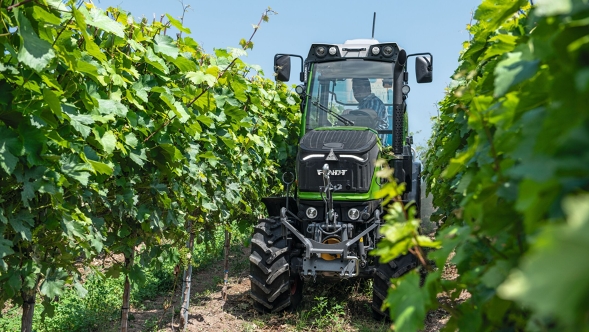

Fast turning with FendtActive steering
At the headland you benefit from FendtActive steering, reaching a full wheel turn with just one steering wheel rotation. Up to 8 km/h the superimposed steering system is unrestricted, from 8 to 18 km/h the superimposition effect is linear.

FendtONE – seamlessly connecting office and machine.

Consistent and intuitive operating philosophy

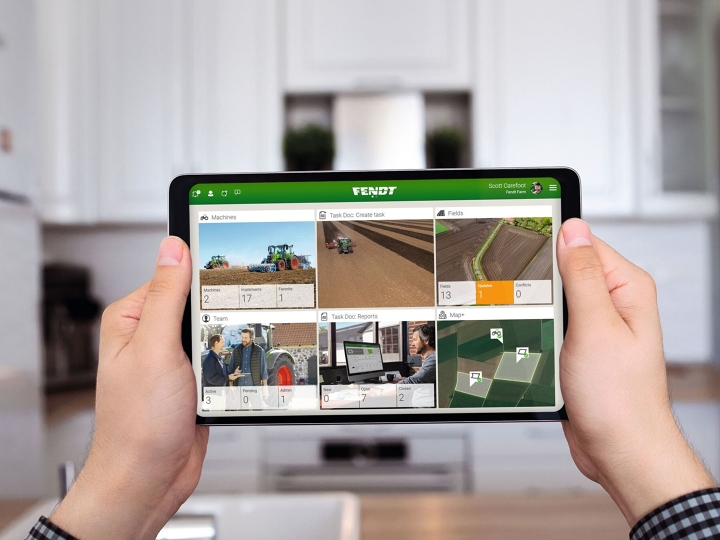

FendtONE uses the terminal to combine the familiar operation of the tractor with planning/control tasks that would usually take place in the office. You can schedule field data and orders on your computer or smart device wherever you are, and send them to your machine. The view from the driver's cab and online (from the office or on the move) is always the same.

FIND OUT MORE

Fendt Smart Farming - Module

Guidance system

Equips the tractor for lane guidance and the Fendt Guide application.

Optional:

Choice of different receivers (NovAtel or Trimble)
Fendt Contour Assistant
Fendt TI Headland

MORE ABOUT GUIDANCE SYSTEM

Agronomy

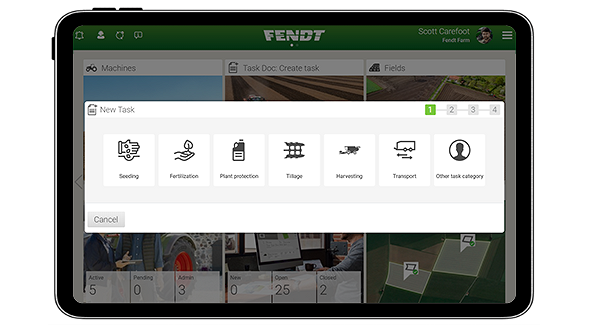

Includes the Fendt Task Doc app. Create orders and follow-up reports on the machine. Full overview of completed jobs.

Optional:

Next Machine Management

MORE ABOUT AGRONOMY

Machine control

Easy and intuitive control of ISOBUS attachments via ISOBUS 200 connections in the cab and socket in the rear.

Optional:

Fendt Section Control (SC)
Fendt VariableRateControl (VRC)
Fendt Implement Management (TIM)

MORE ABOUT MACHINE CONTROL

Telemetry

For the best analysis and optional fleet management. Use Fendt Connect to display and store data such as machine position, fuel consumption, speed and error codes. Storage to evaluate work processes and machine condition. Data sent over the mobile network

MORE ABOUT TELEMETRY

Get a quote

Get a Quote

Please complete the form below, by clicking on the button, with all your details and we'll get an expert to phone you and discuss some options.

GET A QUOTE

The next step to your Fendt 200 V/F/P Vario.
