For those who prefer precision – Guidance from Fendt.

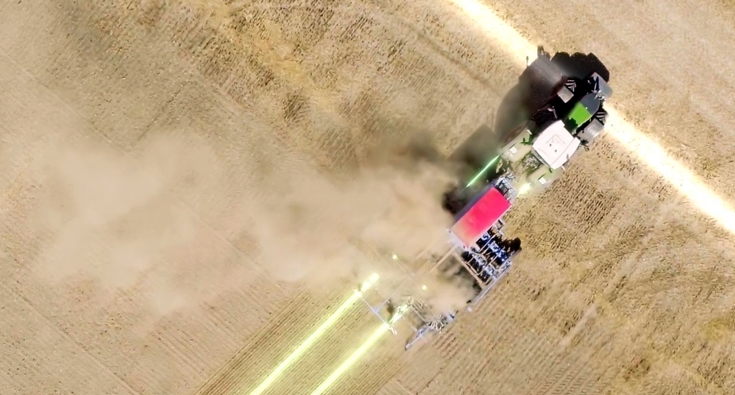

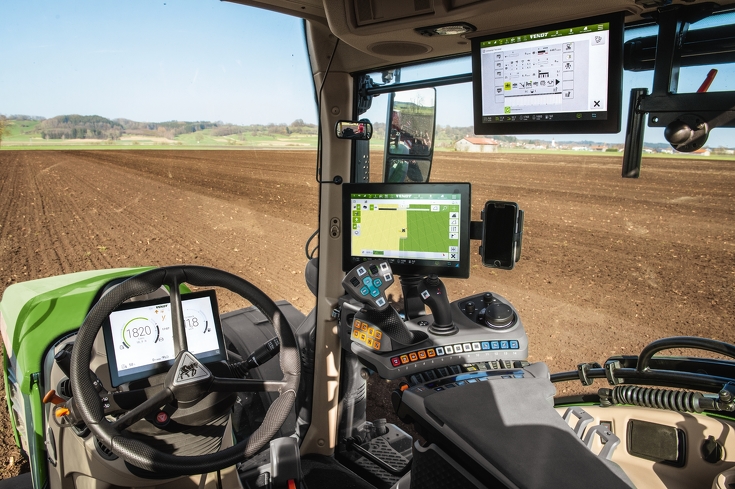

After a long day working on the field, still no end in sight? With Fendt's Guidance, you work with the highest precision at all times – even at night and in poor visibility.


Precision and load-relief with guidance from Fendt	Fendt Guide
+ enhanced guidance for inside the field	Fendt Contour Assistant
+ complete package for professional results at the headland	Fendt TI Headland

Your benefits with VarioGuide / Fendt Guide:

Makes the driver's life easier: You can fully concentrate on the equipment and easily monitor the processed fields

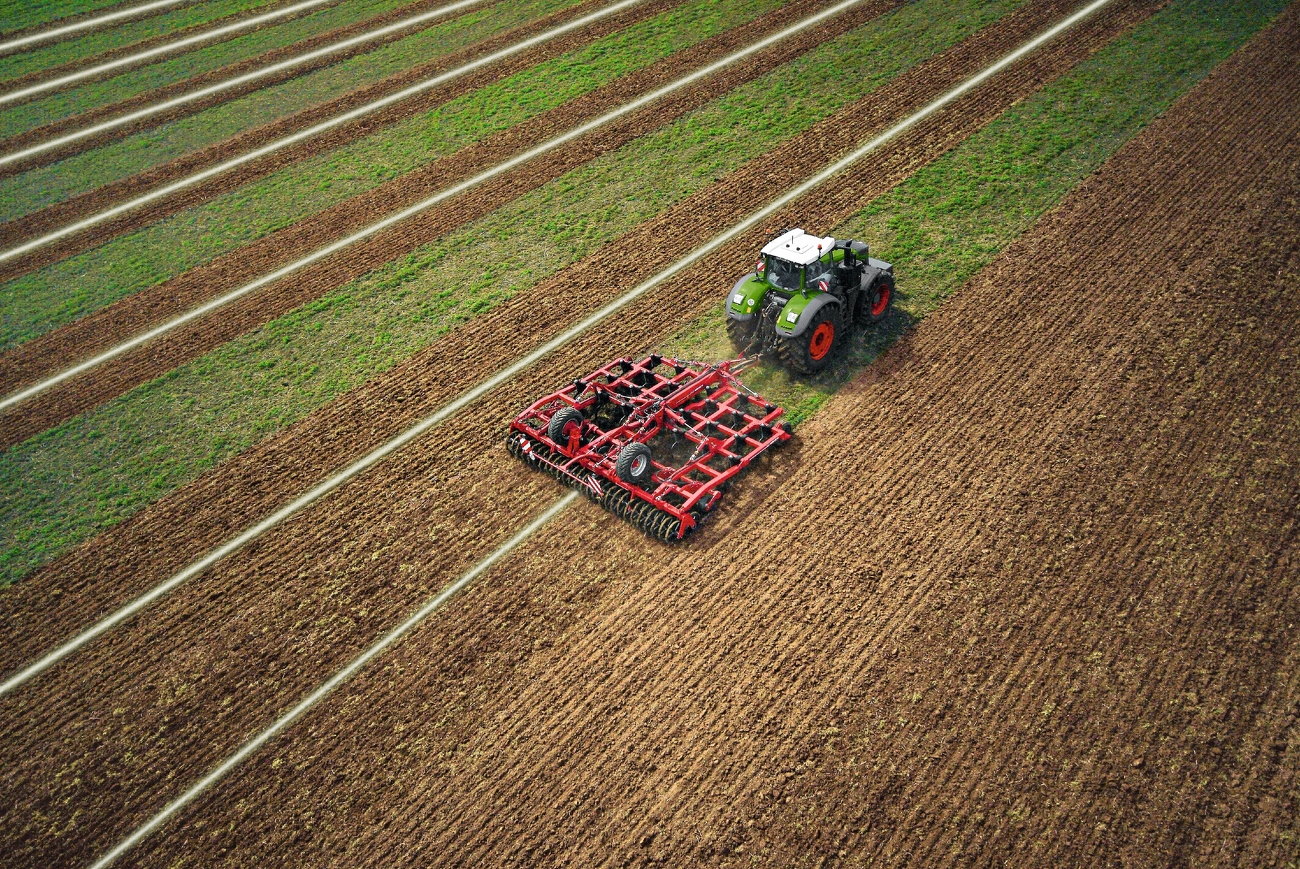

Savings potential: Greater area coverage by taking full advantage of the working width, while minimizing unwanted overlaps and reducing the use of resources
Sustainable land management: minimize soil compaction by reducing overlaps and optimizing turning processes

Choose the right receiver for your needs.

Equip your guidance system with either a NovAtel or Trimble satellite receiver. Depending on your work and individual requirements, you can choose from correction signals with different accuracy levels. The functionality of VarioGuide / Fendt Guide is the same regardless of who is using it.

Receivers – the choice is yours.

NovAtel®-Receiver

NovAtel®-Standard:

Correction signal: SBAS (EGNOS & WAAS) ± 15-30 cm track-to-track accuracy; ± 150 cm repeatable accuracy

NovAtel® – scalable correction signals:

Correction signal: TerraStar-L ± 15 cm track-to-track accuracy; ± 50 cm repeatable accuracy
Correction signal: TerraStar-C Pro ± 2 cm track-to-track accuracy; ± 3 cm repeatable accuracy

RTK:

Correction signal: RTK ± 2,5 cm track-to-track accuracy; ± 2,5 cm repeatable accuracy

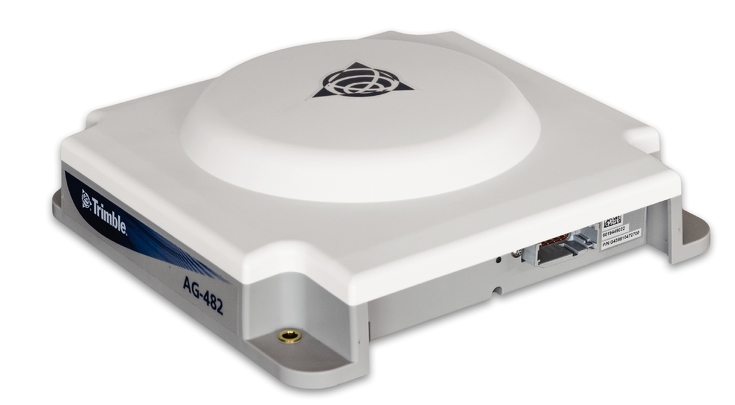

Trimble®-Receiver

Trimble®-Standard:

Correction signal: SBAS (EGNOS & WAAS) ± 15-30 cm track-to-track accuracy; ± 150 cm repeatable accuracy

Trimble® – scalable correction signals:

Correction signal: RangePoint® RTX ± 15 cm track-to-track accuracy; ± 50 cm repeatable accuracy
Correction signal: CenterPoint® RTX and CenterPoint® RTX Fast ± 2,5 cm track-to-track accuracy; ± 2,5 cm repeatable accuracy

RTK:

Correction signal: RTK ± 2,5 cm track-to-track accuracy; ± 2,5 cm repeatable accuracy

Making lane-keeping even easier – VarioGuide / Fendt Contour Assistant.

Efficient and easy fieldwork

The VarioGuide / Fendt Guide Contour Assistant is a useful function package that will make your fieldwork even more efficient and easier. The Contour Assistant adds the wayline types Contour Segments, Single Contour and Single Contour Segments to your guidance system.

Saves time and money – Contour Segments

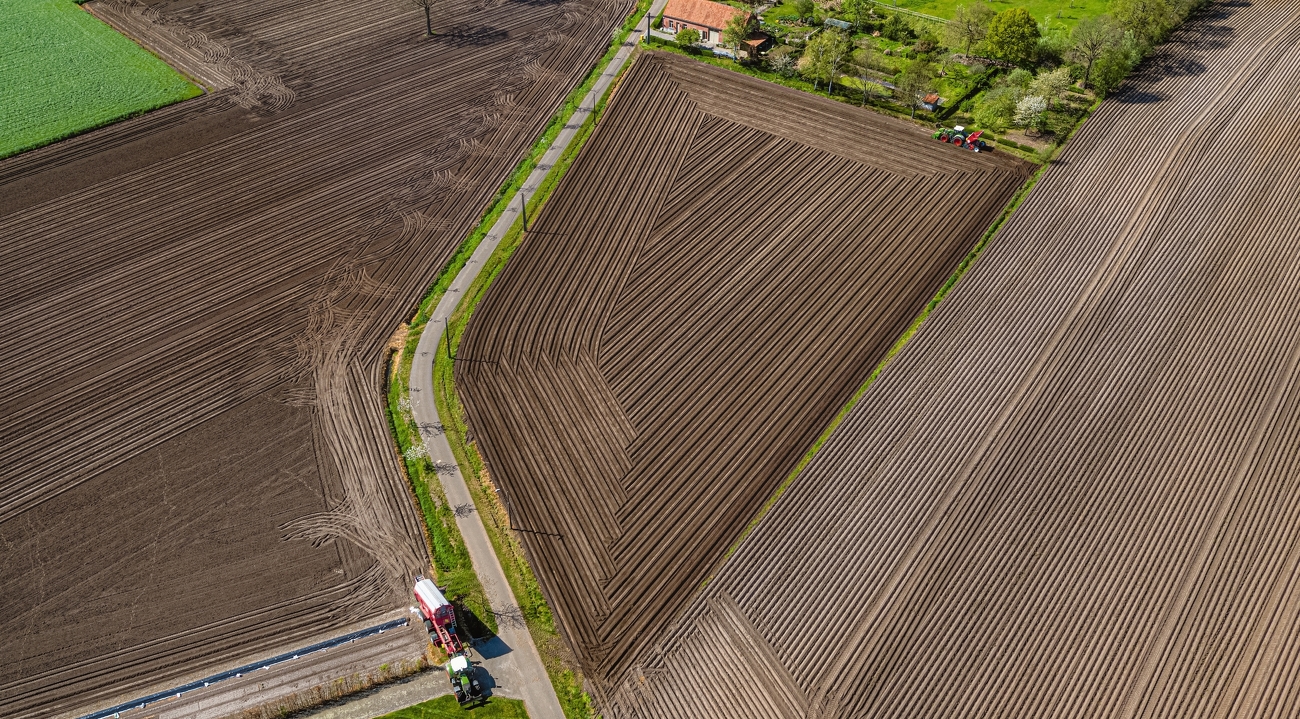

The new wayline type Contour Segments minimizes the complexity of the work and is a valuable tool for overcoming several obstacles in practice.

Time-saving and convenient: quick and easy wayline mapping, automatic creation of contour segments based on the field boundary, consistent use of the steering system even at the headland
Data retention and processing: option to convert previously recorded (over many years) waylines into contour segments

For stress-free maintenance work – Single Track

Single Track mode allows you to record a track with a free contour.

Clear benefits even for crops that were not sown with the steering system
Easily record any lane (i.e., driving lane), which can be driven down exactly the same line

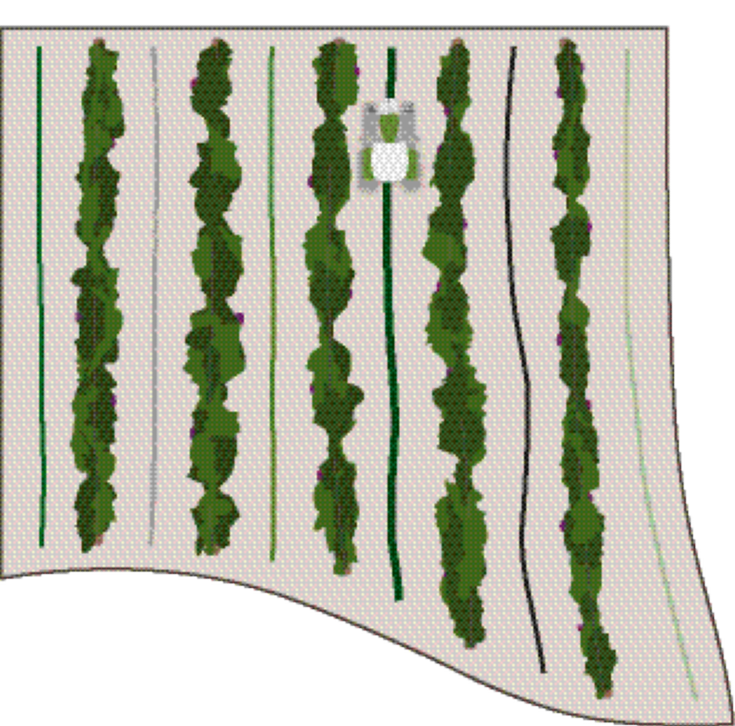

For individuality - Single Contour Segments

In contrast to contour segments, several individual single tracks can be created without duplication
This makes this function particularly suitable for perennial or permanent crops

Own the headland – Variotronic^TI / Fendt TI and Fendt TI Headland.

Easily store repeat processes and activate them at the right time

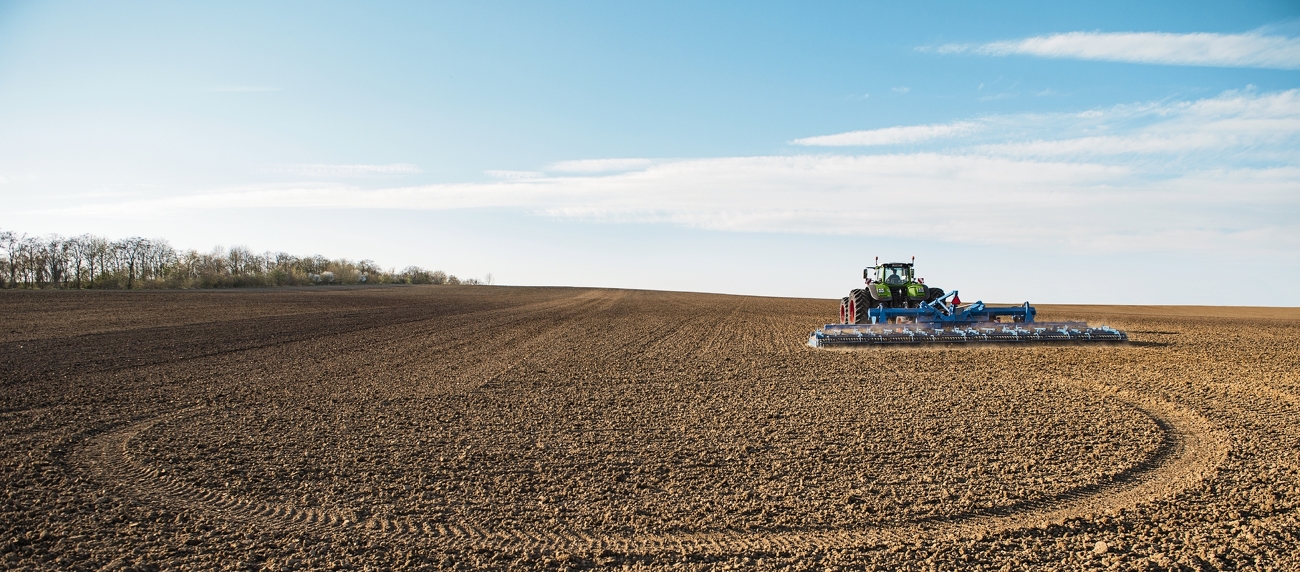

For a clean headland, you need to make several hand movements in the right place at the right time – not that easy while concentrating on the actual work. Wouldn't it be great if you could save repeat processes and activate them when you want? Now you can, saving time and allowing you to work stress-free and error-free.

Relief at the push of a button – Variotronic^TI / Fendt TI

With Variotronic^TI / Fendt TI, the driver can conveniently create the best operating sequence manually at a standstill or record and save it while driving. The defined sequence of work steps is activated at the push of a button. Leaving you to give the actual field work your full and undivided attention.

Get even more from your guidance system. Fendt TI Headland

Fendt TI Headland is the complete package for professional results at the headland. It consists of the two products Variotronic^TIautomatic / Fendt TI Auto and Variotronic^TI Turn Assistant.

Variotronic^TI automatic / Fendt TI Auto

Save and automatically trigger a sequence of work steps at the headland

Variotronic^TI Turn Assistant

Automatic turning at the headland (initially available for the current driver's workstation)

In the right place at the right time – Variotronic^TI automatic / Fendt TI Auto

With Variotronic^TI automatic / Fendt TI Auto, not only can you enjoy the advantages of automatic sequencing, but also use your position data as guidance. In combination with VarioGuide / Fendt Guide, individual sequences (such as lowering the rear hydraulics) are automatically activated by the position determined by the lane guidance system on a headland – you don't have to lift a finger. How to use your steering system effectively even at the headland: Always keep the same distance to the field boundary.

Automated turning: Variotronic^TI Turn Assistant

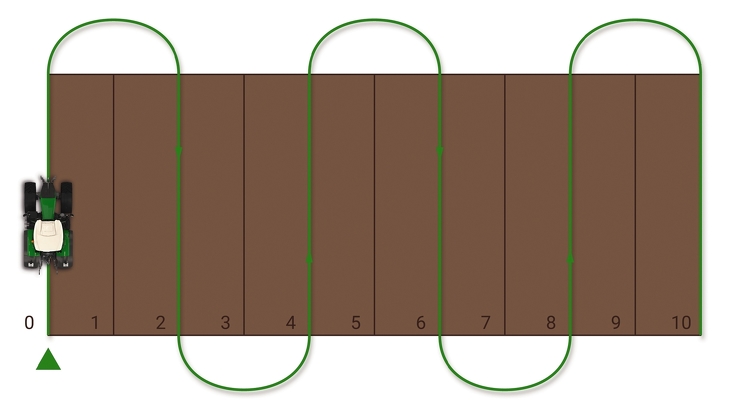

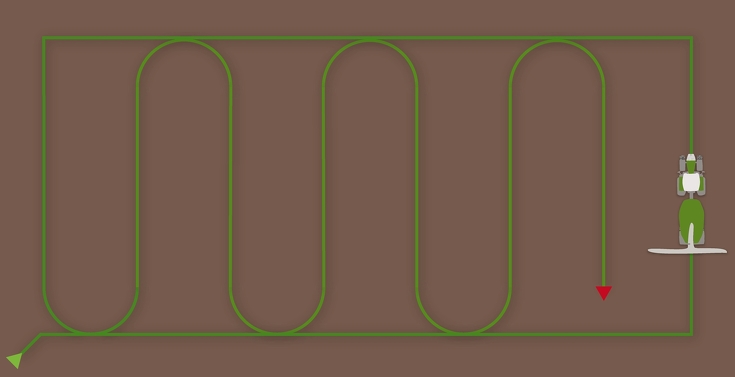

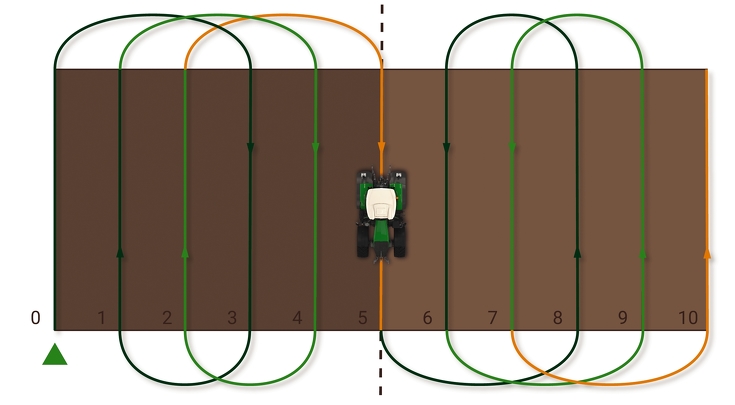

The Variotronic^TI Turn Assistant adds the automatic turning sequence to the Variotronic^TI automatic / Fendt TI Auto headland management system included Fendt TI Headland. You select which contact lane you want to start next and can process the inside of the field either in U-Turn mode or Part Field mode. Turn Assistant makes your work as easy as possible, with precision and efficiency. You also save resources and time spent on turning, while protecting the soil with the perfect turning actions. The automatic turning function is initially available with the current driver's workstation.
