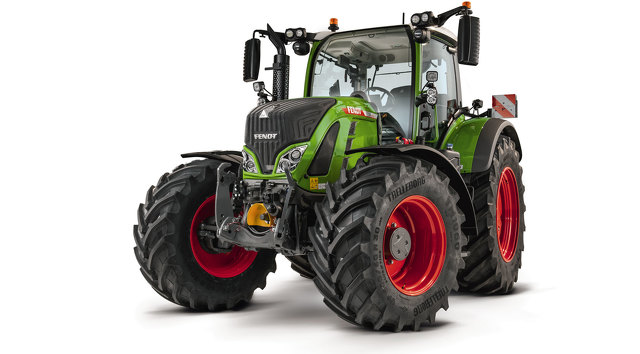

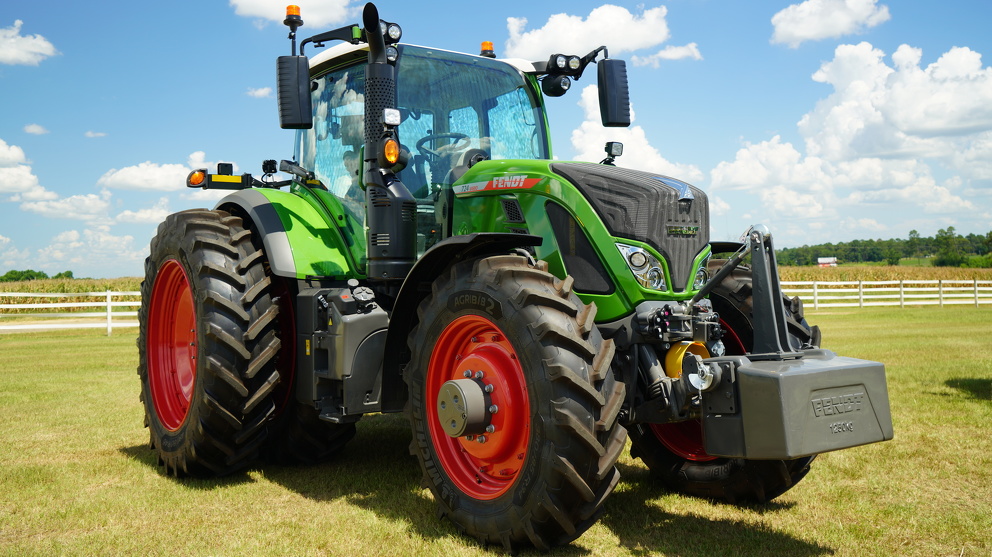

Become a perfectionist. With the Fendt 700 Vario Gen6.

The adaptable Fendt 700, ranging from 144 to 237 HP, is a powerful partner for all kinds of work—from rear- or front-mounted hay tool applications, to row crop work, to tillage or loader work, this is a tractor that won’t sit still very long. A new driver’s workstation sets standards in terms of functionality, customizing, and ergonomics. The new FendtONE operating system provides a highly customized and ergonomic work station for great control and convenience.

BROCHURE

	kW	hp
718 Vario	133	181
720 Vario	148	201
722 Vario	163	222
724 Vario	174	237

^{Rated power ECE R 120}

Fendt 700 Vario Spotlights. Making the best even better.

Fendt spotlights are unique innovations that make your work more productive, profitable, and easier every day. Learn more below.

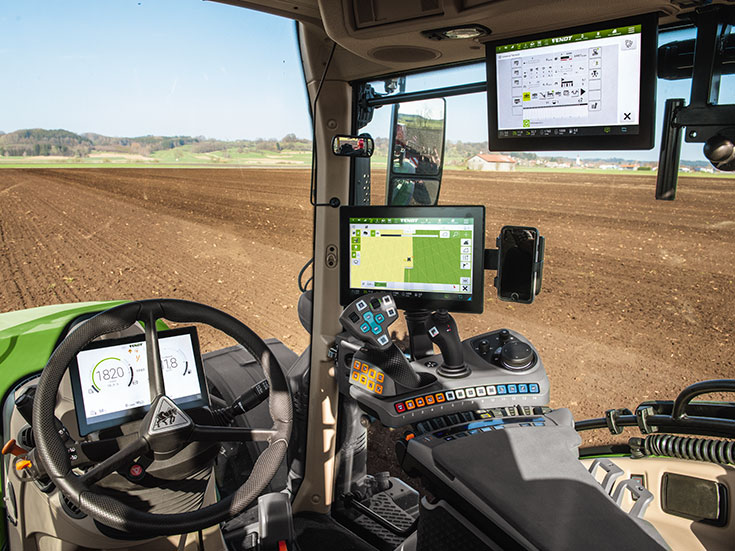

Cab with FendtONE driver's workstation

Elevate your operating experience with the new FendtONE operator environment. Customization, convenience, and ultimate control are at your fingertips.

Learn More about FendtONE

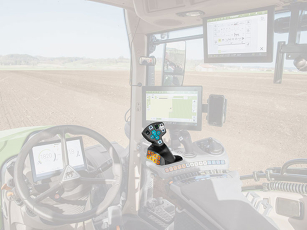

Multifunction joystick

With its ergonomic shape and position on the armrest, you can hold the all-new multifunction joystick in a relaxed position all day long.
It has all the elements you are familiar with, like the 2 auxiliary control units and headland management. The control for the hydraulic valves is proportional.
The joystick also has freely assignable buttons to give the driver even more flexibility.

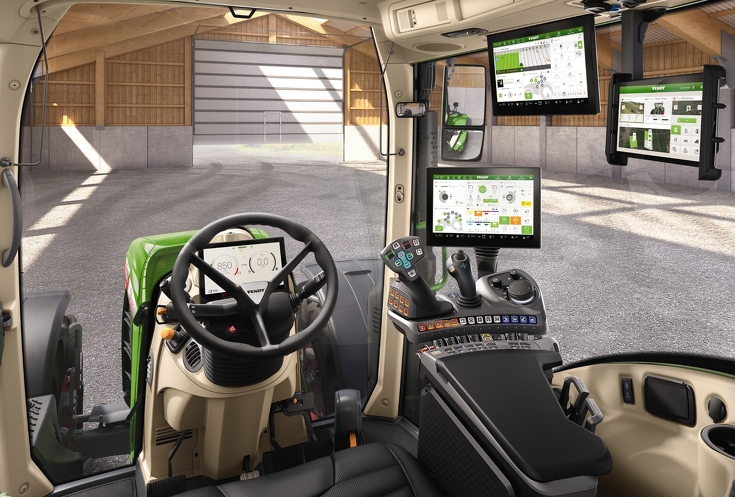

A workplace that feels like home.

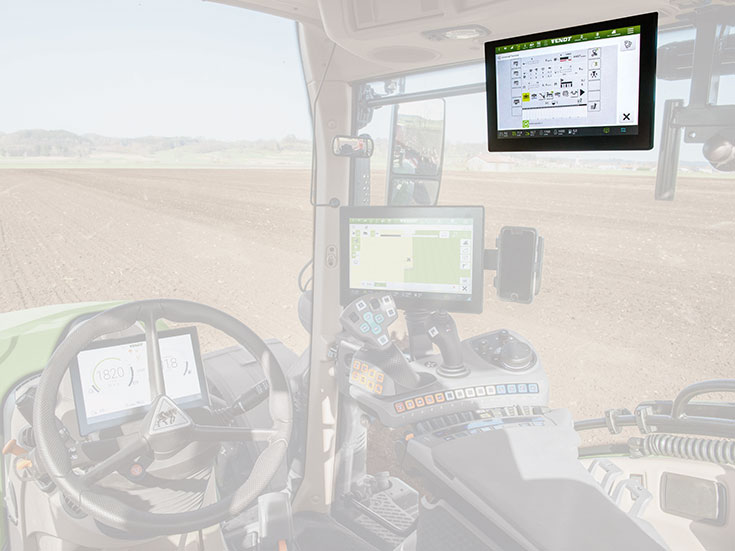

- Display options – 10” dashboard; 12” armrest; 12” roof terminal
- Customizable buttons are ready to assigned to suit your work and have your most common actions right where you need them
- Infotainment package with sound experience
- Fendt Connect telemetry system
- Crossgate Lever / 3L Joystick
- Multi-function joystick with assignable buttons
- Push dial control

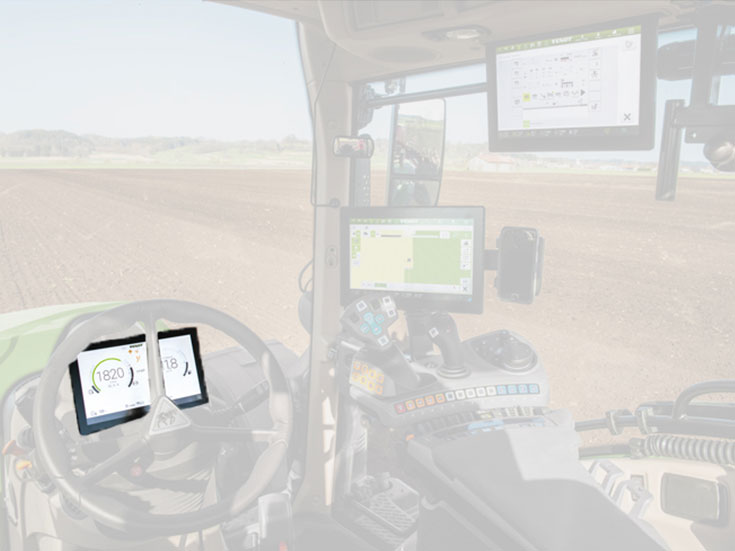

10" Digital Dashboard
The entirely new 10” digital dashboard provides you with a crystal clear view of primary machine data points, including ground speed, engine RPM’s, fluid levels, and more.

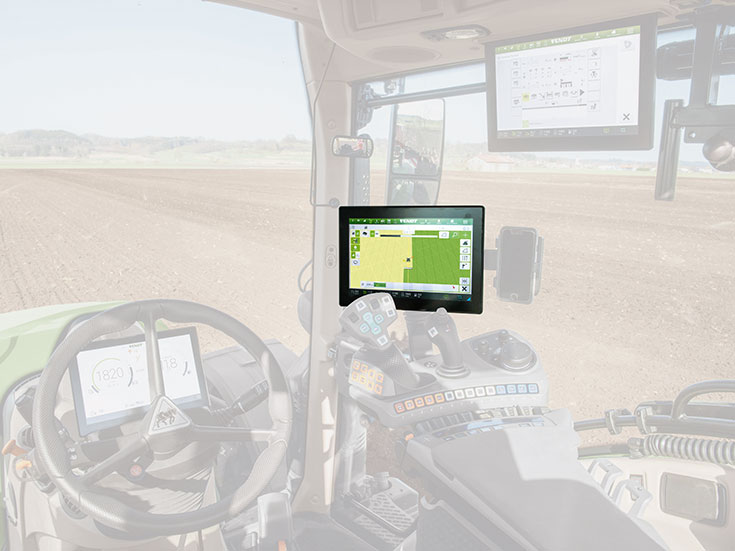

12" Terminal
- Up to 6 freely configurable screens are shown on the standard 12" armrest terminal.
- Flat menu structure in the terminal so you can easily find features
- Controls are customizable
12" Roof terminal
- The 12" roof terminal retracts half way into the roof liner.
- Applications like the air conditioning or the Infotainment system are still shown on the lower, visible half of the terminal.
- When fully open, provides additional display space for selectable tractor data.

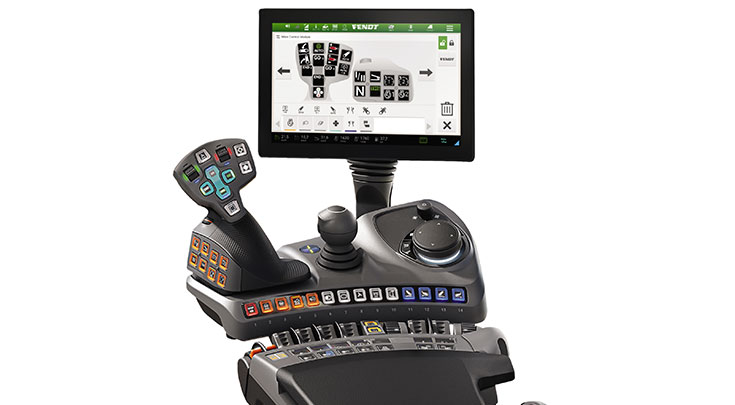

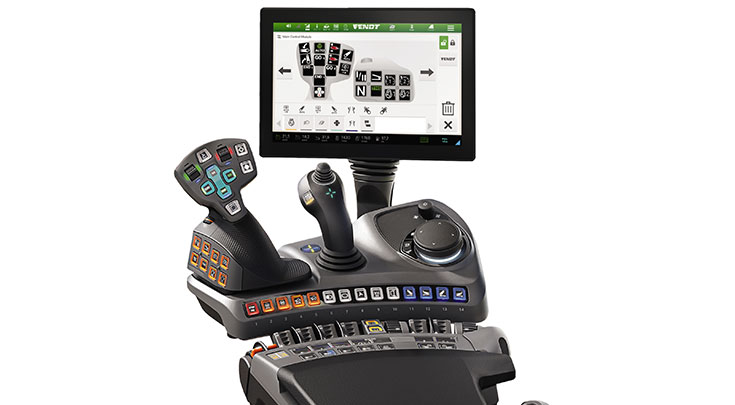

Crossgate lever / 3L joystick
- There is a crossgate lever or 3L joystick to control the 3rd and 4th hydraulic control units as well as the front loader, depending on the configuration.
- Together with a Fendt front loader that has a third valve, you can use the 3L joystick to control an unprecedented 3 functions at once.
- With the additional reverse drive button, changing direction is a smooth and comfortable experience.
- Provides up to 27 functions split over up to 3 control levels. ISOBUS implements are also compatible.
Multifunction joystick
- With its ergonomic shape and position on the armrest, you can hold the all-new multifunction joystick in a relaxed position all day long.
- It has all the elements you are familiar with, like the 2 auxiliary control units and headland management. The control for the hydraulic valves is proportional.
- The joystick also has freely assignable buttons to give the driver even more flexibility.

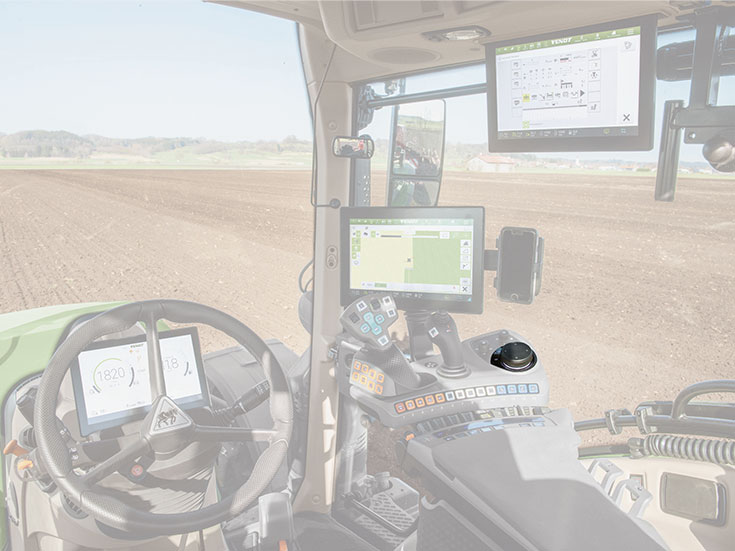

Pushdial
- Use the pushdial to manually use the terminals instead of using touch control.
- You can also switch between the terminals.
- There are hotkeys for quick navigation.

Engine, Gearbox & Front loader

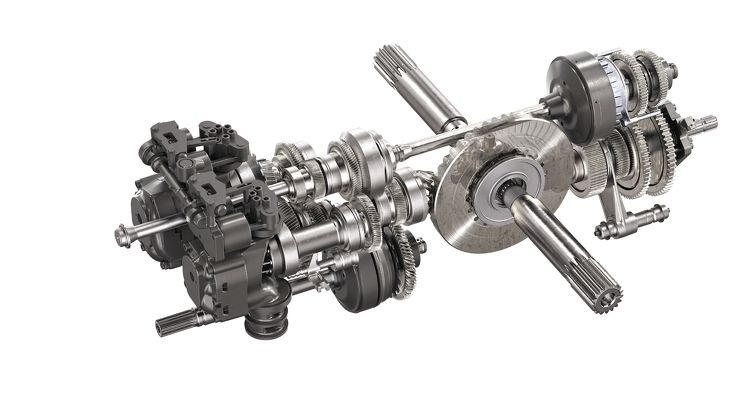

Unlimited speed control with the proven Vario CVT

The Fendt Vario CVT transmission is a hydrostatic mechanical power split drive. With increasing speed, the share of the mechanical power transmitted through the planetary set increases. The hydrostats can be swung 45 degrees and have a high operating pressure of max. 7,977 psi (550 bar) providing seamless acceleration from 60 ft. per hour to 33 MPH.

The transmission can be operated in either joystick or pedal modes dependent on operator preference and application.

Front power lift with load-relief control

With this intuitive power lift with position and load relief control, you can transfer some of the implement weight to the front axle. Fine-tune the degree of load relief with a special double-acting front power lift valve. This ensures both the safe steering of the tractor and that the front-mounted implement only applies the pressure it needs for the work it is doing.

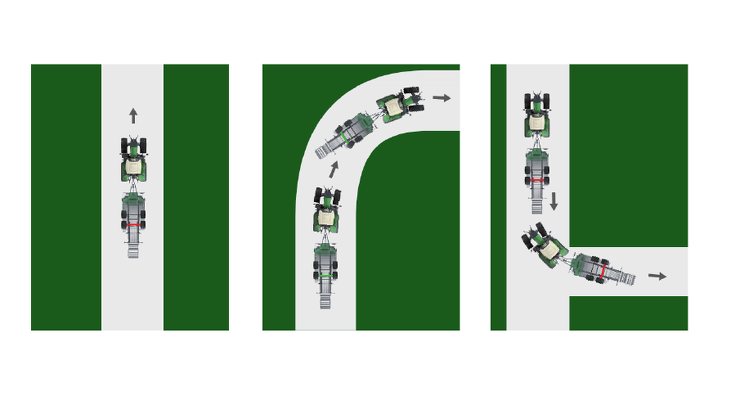

Automatic steering axle lock

The optional automatic steering axle lock automatically unlocks the Steering axle at a predefined speed on trailers with self-steering axles. On straight stretches, the rigid self-steering axle ensures stable handling. Operators do not need to lock the self-steering axle manually outside of the preselected speed range and when reversing.

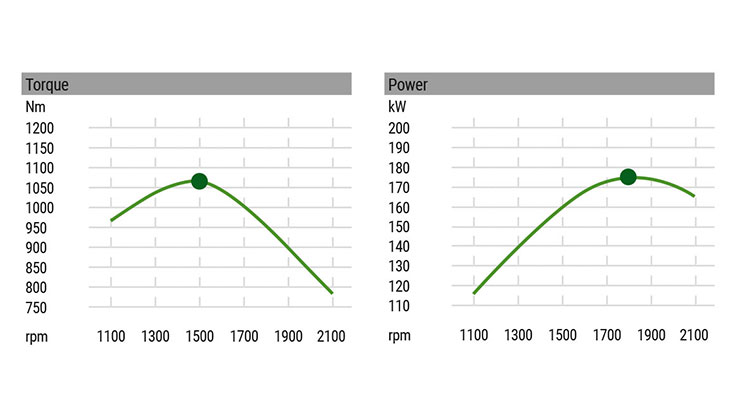

Engine characteristics

The 6-liter 6-cylinder engine delivers 144 to 237 HP. The high end model, the Fendt 724 Vario, reaches is maximum torque of 790 ft. lbs (1,072 Nm) at just 1,500 RPM. That saves fuel and maintains low noise levels.

FendtActive superimposed steering system

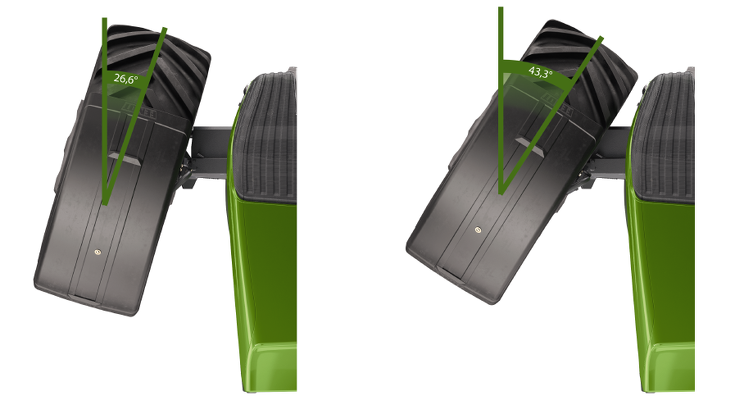

Faster steering with the FendtActive steering system: Just one turn of the steering wheel reaches a full steering angle. FendtActive is a real bonus in comfort, especially for front loader work, but also on headlands and in compact yards.

Fendt Stability Control (FSC)

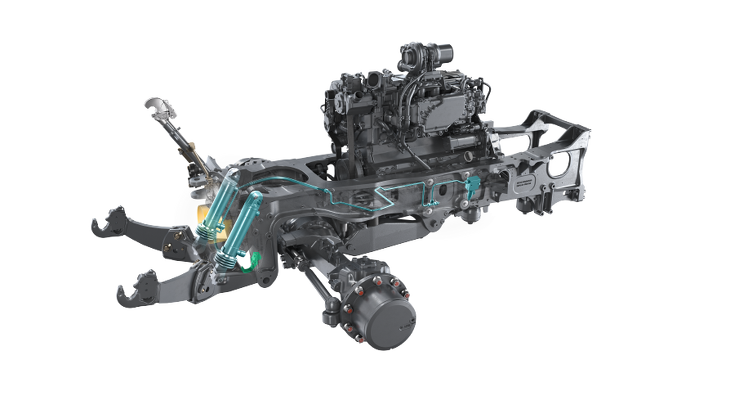

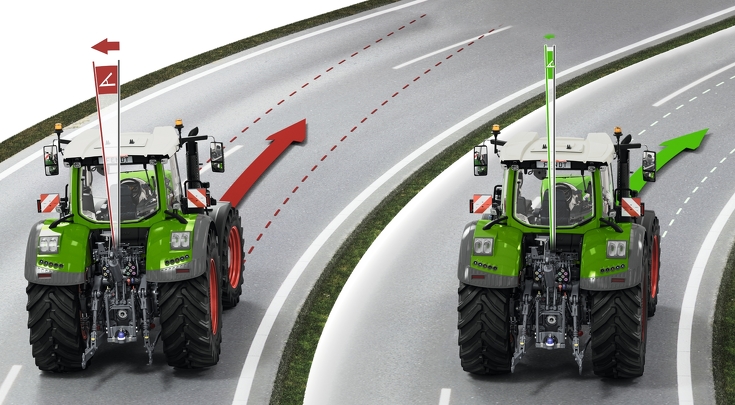

Fendt Stability Control (FSC) takes steering precision, driving stability and braking control to completely new levels. At speeds above 12.4 mph (20 km/h), FSC locks the front axle suspension cylinders and dampens side-to-side movement to ensure maximum stability during transport. When speeds drop below the FSC threshold, the system automatically disengages to ensure maximum ground contact with all four tires.

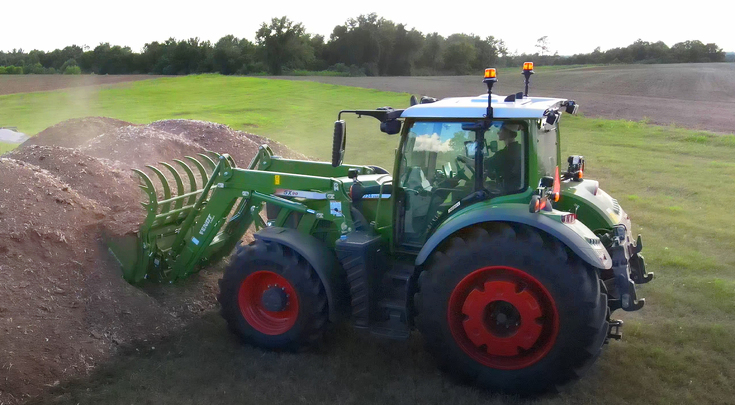

Intelligence that extends beyond the tractor

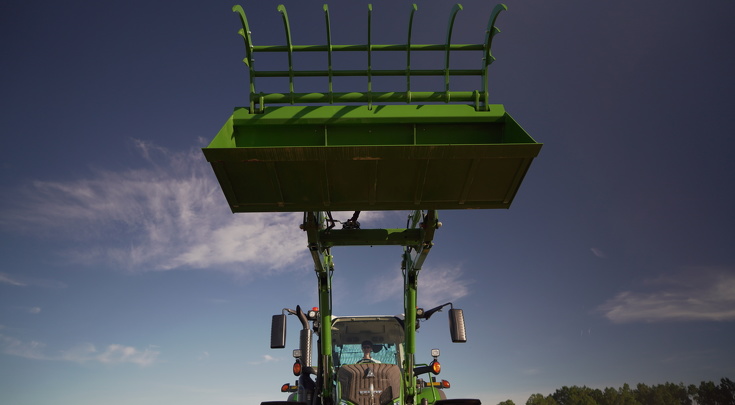

The optional CargoProfi loader takes loader operation and comfort to a whole new level with dampening suspension, memory settings, and an integrated scale feature.

Third Front loader valve for more options

With the third valve for Fendt Cargo front loaders, you can run up to 3 functions at the same time. This helps when using a round bale forklift, for example. Lower the front loader, extend the bale forks and open them at the same time.

Equipment ranges.
Profi & Profi+

To tailor the Fendt 700 to your exact needs, choose from either the Profi or Profi+ packages. See base package features below.

Profi

Profi Setting 1*

Crossgate lever
Four fingertip spools to control the hydraulic valves

Profi Setting 2*

3L joystick
Four fingertip spools to control the hydraulic valves

Profi+

Profi+ Setting 1*

Crossgate lever
Four fingertip spools to control the hydraulic valves
Fendt Smart Farming basic package: Guidance system, Agronomy, Telemetry, Machine control

Profi+ Setting 2*

3L joystick
Four fingertip spools to control the hydraulic valves
Fendt Smart Farming basic package: Guidance system, Agronomy, Telemetry, Machine control

*All images show standard equipment and an optional front power lift

FendtONE - Consistent and intuitive operating philosophy

Seamlessly connecting office and machine.

For the first time, the new FendtONE platform merges your machines and your office into one control unit. FendtONE combines the familiar operation of the tractor with the terminal for planning or control tasks that normally would take place in the office.

Practical advantages at a glance:
