Meet a completely new series – the Fendt 600 Vario. With its compact size and impressive performance, it opens new possibilities in row crops, hay production and front loader applications. Discover the innovation and passion that has gone into every component of this tractor.
Model overview
614 Vario
121 kW*
164 hp*
616 Vario
135 kW*
184 hp*
618 Vario
150 kW*
204 hp*
620 Vario
165 kW*
224 hp*
*Nominal power / Maximum power with DynamicPerformance ECE R 120
In addition to impressive features such as unsurpassed maneuverability and the completely new generation of the VarioDrive CVT, the Fendt 600 Vario has a lot more to offer. Among other things, it impresses with maximum comfort, in transport applications and with its remarkable hydraulic performance. This tractor sets new standards and makes your work easier in every respect.
Incomparable comfort.
Our VisioPlus cabin is specially designed for long working days and offers you a distinctive and unique workplace. Experience the new premium driver's seat with memory and massage functions, offering you the ultimate in seating comfort. A large cooler and hot box is available for drinks and food. In addition, the cabin air filtration can be prepared for protection category 4 ex works. In this way, you are optimally protected from, for example, dust or vapours of liquid crop protection products.
Powerful hydraulics.
The hydraulic system of the Fendt 600 Vario offers an impressive pump capacity with a choice of 40.2 gpm amselivery rate with a choice of 152 l/min or 205 l/min pumps. With a high removable oil quantity of 65 litres, you are well equipped. The use of flat face couplings (FFC) in the front, rear and for Power Beyond ensures leak-free use and lower pressure losses. Rely on hydraulics that meet your needs with the Fendt 600 Vario.
New engine: AGCO Power CORE50
AGCO Power CORE50 is an all-new 221 hp diesel engine with excellent torque, fuel economy and reliability. Optimized for today’s off-road use, its features ensure versatile power – such as excellent torque in low RPM, responsive dynamics and an advanced emission control system. Ready for the future, the AGCO Power CORE is the most advanced diesel engine platform on the market today.
New VarioDrive
VarioDrive represents a new generation of the Fendt Vario transmission. It combines maximum tractive power, simultaneous ground protection and groundbreaking maneuverability. The single range drive train with independent control of the front and rear axles

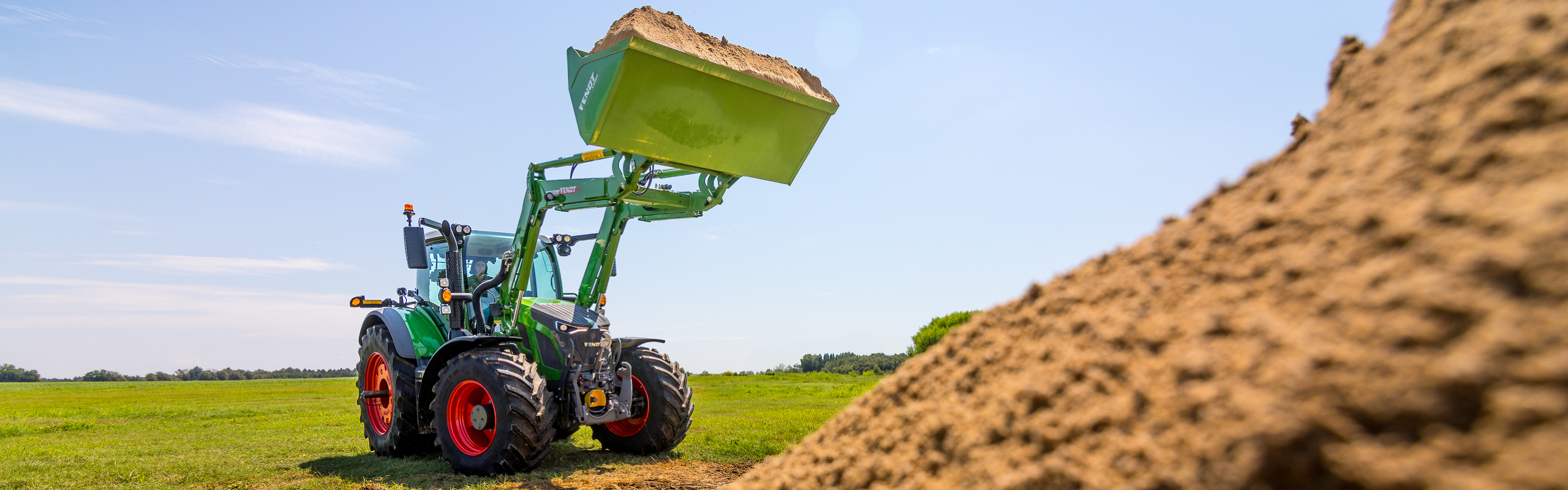

Perfect for Front Loader Work
With automatic four-wheel drive which minimizes tension in the drive train, perfect visibility due to a field of vision of 77° and maneuverability that is unparalleled in the 200 hp class, the Fendt 600 Vario is ideal for front loader work. The high hydraulic flow capacity of up to 54.2 gpm ( 205 lpm) also enables powerful work.
Superior Ground Protection with Fendt VarioGrip
The fully integrated Fendt VarioGrip tire pressure regulation system is already in use in over 8,000 Fendt tractors and increases the overall productivity of the machine. An optimally adjusted tire pressure reduces slip and surface pressure, increases soil fertility and tractive power by up to 8%. In addition, you save up to 8% fuel. Fendt VarioGrip is available for both flange and bar axles. With Row Crop variant, pressure adjustment can also be performed with dual tires.
Best Maneuverability in the 200 hp Class
The turning radius of the Fendt 600 Vario of only 33.5 ft (10.2 m) is insanely small. And thus an incredible 2 ft (0.6 m) smaller than the Fendt 700 Vario Gen6. This superior maneuverability is possible due to the compact engine package, the half frame and the innovative pull-in turn effect of VarioDrive. Benefit from the time saved, especially on headlands and front loader work.
Equipment Variants
Power
Crossgate lever
No fingertip controls (linear module) for operating the hydraulic valves
*All illustrations show standard equipment and optionally available front linkage.

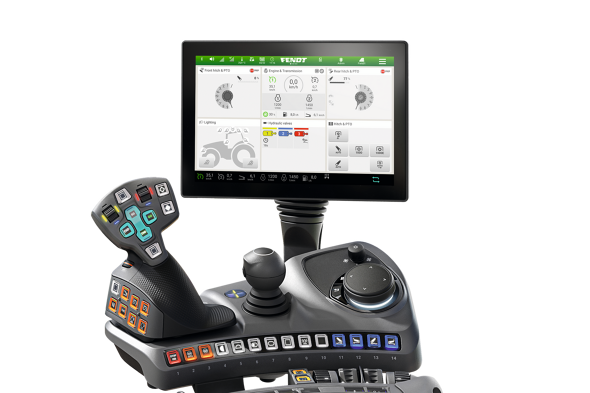

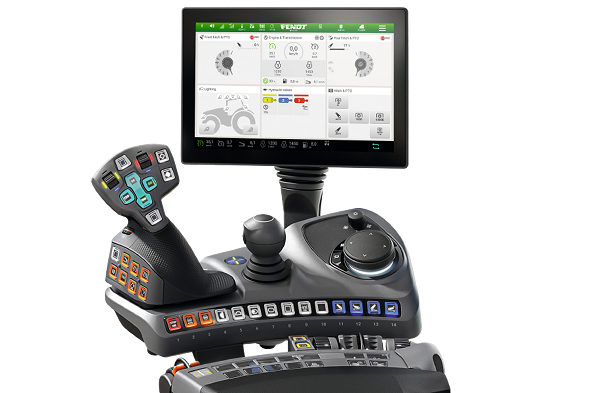

Profi
3L-Joystick
Two pairs of fingertip controls (linear module) for operating the hydraulic valves
ISOBUS
*All illustrations show standard equipment and optionally available front linkage.

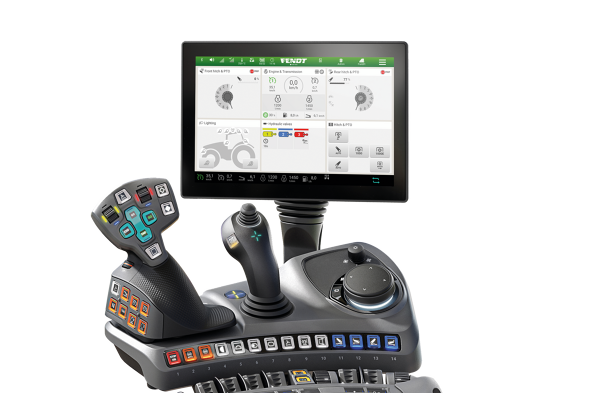

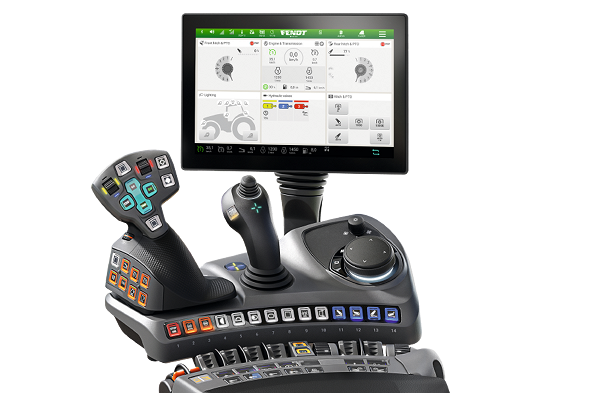

Profi+
3L-Joystick
Two pairs of fingertip controls (linear module) for operating the hydraulic valves
ISOBUS
Fendt Guide preparation
*All illustrations show standard equipment and optionally available front linkage.
Gold Star Customer Care
You do fuel and labor. We'll handle the rest.
The Warranty - Three years or 3,000 hours, $0 deductible, full-machine coverage.
The Maintenance - All parts and labor required to perform each factory-recommended maintenance is included.
The Parts - All genuine AGO Parts are covered for one year, and all labor for six months.
The Service - Fendt factory-trained certified technicians perform the service with only the highest-caliber diagnostic tools.
The Loaner - We provide a loaner tractor if your tractor can't be repaired in 48 working hours.
Gold Star+ - For more extended working periods, all the same benefits for as long as 5 Years or 5,000 hours.
Specifications Fendt 600 Vario
614 Vario
616 Vario
618 Vario
620 Vario
Maximum power with DP ECE R 120
121/164
135/184
150/204
165/224
Cubic capacity
5017
5017
5017
5017
Max. torque
793
861
904
950
Speed range forward
0,02 - 50
0,02 - 50
0,02 - 50
0,02 - 50
Speed range reverse
0,02 - 33
0,02 - 33
0,02 - 33
0,02 - 33
Rear PTO
540/540E/1000/1000E
540/540E/1000/1000E
540/540E/1000/1000E
540/540E/1000/1000E
Front PTO option
1000
1000
1000
1000
Variable flow pump
152
152
152
152
Variable flow pump option 1
205
205
205
205
The way to your Fendt 600 Vario
Next steps
Want to find out more about the Fendt 600 Vario? Find a dealer near you and get advice.
