Comfort front power lift
Front power lift for optimum manoeuvrability

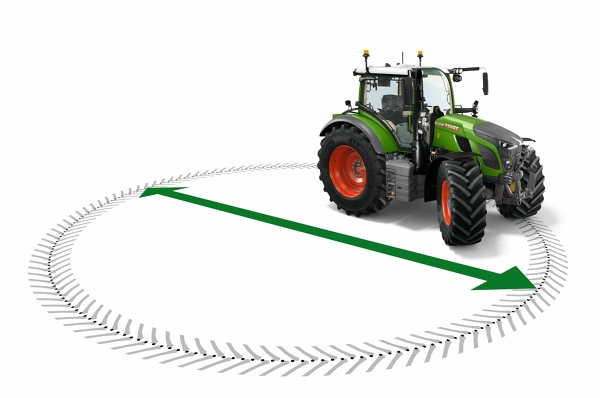

The front power lift of the Fendt 600 Vario offers a high lifting capacity of 4,400 daN and a continuous lifting capacity of 31 kN, with a maximum implement weight of 3,180 kg. The front power lift is fully integrated into the waisted half frame, which ensures optimum manoeuvrability.
There are three different variants depending on the requirements. Mounting the implement is made easier by an optional camera. The design of the standard front power lift is hinged and removable. This does not impair the working hydraulics and offers vibration damping thanks to a nitrogen accumulator. The integrated cylinder protection and simple operation via the power lift control module and the terminal round off the functions. The front power lift offers a relief control and optimum manoeuvrability for front mower use.
There are three different variants depending on the requirements. Mounting the implement is made easier by an optional camera. The design of the standard front power lift is hinged and removable. This does not impair the working hydraulics and offers vibration damping thanks to a nitrogen accumulator. The integrated cylinder protection and simple operation via the power lift control module and the terminal round off the functions. The front power lift offers a relief control and optimum manoeuvrability for front mower use.
The comfort front power lift

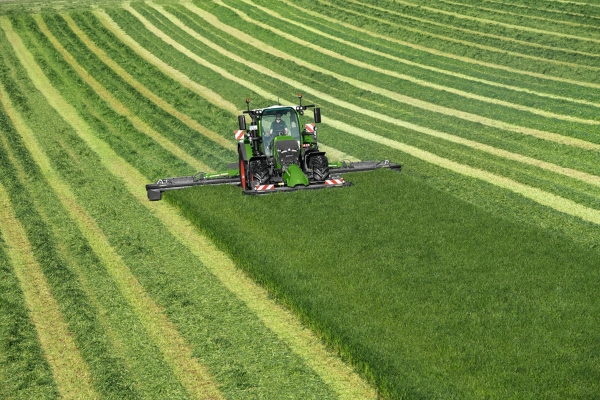

The comfort front power lift with position control and load-relieving control offers numerous advantages for the use of implements at the front. The active, dynamic control of the support and relief pressure between 3 and 100 bar is conveniently carried out via the terminal. A position sensor on the front power lift recognises unevenness and ensures that control is automatic from a speed of 0.6 km/h. This means that no mower deck relief springs are required, which further simplifies handling. The front power lift of the Fendt 600 Vario allows you to work without damaging the implement and ensures optimum ground tracking. This protects the sward during mowing and reduces forage contamination, resulting in higher forage quality. In addition, directional stability is ensured by the load on the front axle, depending on the area of application.
