Superior traction.

No matter if you are using your Fendt 800 Vario primarily for arable farming, transport or specialty operations – you profit from the low unladen weight of only 9.5 t in any case. On the one hand, you have high payload reserves of up to 6.5 t and on the other, you do not need to transport unnecessary weight. A tailor-made ballast concept is ideal for heavy draft work.

Versatility through connections

The Fendt 800 Vario offers more connections than any other tractor in its power class: six electrohydraulic double-acting valves at the rear and two in the front, power beyond, ISOBUS connection and many more. Overall, the Fendt 800 Vario has more than 24 connections, which are practicably located both at the front and rear. That guarantees versatile operations and trouble-free connection of all implements – for effective teamwork between the tractor and implement.

Intelligent technology at the front and rear. Suitable for every application.

Top link
Two double-acting control valves
Unpressurised front return flow
7-pin socket
Front PTO
Lower link hook end
Holder for relief springs (not shown)

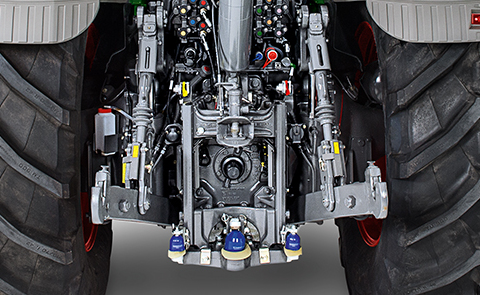

Interfaces at the rear

Signal socket
ISOBUS connection
Hydraulic top link
Duomatic clutch
Six double-acting control valves
Leakage oil line
Unpressurised rear return flow
Air brake
Control line power beyond
Pressure line power beyond
Hydraulic trailer brake
7-pin trailer socket
Lower link hook end
Hitch
Rear PTO
Bottom hitch

Powerful lift capacity

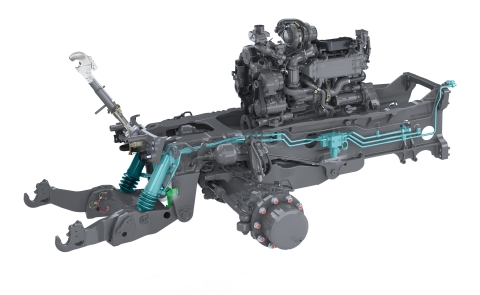

The electrohydraulic rear power lift, which has a maximum lift capacity of 83.4 kN, guarantees that even heavy rear-mounted implements for this power class can be lifted to the fullest height without trouble. A maximum lift capacity of up to 5,040 daN at the front permits the use of heavy front-mounted implements. The newly designed, cast front linkage is integrated in the structure of the tractor so that the coupling points are close to the vehicle.

PTOs with economy function

The PTOs can be easily controlled via the multi-function armrest. External controls are also available at the rear. The PTO speeds (540E/1000 or 1000/1000E) at the rear enable work at a lower engine speed, which means lower fuel consumption. The front PTO (1000 rpm) permits operation with a broad range of implements at the front of the tractor.

The comfort front linkage on the Fendt 800 Vario has optional load relief control. It allows the weight of the implement to be transferred to the tractor over a defined pressure. This is especially advantageous when working with a front mower or winter maintenance implements, because the weight is shifted to the front axle, which improves steering performance.

The lower links on the rear linkage can be folded up into parking position, so that there is more space for the drawbar.

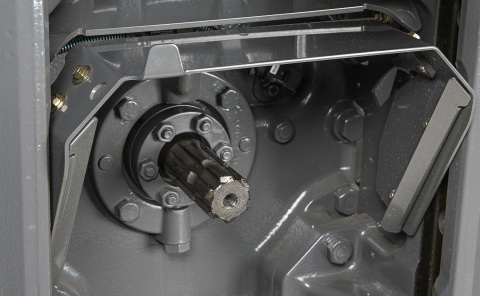

The PTO has outstanding efficiency, since power to the PTO stub flows through a direct drive line from the Vario transmission. At the same time, the rated speeds are already attained at an engine speed below 2,000 rpm, which has a positive effect on fuel consumption.

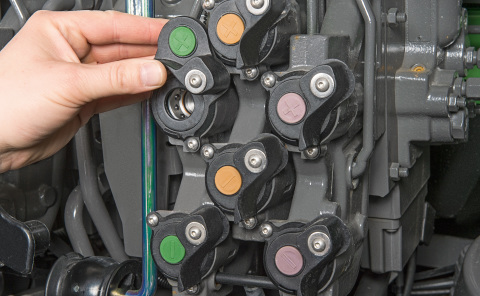

The double-sided CUP (couple-underpressure) couplings make mounting and removing the implements much easier. The self-closing valve flaps effectively protect against contamination and permit one-handed connection of a hydraulic line.

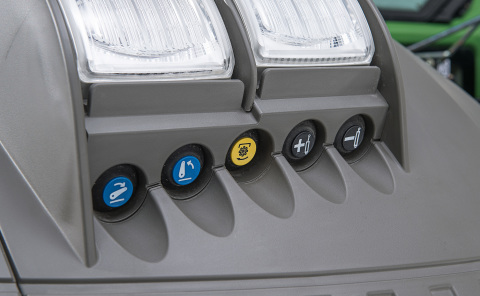

With the external valve controls, you can actuate the rear linkage, one valve and the PTO directly on the rear mudguard. Using the external controls for the rear PTO, a preset engine speed can targeted automatically. You save yourself unnecessary steps, for example, when filling the slurry tank.

Powerful hydraulic system

With its load-sensing technology, the Fendt 800 Vario is well-equipped for demanding operations. Depending on the area of application, you can equip the Fendt 800 Vario with a load-sensing pump with a delivery capacity of 152 or 205 litres per minute. The separate hydraulics and transmission oil supplies means the 800 Vario will be compatible for use with bio-oil in the hydraulic circuit. With up to 80 litres, the Fendt 800 Vario has a high volume of available oil that can meet the demands every implement, no matter how high its oil requirements.
