A Fendt 300 Vario is characterised by its thoughtful design down to the last detail. This latest generation includes four models in power classes ranging from 110 to 152 hp in the three configurations from Power and Profi up to Profi+. The fourth-generation Vario features the all-new FendtONE driver's workstation as well as the high-end model 314 Vario with 152 hp max. output. The concept seamlessly unites machine and office.
Fendt 300 Vario – the trailblazer of the compact standard tractors.
| kW | hp | |
| 311 Vario | 83* | 113* |
| 312 Vario | 90* | 123* |
| 313 Vario | 98* | 133* |
| 314 Vario | 104* 112** | 142* 152** |
*Maximum power ECE R 120
**Maximum power with DP ECE R 120
Experience the Fendt 300 Vario in 360°.
Fendt 300 Vario Spotlights. Special. Better.
This overview shows the special Fendt solutions – our Fendt Spotlights – that make the difference and simply make your work better every day.
- VisioPlus cab
- FendtONE driver's seat
- Fendt DynamicPerformance
- Three front power lift versions
- Light, agile, stepless gliding at just 33 kg/hp
- Exceptional ride and operating comfort
- High ground clearance for crop protection
- Perfect modularity
- Fendt Smart Farming

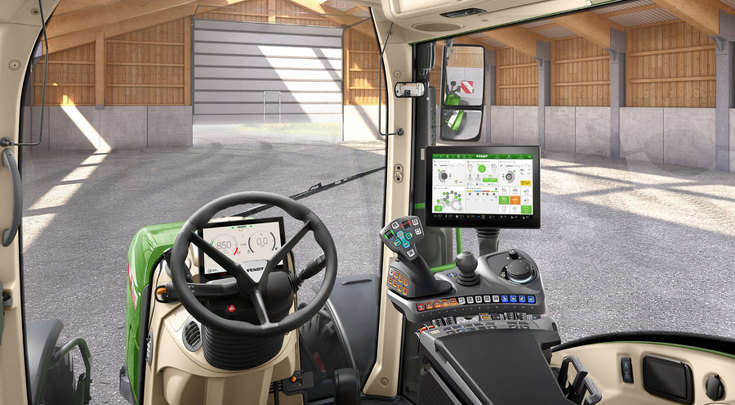

The new FendtONE driver's seat.
FendtONE: intuitive use, connecting machine and office for the very first time
For the first time, the intuitive FendtONE operating philosophy combines machine operation with direct communication in the office. The concept is supplemented with an optional infotainment package and 4.1 sound system. The new driver's workstation includes a large 10" dashboard, an armrest with multifunction joystick and, depending on the configuration, a 12" terminal. With the armrest anchored to the seat, you can easily adjust any setting without much movement at all. There is also a second optional 12" terminal, which you can stow half way into the cab roof. The 3L joystick opens up new possibilities.
Show more details
12" terminal
Depending on the equipment variant, the Fendt 300 Vario now features the 12" terminal, which includes all the guide-assist systems, such as Contour Assistant, SectionControl and VariableRateControl.
EHS valves
The lower control level includes the LED display for each setting. The driver immediately sees whether buttons have been re-allocated by the colour concept. By default, these are the hydraulic valves.
Hand throttle, speed ranges and adjustment rockers
In the middle operating level, from the left, we have the following: hand throttle, speed ranges, adjustment rockers 1 and 2 (freely assignable), PTO actuation as well as front power lifts and rear power lifts with depth adjustment.
Operation of the front and rear PTO shaft
White buttons
Five white buttons ready for you to assign: You have the option to freely assign functions to specific controls. Never before has the workplace seen this level of individualisation for different drivers.
Controls
Here are the control buttons for the all-wheel drive, differential locks on the left, power-lift settings on the right and in the middle the five freely assigned white buttons.
Pushdial
Use the central pushdial to decide what to display on the Fendt 300 Vario. This includes four quick access keys for Back, Launchpad, Overview, Individual Operation Manager (IOM) and switching between terminal and dashboard.
Dials
You can easily manage the air conditioning and infotainment with two dedicated dials.
Crossgate lever
The crossgate lever offers sensitive control without you having to reach over two control valves. Complex implement functions can be controlled with the optional third and fourth hydraulic circuits. These are activated and controlled by pushbuttons on the crossgate lever.
Pushbuttons
This is where you can easily manage the usual transmission and driving functions with pushbuttons: including two engine speed programs, two cruise control settings and a new dial-controlled active cruise control setting.
Multifunction joystick
As well as the familiar clover leaf operation, the new multifunction joystick includes two controls for proportional valve control as well as four freely assignable white keypads.
Central dashboard
Shown here is the main digital cockpit where you can easily configure the main function groups. Your road driving info is on permanent display on the left and right. On models without the 12" terminal, you will find the settings for the main groups in the middle; power lifts, hydraulics, engine and transmission, onboard computer with consumption rates, ventilation, lighting, front axle suspension, valve assignment, as well as service and diagnostics. It's all in your control with the new pushdial on the right-hand armrest.
VisioPlus cab: perfect all-round view
The Fendt VisioPlus cab is a true wonder of visibility and space, with a 77° panoramic view. The windscreen arches into the roof without an obstructive cross bar, giving you a continuous view of the extended front loader. The curvature means any material just slides off. To the ground and straight ahead, your line of vision is improved with the compact bonnet and waisted half-frame.
The Fendt added power concept, DynamicPerformance.
Greater area coverage and higher productivity.
The smart power-boost concept Fendt DynamicPerformance (DP) on the Fendt 314 Vario releases up to 10 hp more power on demand. This is regulated depending on the operating conditions at any speed. You can also benefit from PTO power either at a standstill, for soil cultivation or during transport. The benefit is a lightweight tractor with more power and less fuel consumption per hectare.
Three front power lift versions to suit every task.
The power lift with vibration damping is available as standard, with position control as well as an exclusive comfort front power lift with position and load relief control.
- Sits particularly close to the vehicle, which means the entire hook-up is very manoeuvrable
- Max. lift capacity 3,130 daN
- Lower links with particularly good lower grip (fold in to park)
- Lifting cylinder protected by bellows against stone impacts
- The vibration damping, fitted as standard, prevents bounce and guarantees safe driving and comfort
- Top links with solid brackets and easy handling
Ahead of the rest in more ways than one.

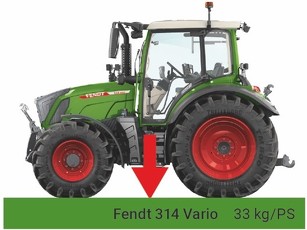

Light, agile, stepless gliding at just 33 kg/hp
Soil compaction reduces yield, and that's true for arable farming and grassland. Extensive tyre options and the low weight-power ratio of the Fendt 300 Vario are gentle on your soil. At just 5010 kg or 33kg/hp, the Fendt 314 Vario is a real lightweight.

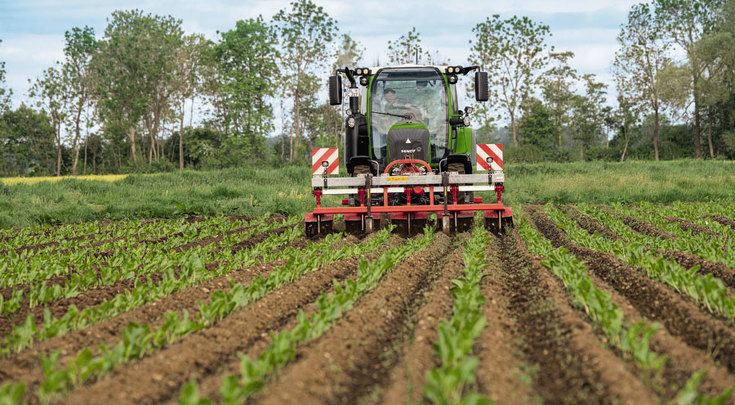

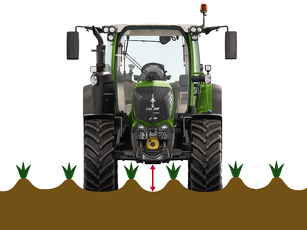

High ground clearance for crop protection
Plant protection and fertilisation in late growth stages increase yield. The Fendt 300 Vario offers a high ground clearance of up to 500 mm and makes light work of special crops.

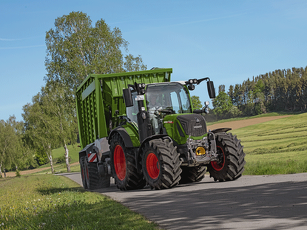

The superior driving and working comfort of an HGV
The smart 3-in-1 system guarantees maximum ride comfort and ease-of-use: self-levelling front axle suspension, optional cab suspension and active shock load stabilising. This is combined with the exclusive Fendt Reaction steering for safe straight-ahead driving, which enables particularly sensitive and safe control and has excellent responses for safe straight-ahead driving.

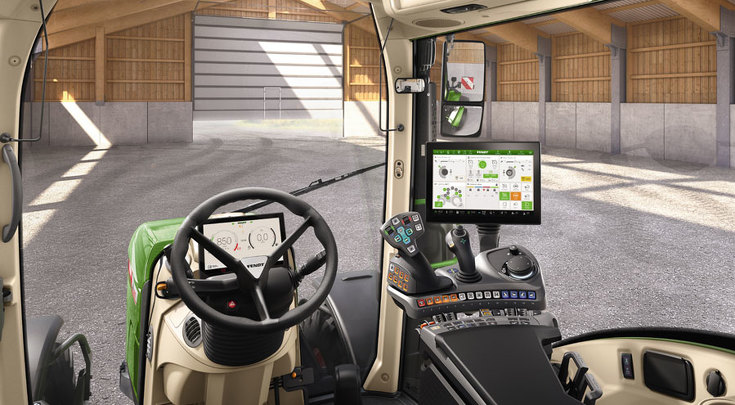

Perfect modularity with the configuration variants: Power, Profi and Profi+.
You can tailor the Fendt 300 Vario to your particular needs. With 210 options and 150 tyres and tracks ex works. You can opt between 2 different settings for each equipment variant.

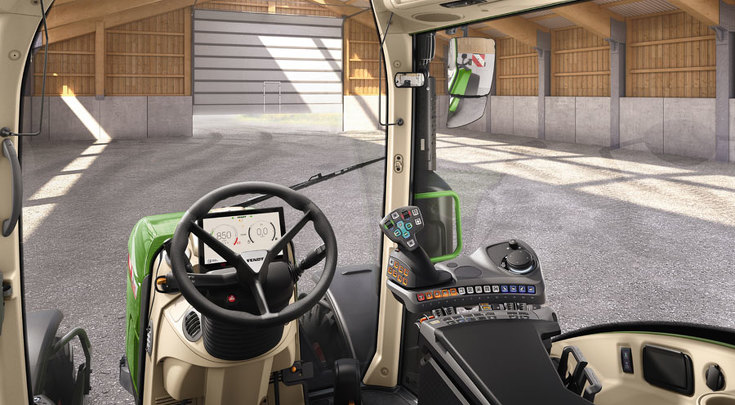

Power
Power Setting 1*
- No crossgate lever
- One linear module (rocker pair) to control the hydraulic valves
Power Setting 2*
- Crossgate lever
- No linear module (rocker pair)

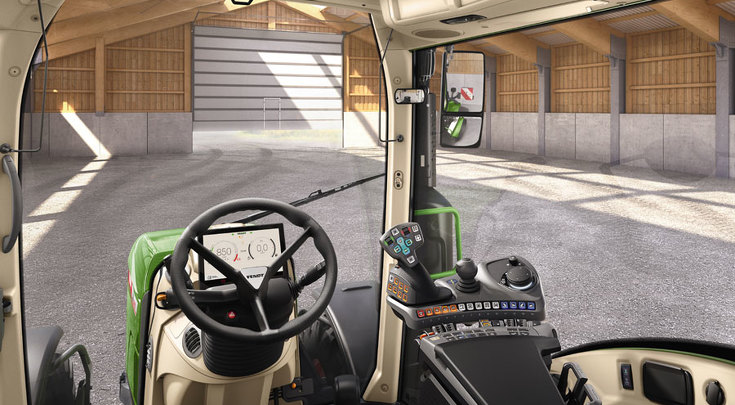

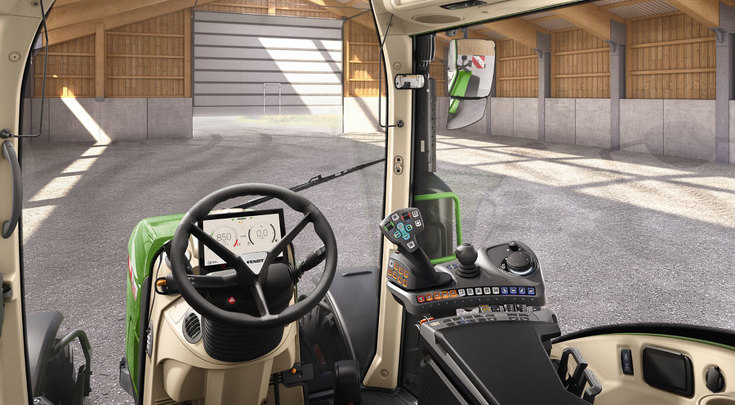

Profi
Profi Setting 1*
- Crossgate lever
- One linear module (rocker pair) to control the hydraulic valves
Profi Setting 2*
- 3L joystick
- One linear module (rocker pair) to control the hydraulic valves
- 12" terminal

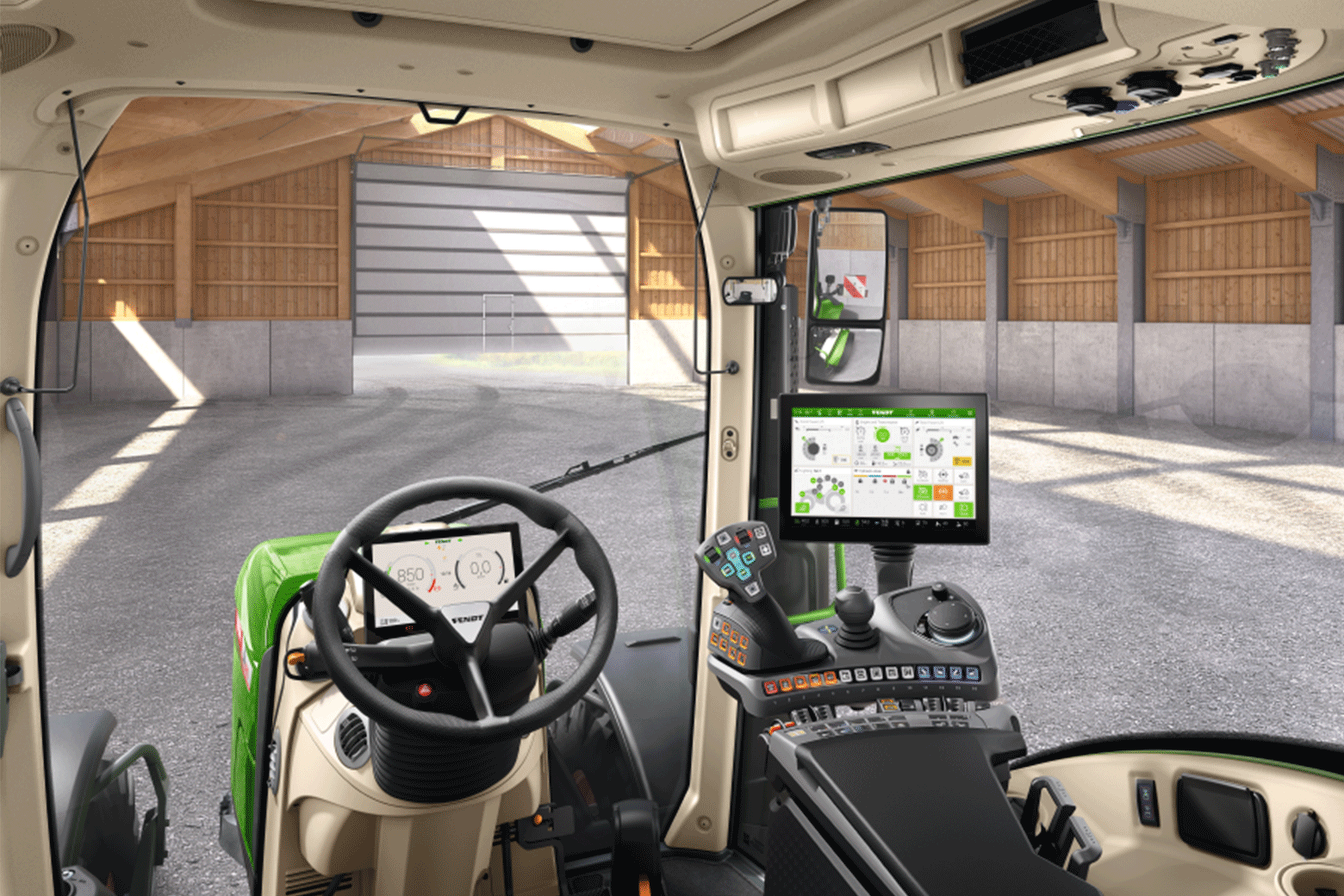

Profi+
Profi+ Setting 1*
- Crossgate lever
- One linear module (rocker pair) to control the hydraulic valves
- 12" terminal
Profi+ Setting 2*
- 3L joystick
- One linear module (rocker pair) to control the hydraulic valves
- 12" terminal
*The illustrations show standard equipment with optional front power lift module.
FendtONE: Seamlessly connecting office and machine.
Consistent and intuitive operating philosophy.
FendtONE merges your machines and your office into one control unit for the first time.
Practical advantages at a glance:
- Intuitive and standardised controls
- Master data updated centrally
- Easily send data to the machine terminal and vice versa - wherever, whenever
- Open and vendor-independent system, with the option to manage mixed fleets
- Data sovereignty always lies with the customer
Fendt Smart Farming: Tailored to your needs.
Choose from four modules.
In the field of smart farming, Fendt offers you a wide range of products to help you use your machine even more purposefully and at the same time work more comfortably. A total of four modules are available, which you can select as needed:
- Guidance system
- Agronomy
- Telemetry
- Machine control
Each module includes a basic package of the startup applications you need. You can also extend the modules with optional extras.

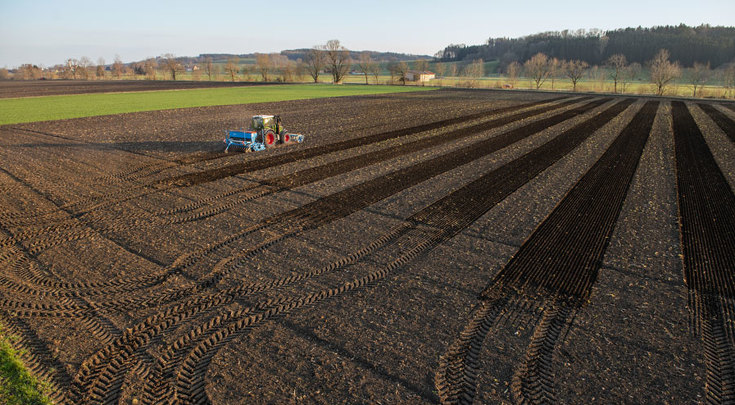

Lane Guidance
With Fendt's lane guidance, you work with the highest precision at all times – even at night and in poor visibility.
Basic package:
- Tractor ready for lane guidance
- Fendt Guide app
Optional:
- Choice of different receivers (NovAtel or Trimble)
- Fendt Contour Assistant
- Fendt TI
- Fendt TI Headland
Agronomy
With the help of the job-based documentation system Fendt TaskDoc and the job management system Fendt Task Manager, you can cut down on your desk time.
Basic package:
- Fendt TaskDoc app and Fendt Task Manager
- Create orders and follow-up reports on the machine
- Full overview of completed jobs
Optional:
- NEXT Machine Management
Telemetry
Fendt Connect is the central telemetry solution for Fendt machines. It lets you access your machine data no matter where you are.
Basic package:
- For the best analysis and optional fleet management
- Use Fendt Connect to display and store data such as machine position, fuel consumption, speed and error codes
- Storage to evaluate work processes and machine condition
- Data is sent via the mobile network, so you can check machine data wherever you are
Machine control
With Fendt Section Control, Fendt Variable Rate Control and Fendt ISOBUS, your tractor and attachment can interact perfectly.
Basic package:
- Prerequisite for additional ISOBUS functions
- Simple and intuitive control of ISOBUS attachments with standardised cross-vendor interface as per Standard ISO 11783
- The tractor terminal and attachment are attached using a socket at the rear
Optional:
- Fendt Section Control
- Fendt Variable Rate Control
- Fendt Implement Management (TIM)
