Fendt 1100 Vario MT

The new Fendt 1100 Vario MT is the crowning glory of our tractor series. A tractor which easily fulfils even the most demanding power requirements. And precisely the right choice if you have to achieve the extraordinary on a daily basis. This also makes the Fendt 1100 Vario MT the first tracked tractor in this hp class to have a stepless transmission.

Configure now

Model overview

1151 Vario MT

376/511 kW/hp

1156 Vario MT

415/564 kW/hp

1162 Vario MT

455/618 kW/hp

1167 Vario MT

495/673 kW/hp

Product brochure

Technical specifications

The Fendt 1100 Vario.

Get it done.

The best features for your success – The Fendt 1100 Vario MT Spotlights

The system on the new Fendt 1100 Vario MT is the result of more than 30 years' experience with tracked tractors. There are three models to choose from, ranging from 511 to 618 hp. If that's not enough for you, go for the high-end model Fendt 1167 Vario MT. This gives you an extra 55 hp for auxiliary consumers with high power requirements, like the hydraulics or PTO.

This overview highlights the unique Fend solutions that make all the difference.

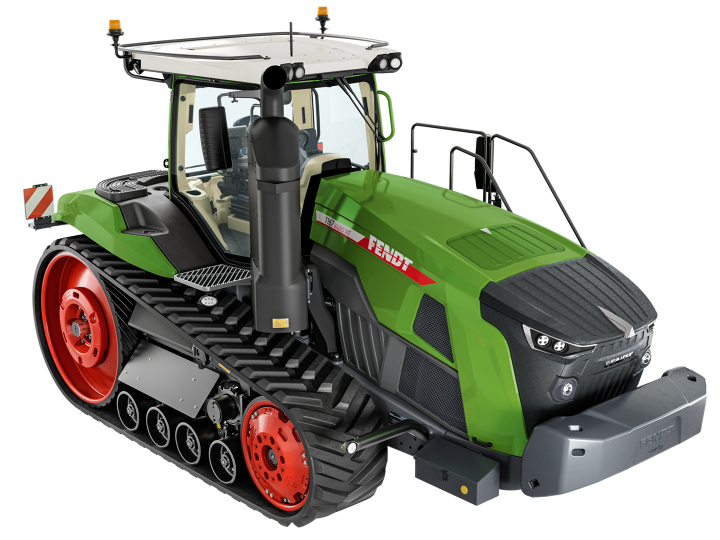

Figure of a Fendt 1100 Vario MT on a white background

VarioGuide guidance system High-performance hydraulics Spacious cabin including cabin suspension Swivel drawbar Low-speed concept Fendt iD SmartRide+ chassis suspension VarioDrive drive train Flexible ballast options

360° View

360°

A powerhouse of a tractor

Cross-section of the Fendt 1100 Vario MT tractor with the MAN six-cylinder in-line engine marked in.

A power sensation

An engine that is unparalleled: the MAN 6-cylinder in-line engine offers an enormous cubic capacity of 15.2 litres on the Fendt 1151 Vario MT, 1156 Vario MT and 1162 Vario MT models. With the high-end model Fendt 1167 Vario MT boasting 16.2 litres, providing an unbeatable 673 hp to the auxiliary consumers under extremely high power requirements. A Common Rail system with an injection pressure of up to 2,500 bar and a turbo-supercharger with variable turbine-geometry (VTG), deliver the power evenly and dynamically even at low engine speeds.

Representation of the cooling concept with red and blue arrows in the Fendt 1100 Vario.

Cooling: optimal and low operating temperatures guaranteed

The hydraulically driven cooling fan has its own hydraulic circuit. The fan pushes the air towards the heat deflector. This directs the hot air to the air vents in the bonnet. The heat from the cooler gets nowhere near the engine compartment. This guarantees the engine components stay at suitable low operating temperatures.

Track tractor

CGI image of the Fendt 1100 Vario MT's tracked drive

All advantages in one vehicle

The tracked drive system of the new Fendt 1100 Vario MT is the
result of more than 30 years' experience with tracked tractors. Our drive has a suspension chassis for 100% comfort. The 3,000 mm wheelbase promises an extremely large contact surface. This means more traction, less soil pressure and an optimal weight distribution across the entire contact area even in the case of a heavy load. And of course also optimum driving comfort.

Hydraulics & Hitch Systems

Close-up of the hydraulics and the hitch system on the Fendt 1100 Vario MT.

The right attachment for each hookup

The Fendt 1100 Vario MT comes with a Cat. 5 drawbar. But you can easily reduce the pin size to Cat. 4 with the help of an adapter – a simple, toolless process. To ensure that your Fendt 1100 Vario MT fits perfectly with your business and its requirements, there are different drawbars to choose from:

Free-pivoting drawbar
Hydraulically pivoting drawbar
Drawbar for use with a rear power lift for a three-point hitch

Why use a pivoting drawbar?

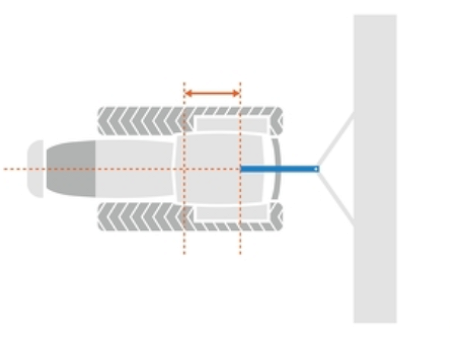

Diagram of the pivoting drawbar when driving straight ahead

The forces are balanced.

Straight travel with drawbar

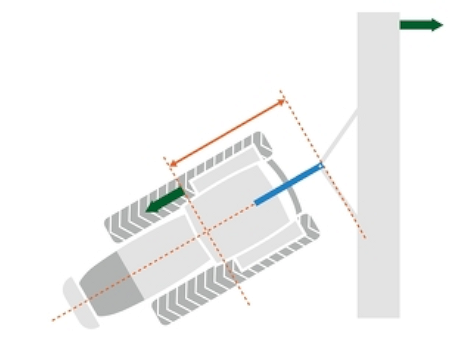

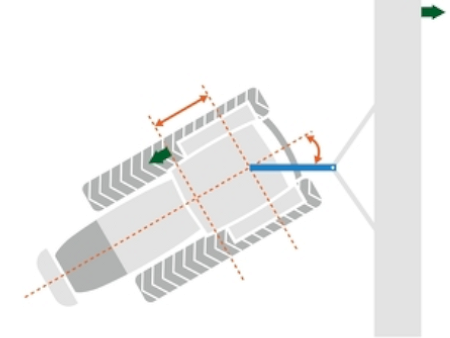

Diagram of pivoting drawbar when turning with a rigid drawbar

The actual pivot point of the tractor is far from its natural pivot point. This means a higher tractive force is required.

Steering in with rigid drawbar

The actual pivot point of the tractor is closer to its natural pivot point. This reduces the tractive force required, saving fuel and reducing wear.

Steering in with swivelling drawbar

The Fendt 1100 Vario MT in test

Fendt 1100 Vario MT test drive

“(...) technological progress you couldn't experience or imagine better or faster.”*

The trade press was able to get a first impression during a test drive with the prototype of the Fendt 1167 Vario MT.
_{*Source: https://www.youtube.com/watch?v=HXSdRFHq5d0&t=1s}

More test results
