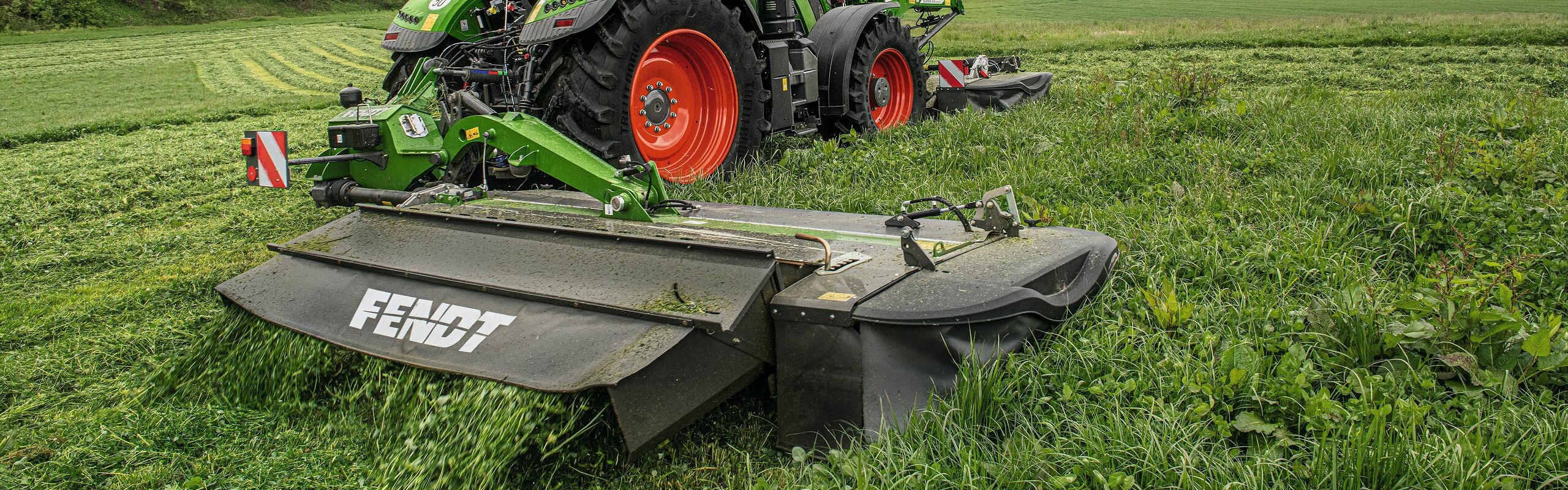

Rear mounted Fendt Slicer
Harvest time for big and small

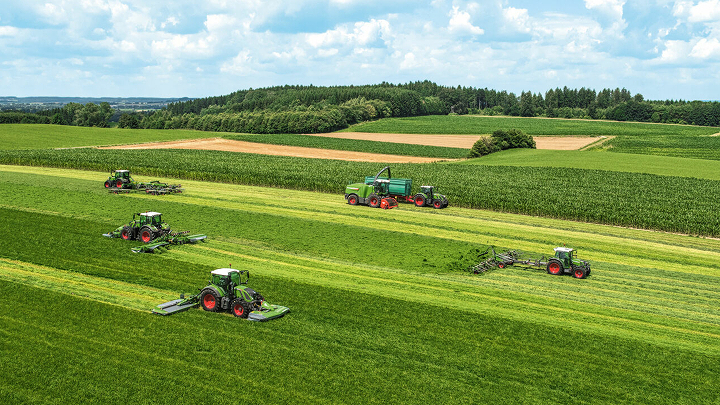

Fendt rear mowers offer the right machine for every requirement - from farms with small-scale areas to self-mechanised full-time farmers. They are ideal for the efficient harvesting of important forage and ensure economical mowing. Reliable and durable machines that increase harvesting quality and operating efficiency.
Leading the way instead of falling behind
The Slicer family shows its most comprehensive side in the classic mower. Incisive mowing experiences begin with Fendt at a working widths of just 2.05 m and go up in true size to 4.50 m. Whether side-mounted in a modular system or centrally mounted with all the refinements of the art of mowing. Everyone will find their Slicer here.
Power springs from this centre – high performance at the rear

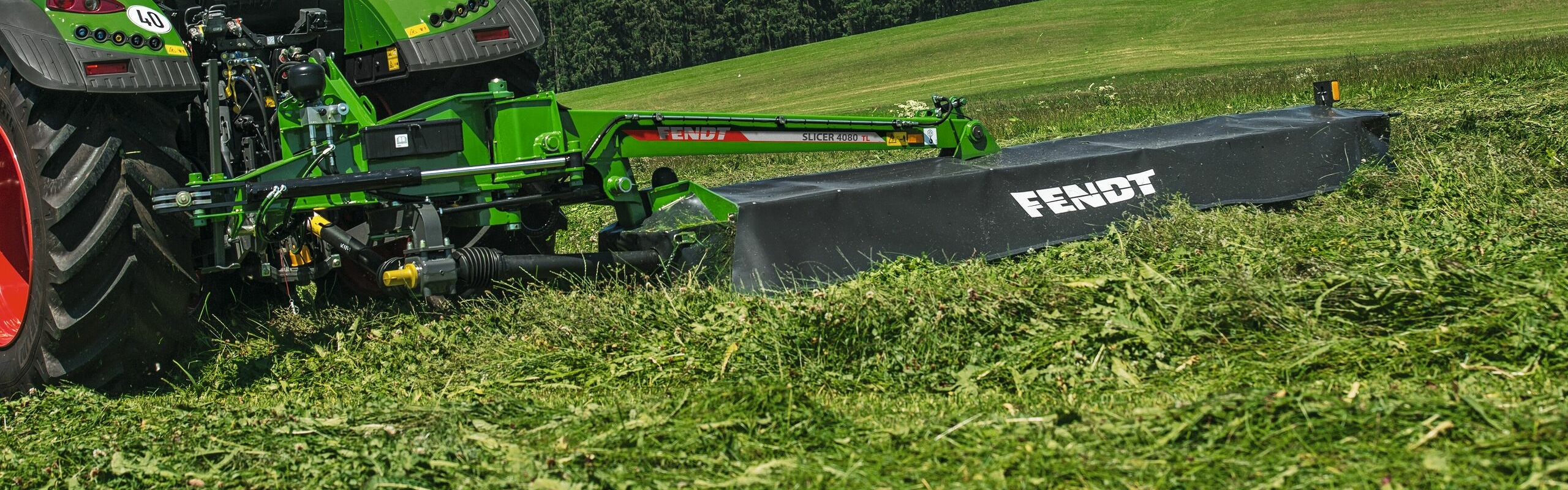

The Fendt Slicer TLX features wide area coverage, an exceptional cut and easy handling, mainly courtesy of the special centre suspension. The mower unit on the Fendt Slicer TLX is suspended at the centre of gravity. This ensures excellent ground following to protect the sward. On the Slicer TLX, the TurboLift system also provides a unique floating cut.
Model overview
Working width | Number of cutting discs | |
Slicer 3160 TLX | 3,10 m | 6 |
Slicer 3160 TLXKC | 3,10 m | 6 |
Slicer 3160 TLXRC | 3,10 m | 6 |
Slicer 3670 TLX | 3,60 m | 7 |
Slicer 3670 TLXKC | 3,60 m | 7 |
Slicer 3670 TLXRC | 3,60 m | 7 |
Simply increase the power.
The new Fendt Slicer TLX series combines pioneering technology with a comprehensive safety and comfort package. Offering a wide range of model variants, theres the right machine for almost every farm. Centrally suspended and equipped with vertical X-folding and the SafetySwing Profi collision protection system, these machines are always safe in the field and on the road. A range of practical detailed solutions make harvesting work easier and offer a high level of operating comfort on the machines.
Works like a charm

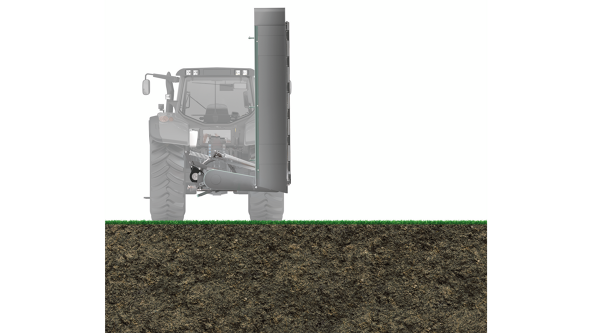

The diagonal transport folding of the Slicer TLX turns the tractor and mower into one unit on the road. Depending on the operating width, the mower folds up to 120°. This gives you the best possible weight distribution, compact transport size and low transport height for safe and easy road transport. Alternatively, the Slicer TLX can also be suspended in the diagonal position and parked compactly.
Best cut in all areas
With the operating height indicator, you can set the height of the lower links when mowing with the Fendt Slicer TLX from the comfort of your cab. On headlands, the mower is simply raised and lowered by a single-acting control unit. The wide swing range of +28° to -18° provides for an exceptional cut even on slopes and embankments.
Swinging protection

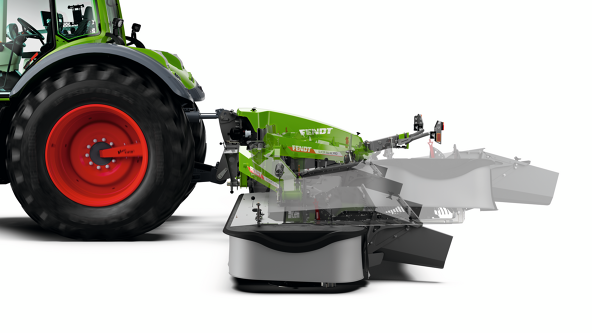

SafetySwing is the patented, mechanical collision protection of the Fendt Slicer large-scale mowers, which is also installed in the TLX models. It triggers in the event of a collision. Due to the large lever arm, the mower unit swings safely away to the top rear and thus flies over the obstacle. It then automatically folds back into the working position so that work can continue without interruption.
Comfort in all its diversity

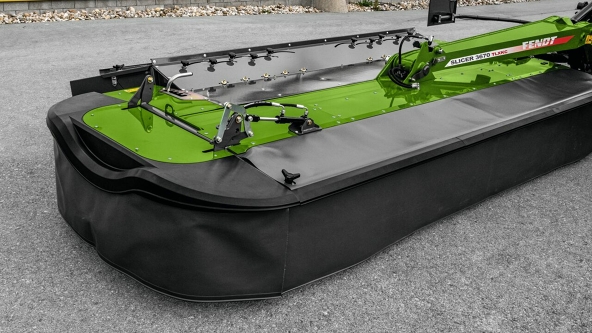

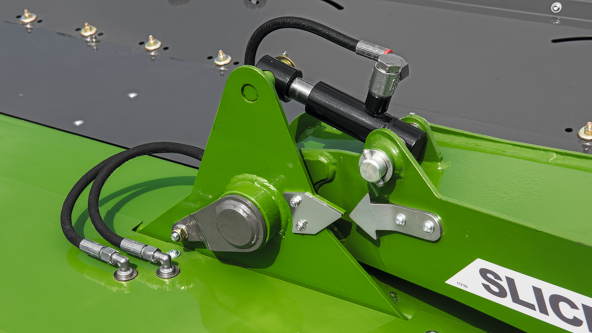

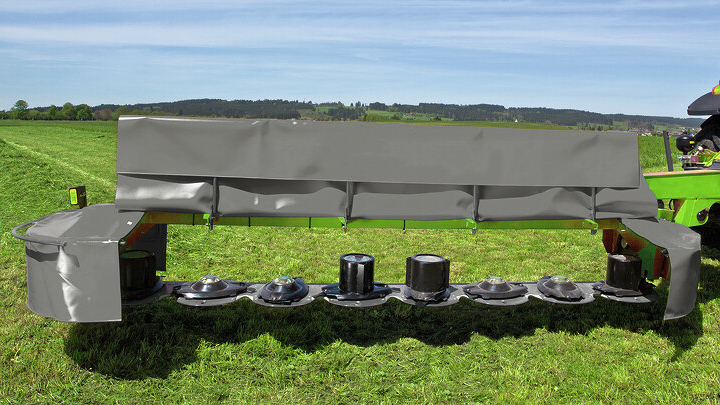

The Slicer TLX features exceptional user friendliness, thanks to details such as the standard tool box, the surrounding plastic impact guard, and the front guard which can be opened without tools. On request, a hydraulic transport lock or hydraulically collapsible outer guard is available. The height of the lower link can be set quickly and easily using the mechanical and easily-readable operating height indicator. The front guards can be generously opened without tools. making them easy to clean and maintain.

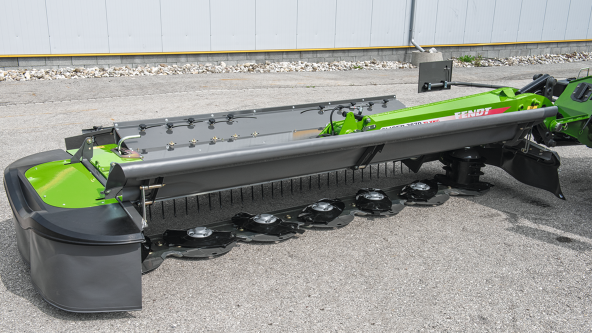

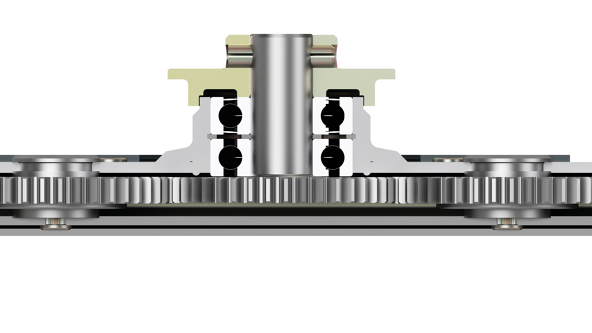

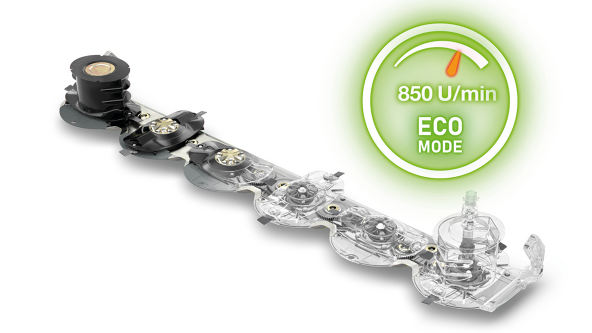

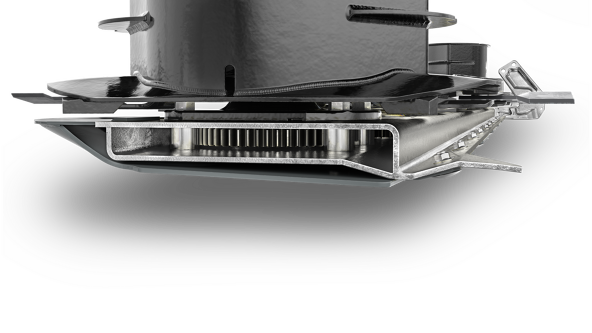

Robust and flat Streamline cutterbar design
The Slicer TLX models are equipped with the flat and robustly designed Fendt Streamline drive. In good conditions, the PTO speed from the tractor can be reduced to 850 rpm for fuel-efficient and clean mowing.
MORE ABOUT THE STREAMLINE CUTTERBAR
Glide across the sward; harvest quality crops.

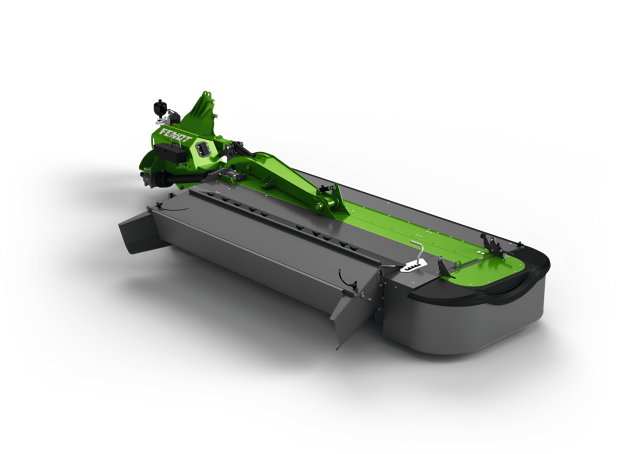

These centre-mounted models are specially designed to meet the increasing demand for powerful rear mowers. Despite their large working width of up to 4.50 m, the mowers, which are suspended at the centre of gravity, have very good ground tracking and are equipped with the TurboLift hydropneumatic cutterbar relief system
Model overview
Working width | Number of cutting discs | |
| Slicer 4080 TL | 4,00 m | 8 |
| Slicer 4590 TL | 4,50 m | 9 |
Patented guide system

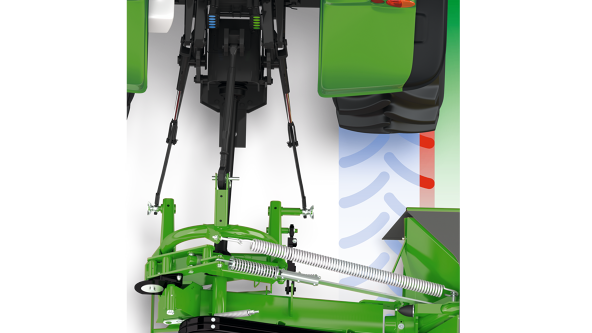

The patented guide of the Fendt Slicer TL mowers ensures optimal stability and guidance of the cutterbed both lengthwise and diagonally. The result is excellent ground following and protection of the sward. The mower has a swing range of 13° both up and down. The guide also relieves the lift arm and the mower's pivot, resulting in zero torque on the centre suspension. All this ensures a long lifetime.

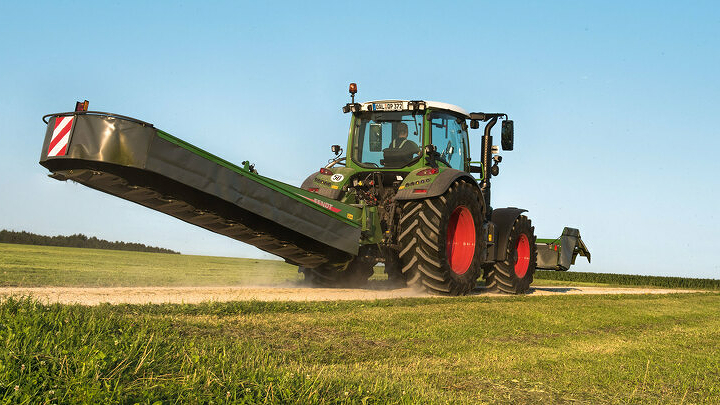

Perfectly positioned even in transport
For transport purposes, the Fendt Slicers are easily swivelled
slightly more than 90° towards the rear. The swivel action can be performed from the convenience of the tractor cab. The compensation cylinder and the TurboLift system therefore have a counter effect on the mower's movements during driving, and ensure a smooth and safe ride on the roads.
slightly more than 90° towards the rear. The swivel action can be performed from the convenience of the tractor cab. The compensation cylinder and the TurboLift system therefore have a counter effect on the mower's movements during driving, and ensure a smooth and safe ride on the roads.
Direct power transmission

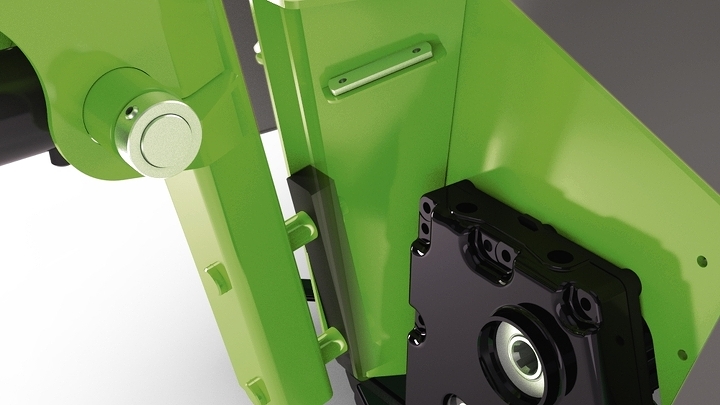

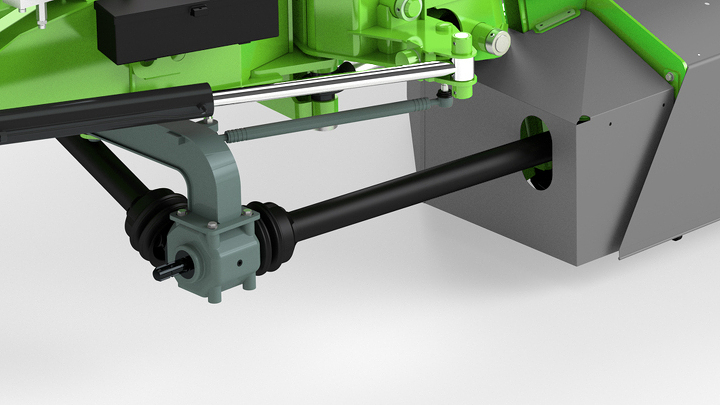

The Fendt Slicer TL part-turn gearbox is also designed for very high-horsepower tractors. The drive shaft with free wheel and overload protection protects against major damage. The Fendt Slicer TL also has an impact guard through which the mower can swing out up to 22° towards the rear. This also enables the release force to be adjusted. By activating the EHS valve and briefly reversing, the mower again returns to the operating position.
Excellent maintenance concept
The Fendt Slicer TL will also make you smile when it comes to ease-of-maintenance. The wide-opening full-cloth front guards allow easier access. The rear guards can also be opened wide on models without conditioners. Changing knives and cleaning is therefore quick and easy. Spare knives are always on hand in the large tool boxes.

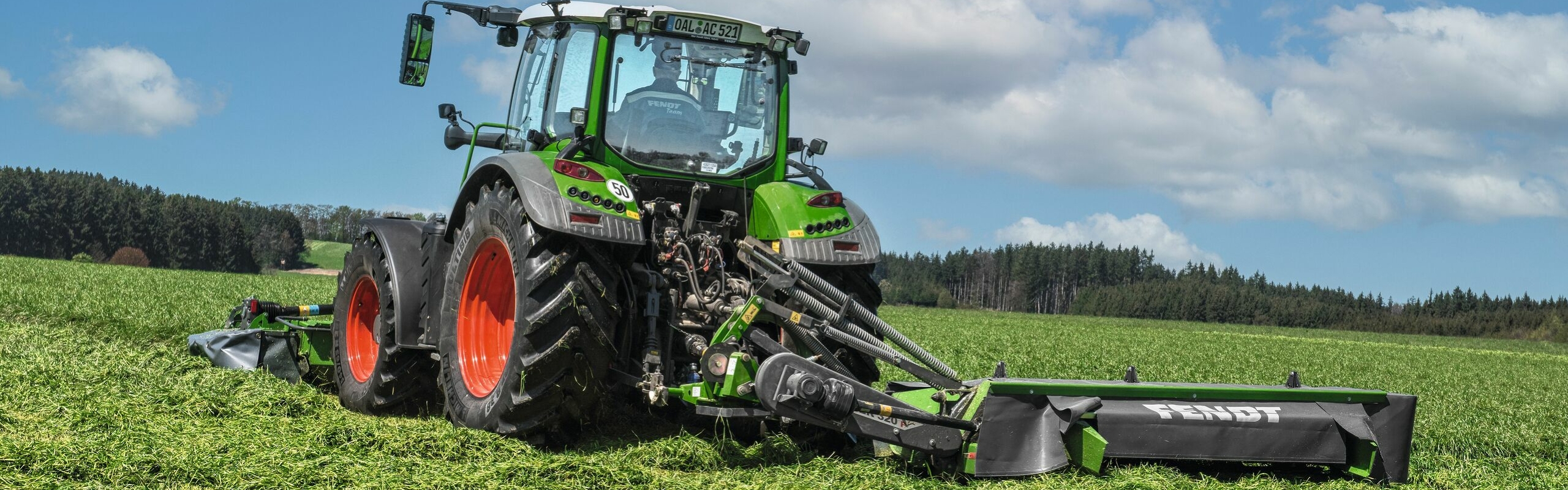

Clear the field from the side.
Fendt Slicer rear-mounted mowers with side suspension and compact angle drive come in different versions. These models have the mower discs running in pairs and are equipped with both a quick-release blade system and DriveGuard mowing disc guard as standard.
Model overview
Working width | Number of cutting discs | |
| Slicer 270 P | 2,55 m | 5 |
| Slicer 320 P | 3,00 m | 6 |
| Slicer 350 P | 3,50 m | 7 |
No compromise

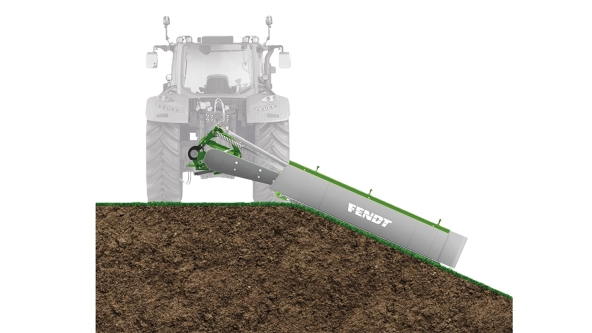

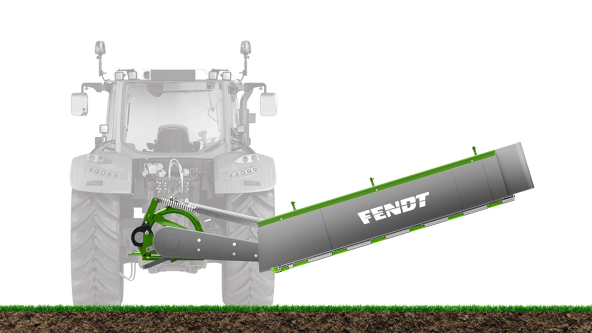

Fendt Slicers with side suspension are perfect for medium-sized farms. They offer an enormous range of applications and can also mow ditches and embankments with an incline of up to -30°, thanks to the side suspension. The mower unit load relief can be easily adjusted using a spring. Sward protection and high-quality forage also play an extremely important role here.

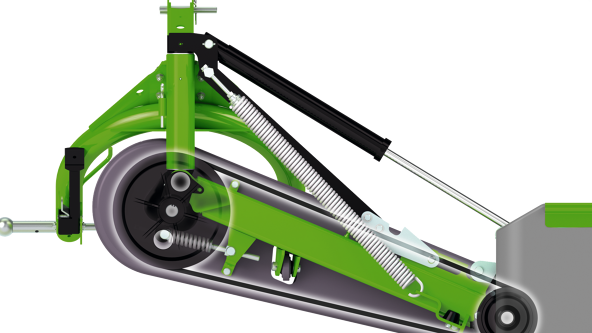

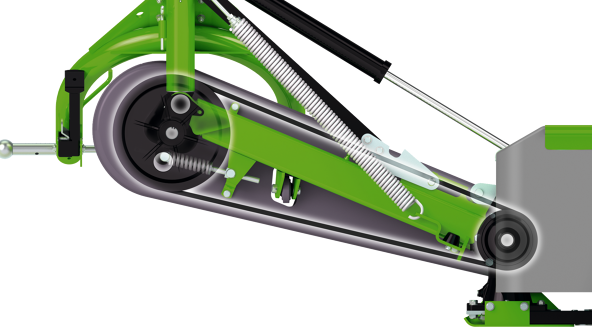

Drive and lifting height
The elastic V-belt drive ensures efficient power transmission, is automatically tensioned, rotates at 540 or 1000 rpm and also serves as overload protection.
The automatic lifting kinematics with cam disc and cam track enable a large lifting height and lifting parallel to the ground. This prevents cutting into the sward at the headland.
The automatic lifting kinematics with cam disc and cam track enable a large lifting height and lifting parallel to the ground. This prevents cutting into the sward at the headland.

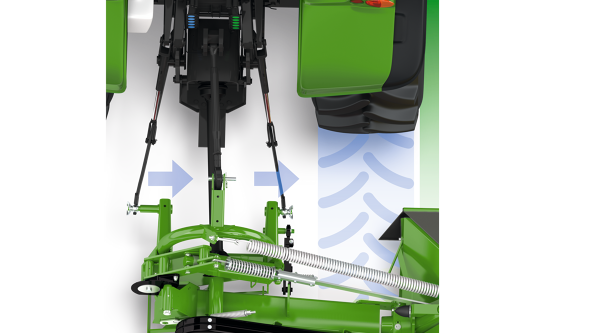

Flexible track adjustment
The adjustable lower link bolts allow easy adjustment to suit a range of tractors. The working width of the front mowers can also be flexibly adapted for optimum overlap.
DriveGuard
The Fendt DriveGUARD overload protection system on the compact angle drive reliably protects the mower and transmission from damage caused by foreign objects in the crop flow. The overload disc is connected to the drive train and the mower disc. If a single mower disc is blocked, the DriveGuard disc shears off at six predetermined breaking points and interrupts the drive train.

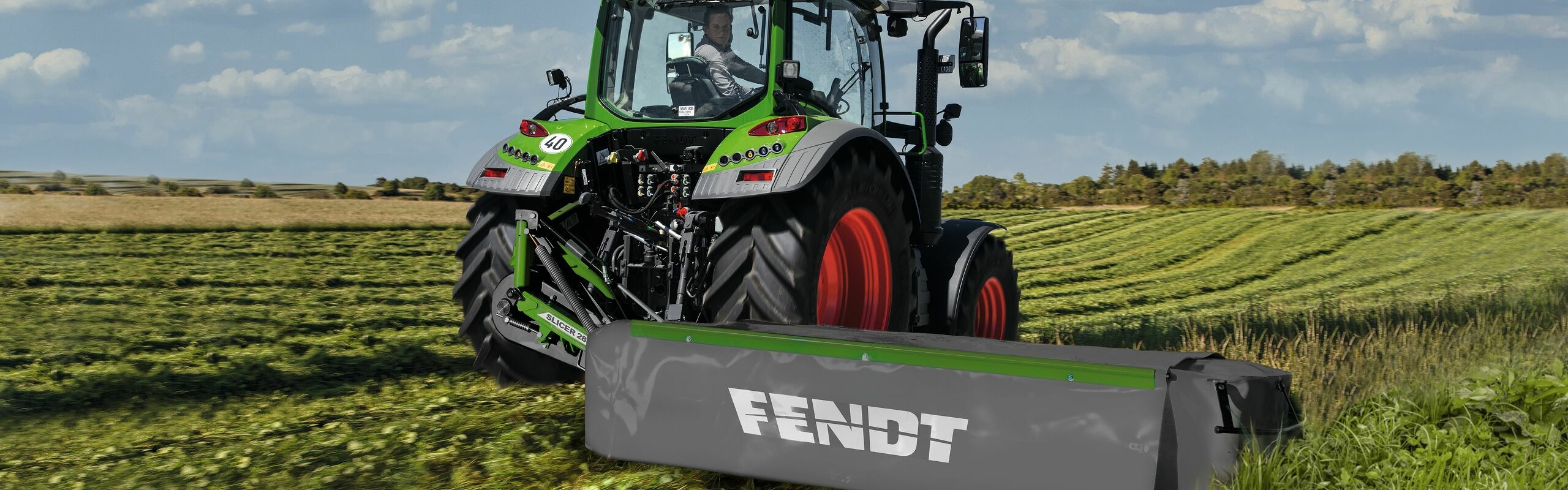

Because a lightweight design and durability does go hand in hand.
Fendt Slicer ISL mowers feature a weight-optimised design and low power requirement, so that even small tractors can be used to work large widths. The discs, which run in pairs, as well as the flat structure of the cutterbed, ensure the perfect cut.
Model overview
Working width | Number of cutting discs | |
Slicer 2460 ISL | 2,42 m | 6 |
Slicer 2870 ISL | 2,82 m | 7 |
The perfect lift
The Fendt Slicer with side hitch and spur gear drive stands out from the crowd thanks to its exceptional user friendliness. Only one hydraulic cylinder is needed for lifting on headlands. The rear power lift does not have to be engaged for lifting. The cutterbed always lifts parallel to the ground surface. You can also switch easily between working mode and transport mode by actuating a hydraulic valve. You can also benefit from the compact transport position and the centre of gravity which is close to the tractor. This ensures safety and stability on the roads.
Maximum lifetime and stability
Fendt Slicers in the ISL series have no inner shoe and have been specially designed for particularly difficult terrain. Especially on extreme slopes, mowers without an inner shoe prevent the forage from being pushed up. This ensures optimum forage flow and a clean cutting pattern even under extreme harvesting conditions.
Well-protected
With Fendt Slicer ISL mowers, you're always in safe hands. The spring-loaded impact guard protects the mower against damage. Furthermore, the individual mower discs are also protected by a shear bolt. The elastic V-belt with automatic V-belt tensioning also acts as overload protection.
