Intelligent and precise loading.

Loader work, safe, easy and convenient

There are undeniable advantages out on the field. Limit the tipping angle, for example, when loading very high trailers. End position damping ensures the front loader is raised gently and smoothly, which minimises loss of material through trickling. The Memo function is especially practical for repeating sequences, for example, the horizontal lower position can be targeted automatically. The weighing function gives you full control over the load weight.

CargoProfi

The intelligent CargoProfi

The new Fendt CargoProfi, available for the front loader model 4X/75, 4X/80, 5X/85 and 5X/90, is the product of continuous development of the tractor and front loader unit. The front loader has a measuring and tilt sensor, and a job computer to record and process a range of data and settings. The settings are easy to adjust and view in the Varioterminal.

Shake function and end position damping

The CargoProfi has a fast and effective shake function to ensure that all firmly packed material is dumped completely from the bucket. And for loose material, losses caused by trickling are minimised through the end position damping. The flow volume of the hydraulics is automatically reduced when approaching the highest or lowest position and the front loader reaches these without jerking.

Adjustable with a pre-set facility: Lifting height and tilt angle

The functions on the CargoProfi make work easier thanks to intelligent presettings. The operator can therefore limit the lifting height and tilt angle, and preset them in the memory. This is a decisive safety factor in low buildings or when loading very high trailers. With the memo function, arm and attachment positions can be saved for frequently used sequences and called up again when required.

Load precise target weights thanks to the weighing function

The unique weighing function of the CargoProfi enables recording loads as individual and total weight. You have full control over the loaded quantity and total weight of the transport vehicle, which means you can make full use of the loading volume. The buttonactivated weighing function is also fully integrated in the operating concept of the Fendt Vario. The information, including counter and target weight function, can always be viewed on the Varioterminal, so enabling precise loading.

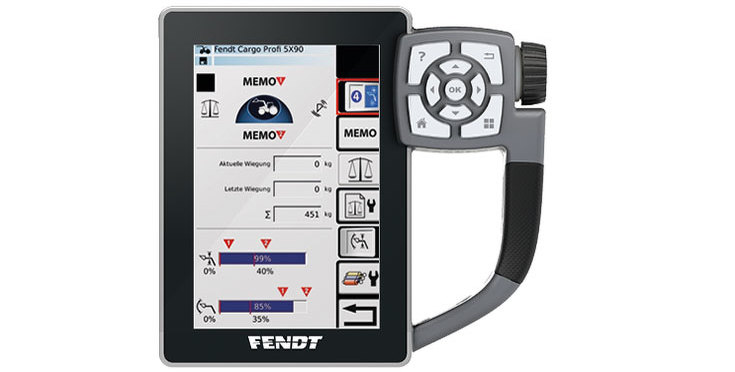

It couldn't be easier to make CargoProfi settings on the Varioterminal: Show the crossgate lever function, view single weight and overall weight data from the weighing system, limit the working range for the swing arm and attachment.

The Varioterminal and job computer on the front loader are connected via the CargoProfi socket.

The sensors for the Cargo Profi functions are located on the right side of the front loader, where they are well protected.

Two pressure sensors in the crossbeam enable the weighing function of the CargoProfi.

More gentle and efficient material handling.

Safe, easy and convenient

There are undeniable advantages out on the field. Limit the tipping angle, for example, when loading very high trailers, so that the side panels of the trailer are not damaged. End position damping ensures the front loader is raised gently and smoothly, which minimises loss of material through trickling. The weighing function gives you more control over the load weight.

Store the ideal setting using the memory function

Get recurring jobs done quickly and easily with the Fendt CargoProfi built-in memo function. With the Memo function, you can store common front-loader swing arm and attachment positions at the touch of a button, to go back them again and again. For example, you can guide the buckets exactly parallel to the floor when loading bulk goods.

The front window opens out all the way, even with the front loader swing arm fully extended. Choose the right cab variant in the series.

Variable damping – easy to adjust from the terminal

Easily transport and load even the most delicate goods with speed-dependent damping. To set the right cushioning level for the job at hand, you can individually adjust the applicable speed range.
