Master any terrain with ease: The Fendt Former 351 DS is the perfect rake for use with agile mountain tractors and delivers efficient forage harvesting at the highest level in difficult mountain terrain. Ideal for steep slopes and narrow areas - robust, manoeuvrable and clearly laid out.
Model overview
Model
Working width
Tine arms per rotor
Fendt Former 351 DS
3.60 m
10
Fendt Former Alpine single-rotor rake in detail
The rake in top position
Stability and precision on steep terrain

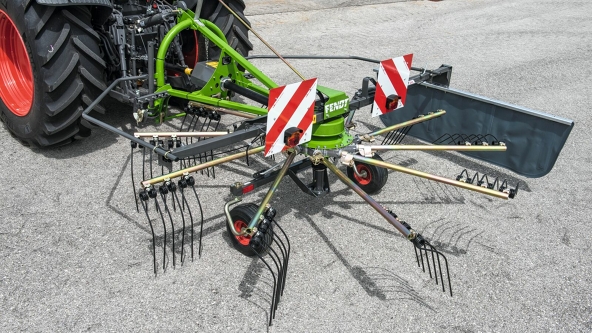

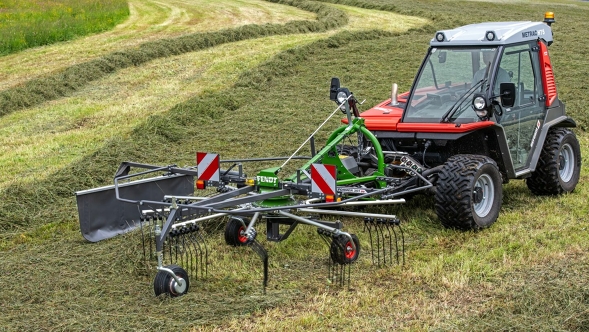

The Fendt Alpine Former 351 DS is specially designed for the versatile requirements of alpine terrain, is impressive with its low weight and rigid, compact attachment and is perfectly designed for front mounting on agile mountain tractors. The one-piece three-point headstock guarantees a stable connection to the tractor and ensures stable driving behaviour in hilly terrain. The low towing point and the movable lower link arms enable the rake with a working width of 3.60 m to follow the ground very well. This is further enhanced by feeler wheels for both front and rear use.
1/3
Flexible front or rear use

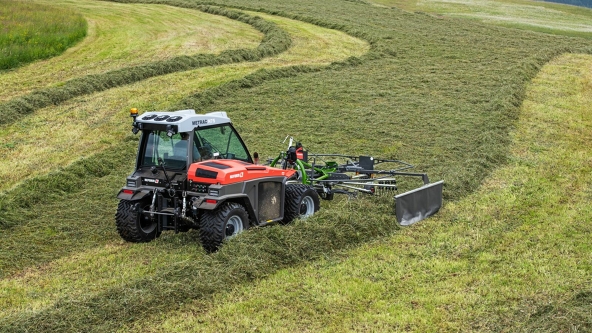

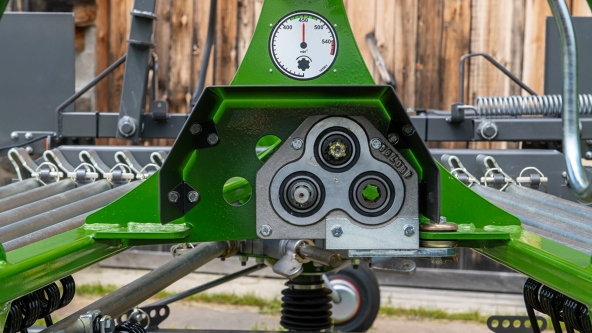

Thanks to the integrated universal transmission, the Fendt Former 351 DS is particularly impressive in both front and rear operation. Thanks to the optimised weight distribution due to the compact front attachment, driving control and stability are increased, which enables excellent and safe manoeuvrability, especially in steep and difficult terrain conditions and narrow areas - even when reversing. The improved visibility of the machine and the terrain to be worked on increases control and safety on steep meadows as well as during transport on narrow paths and tight bends. This also optimises feed quality, as valuable feed is not driven over. The swath delivery on the right-hand side remains constant regardless of the mounting position.
1/3
On the ideal track along the slope

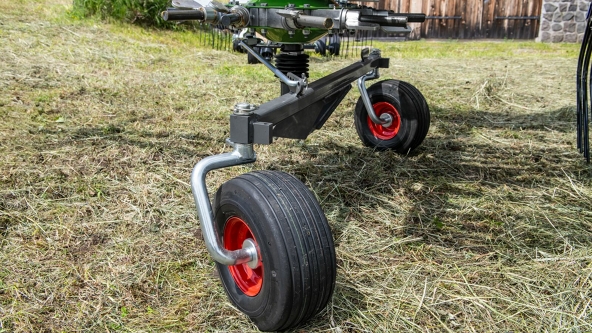

The Fendt Alpine single-rotor rake is equipped with a wide-track chassis with balloon tyres. The swivelling wheels can also be locked in place on sloping terrain. The wide-track chassis gives the rake a wider footprint, which significantly reduces the risk of tipping and slipping on sloping terrain. The lockable wheels ensure precise tracking and prevent uncontrolled drifting of the rake. This combination results in a more precise following of the ground contour and a reduction in the proportion of raw ash in the swath. At the same time, the sward and soil structure are protected thanks to the increased stability and better control, which prevents unnecessary soil compaction or erosion.
1/3
The optimum swath is a matter of adjustment

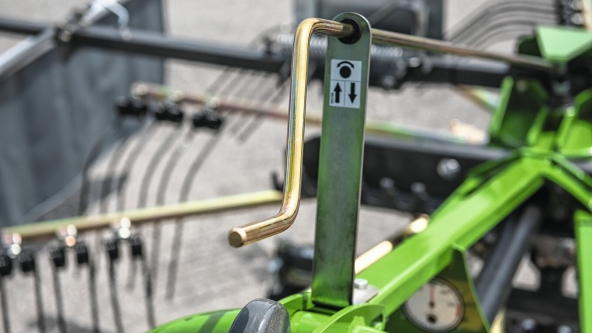

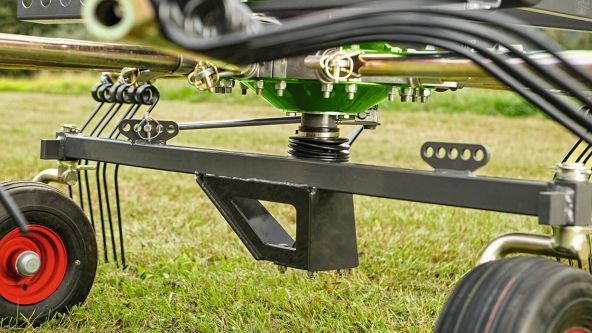

A key factor for a clean swath that is perfectly shaped for following machines on sloping terrain is the optimum setting of various parameters. The lifting time of the tines can be quickly adapted to the conditions by means of the easily adjustable cam track. The Former 351 DS offers precise height and tilt adjustment of the rotors to ensure soil-friendly harvesting of low-crude ash forage without losses. The raking height can be steplessly adjusted by means of a crank, the transverse tilt by means of shims on the rotor wheels. The clean and even swath delivery as well as the swath width can be individually adjusted via the telescopic and spring-supported swath former.
Technologies for the perfect swath on a slope.
Alpine harvest technology with the Fendt factor
The Fendt factor is not only evident in the development of innovative technologies or the use of high-quality materials, but can be found in every area of our machines. From the initial idea for solving customer requirements to the meticulous production and passion of our employees to the perfect forage and satisfied customers. The Fendt Factor stands for innovation, technology, Fendt quality and customer satisfaction – ingredients you need to be a truly successful harvester. Even in mountainous regions.

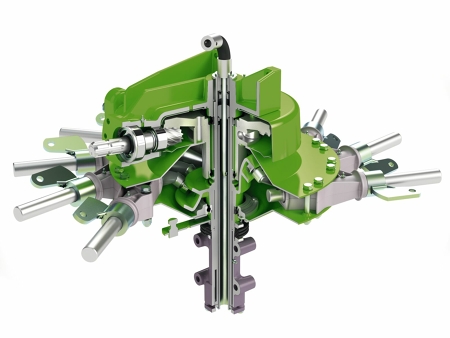

The enclosed design of the rotor heads of the Fendt Former single-rotor rakes protects all important components such as the cam track and transmission from dust and dirt. This ensures a high level of reliability and durability, even with intensive use.
High reliability
Tangentially arranged tine arms enable higher working speeds, which increases productivity and improves the efficiency of the rake.
Higher working speeds

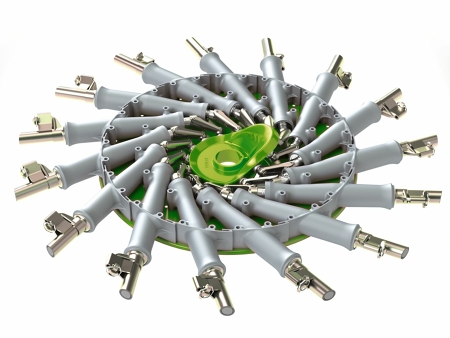

The optimised, sinusoidal cam track of the Fendt Former rakes ensures fast and precise lifting of the tines and optimum swath shaping. Thanks to the closed design with permanent lubrication and the small cam track diameter, wear is minimised and the service life extended. The tool-free adjustment option makes it easy to adapt the timing to the harvesting conditions.
Fast and precise lifting of the tines

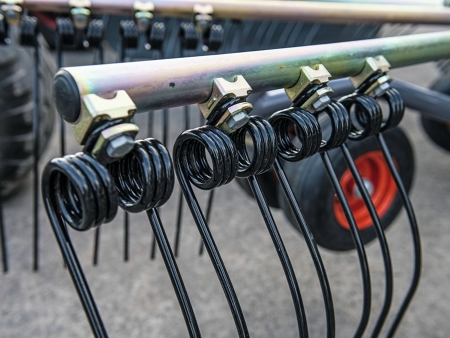

The tines of the Fendt Former rotor arms are individually bolted under the tine carrier, which ensures a stable and durable connection. Thanks to the smooth front of the tine carriers, no forage gets stuck and the special “flow drill” process ensures a very stable attachment. This design allows the tines to move freely, reduces forage contamination and ensures even and efficient swath delivery.
Large freedom of movement of the tines & reduced forage soiling
The way to your new Fendt Former
Next steps
Do you want to know more about the product? Our Fendt dealers will be happy to advise you. Find a dealer near you now.
With their compact design and flexible transmission, our various Fendt Slicer Alpine mowers have been specifically designed for the demanding conditions of mountain farming. They guarantee optimum efficiency and stability on steep terrain and at the same time offer a high degree of adaptability to the special requirements of alpine regions.

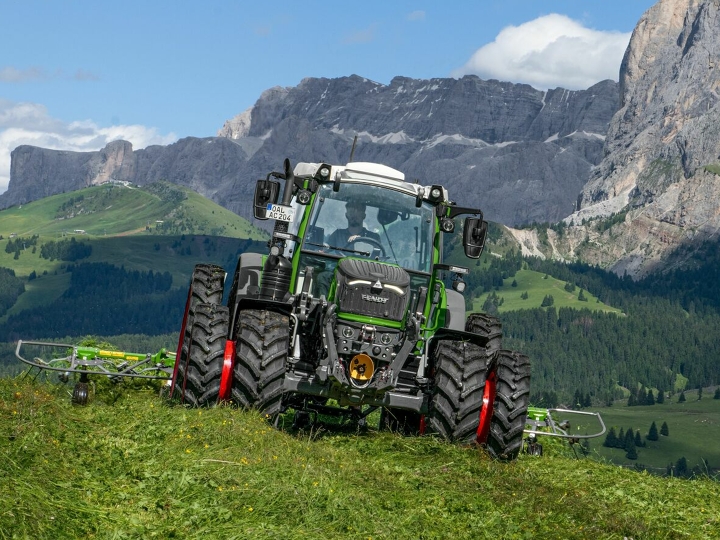

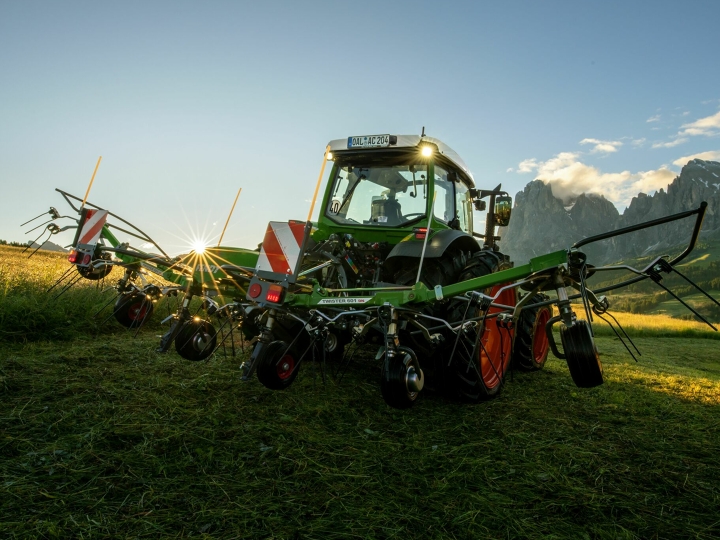

Our versatile alpine Fendt Twister tedders are designed for use in mountainous regions. Thanks to their lightweight, compact design and robust technology, the four and six-wheelers are ideally equipped to tackle even challenging terrain with ease.

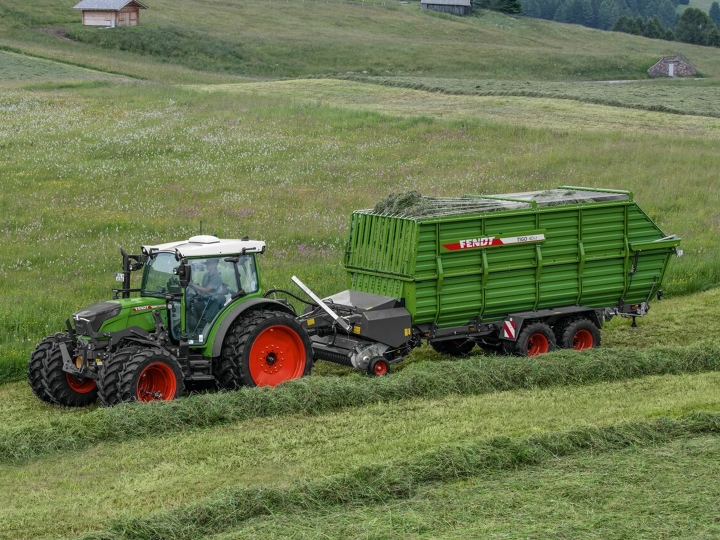

The Tigo ST series was specially designed for use at high altitudes. These low-set forage wagons fulfil the highest requirements for the challenges in mountainous regions, such as steep slopes and demanding terrain.
