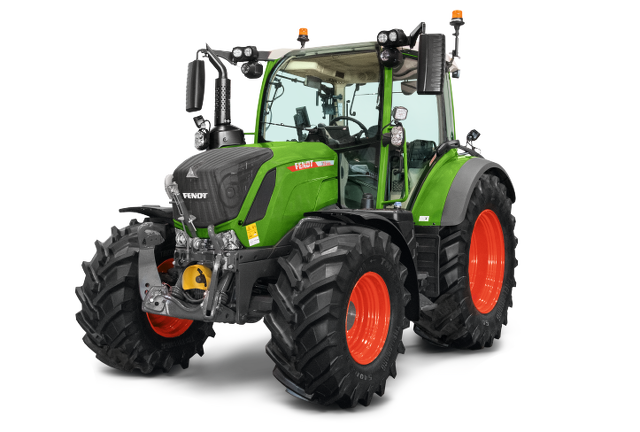

Fendt 300 Vario – the trailblazer of the compact standard tractors.

A Fendt 300 Vario is characterised by its thoughtful design down to the last detail. This latest generation includes four models in power classes ranging from 110 to 152 hp in the three configurations from Power and Profi up to Profi+. The fourth-generation Vario features the all-new FendtONE driver's workstation as well as the high-end model 314 Vario with 152 hp max. output. The concept seamlessly unites machine and office.

PRODUCT BROCHURE TECHNICAL SPECIFICATIONS

	kW	hp
311 Vario	83*	113*
312 Vario	90*	123*
313 Vario	98*	133*
314 Vario	104* 112**	142* 152**

_{*Maximum power ECE R 120}

_{**Maximum power with DP ECE R 120}

Experience the Fendt 300 Vario in 360°.

360°

Fendt 300 Vario Spotlights. Special. Better.

This overview shows the special Fendt solutions – our Fendt Spotlights – that make the difference and simply make your work better every day.

VisioPlus cab
FendtONE driver's seat
Fendt DynamicPerformance
Three front power lift versions
Light, agile, stepless gliding at just 33 kg/hp
Exceptional ride and operating comfort
High ground clearance for crop protection
Perfect modularity
Fendt Smart Farming

The new FendtONE driver's seat.

FendtONE: intuitive use, connecting machine and office for the very first time

For the first time, the intuitive FendtONE operating philosophy combines machine operation with direct communication in the office. The concept is supplemented with an optional infotainment package and 4.1 sound system. The new driver's workstation includes a large 10" dashboard, an armrest with multifunction joystick and, depending on the configuration, a 12" terminal. With the armrest anchored to the seat, you can easily adjust any setting without much movement at all. There is also a second optional 12" terminal, which you can stow half way into the cab roof. The 3L joystick opens up new possibilities.

Show more details

12" terminal

Depending on the equipment variant, the Fendt 300 Vario now features the 12" terminal, which includes all the guide-assist systems, such as Contour Assistant, SectionControl and VariableRateControl.

EHS valves

The lower control level includes the LED display for each setting. The driver immediately sees whether buttons have been re-allocated by the colour concept. By default, these are the hydraulic valves.

Hand throttle, speed ranges and adjustment rockers

In the middle operating level, from the left, we have the following: hand throttle, speed ranges, adjustment rockers 1 and 2 (freely assignable), PTO actuation as well as front power lifts and rear power lifts with depth adjustment.

Operation of the front and rear PTO shaft

White buttons

Five white buttons ready for you to assign: You have the option to freely assign functions to specific controls. Never before has the workplace seen this level of individualisation for different drivers.

Controls

Here are the control buttons for the all-wheel drive, differential locks on the left, power-lift settings on the right and in the middle the five freely assigned white buttons.

Pushdial

Use the central pushdial to decide what to display on the Fendt 300 Vario. This includes four quick access keys for Back, Launchpad, Overview, Individual Operation Manager (IOM) and switching between terminal and dashboard.

Dials

You can easily manage the air conditioning and infotainment with two dedicated dials.

Crossgate lever

The crossgate lever offers sensitive control without you having to reach over two control valves. Complex implement functions can be controlled with the optional third and fourth hydraulic circuits. These are activated and controlled by pushbuttons on the crossgate lever.

Pushbuttons

This is where you can easily manage the usual transmission and driving functions with pushbuttons: including two engine speed programs, two cruise control settings and a new dial-controlled active cruise control setting.

Multifunction joystick

As well as the familiar clover leaf operation, the new multifunction joystick includes two controls for proportional valve control as well as four freely assignable white keypads.

Central dashboard

Shown here is the main digital cockpit where you can easily configure the main function groups. Your road driving info is on permanent display on the left and right. On models without the 12" terminal, you will find the settings for the main groups in the middle; power lifts, hydraulics, engine and transmission, onboard computer with consumption rates, ventilation, lighting, front axle suspension, valve assignment, as well as service and diagnostics. It's all in your control with the new pushdial on the right-hand armrest.

VisioPlus cab: perfect all-round view

The Fendt VisioPlus cab is a true wonder of visibility and space, with a 77° panoramic view. The windscreen arches into the roof without an obstructive cross bar, giving you a continuous view of the extended front loader. The curvature means any material just slides off. To the ground and straight ahead, your line of vision is improved with the compact bonnet and waisted half-frame.

The Fendt added power concept, DynamicPerformance.

Greater area coverage and higher productivity.

The smart power-boost concept Fendt DynamicPerformance (DP) on the Fendt 314 Vario releases up to 10 hp more power on demand. This is regulated depending on the operating conditions at any speed. You can also benefit from PTO power either at a standstill, for soil cultivation or during transport. The benefit is a lightweight tractor with more power and less fuel consumption per hectare.

Three front power lift versions to suit every task.

The power lift with vibration damping is available as standard, with position control as well as an exclusive comfort front power lift with position and load relief control.

Sits particularly close to the vehicle, which means the entire hook-up is very manoeuvrable
Max. lift capacity 3,130 daN
Lower links with particularly good lower grip (fold in to park)
Lifting cylinder protected by bellows against stone impacts
The vibration damping, fitted as standard, prevents bounce and guarantees safe driving and comfort
Top links with solid brackets and easy handling

Ahead of the rest in more ways than one.

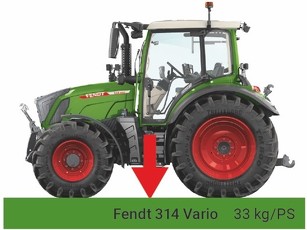

Fendt 300 Vario cut-out with green bar showing 33 kg/hp.

Light, agile, stepless gliding at just 33 kg/hp

Soil compaction reduces yield, and that's true for arable farming and grassland. Extensive tyre options and the low weight-power ratio of the Fendt 300 Vario are gentle on your soil. At just 5010 kg or 33kg/hp, the Fendt 314 Vario is a real lightweight.

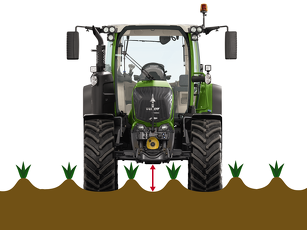

Fendt 300 Vario cut-out showing the high ground clearance for plant protection.

High ground clearance for crop protection

Plant protection and fertilisation in late growth stages increase yield. The Fendt 300 Vario offers a high ground clearance of up to 500 mm and makes light work of special crops.

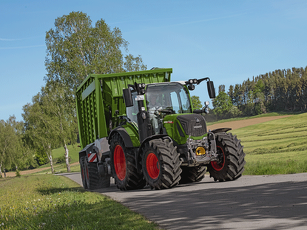

Fendt 300 Vario driving on the road with a Fendt Tigo.

The superior driving and working comfort of an HGV

The smart 3-in-1 system guarantees maximum ride comfort and ease-of-use: self-levelling front axle suspension, optional cab suspension and active shock load stabilising. This is combined with the exclusive Fendt Reaction steering for safe straight-ahead driving, which enables particularly sensitive and safe control and has excellent responses for safe straight-ahead driving.

Perfect modularity with the configuration variants: Power, Profi and Profi+.

You can tailor the Fendt 300 Vario to your particular needs. With 210 options and 150 tyres and tracks ex works. You can opt between 2 different settings for each equipment variant.

Power

Power Setting 1*

No crossgate lever
One linear module (rocker pair) to control the hydraulic valves

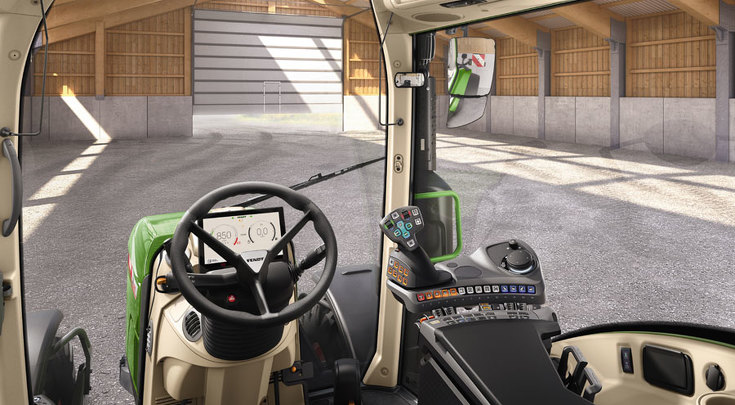

Power Setting 2*

Crossgate lever
No linear module (rocker pair)

Profi

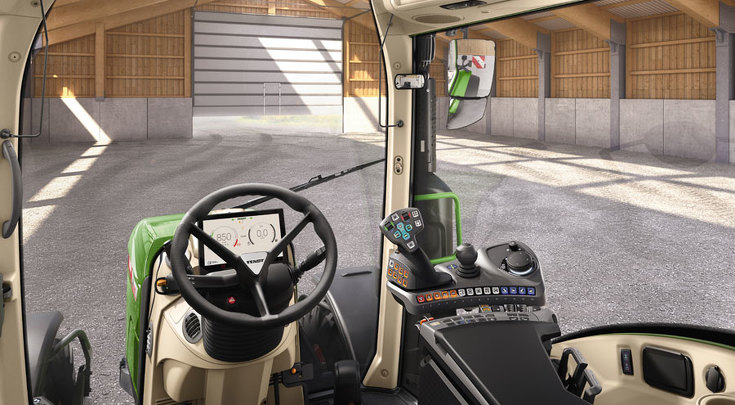

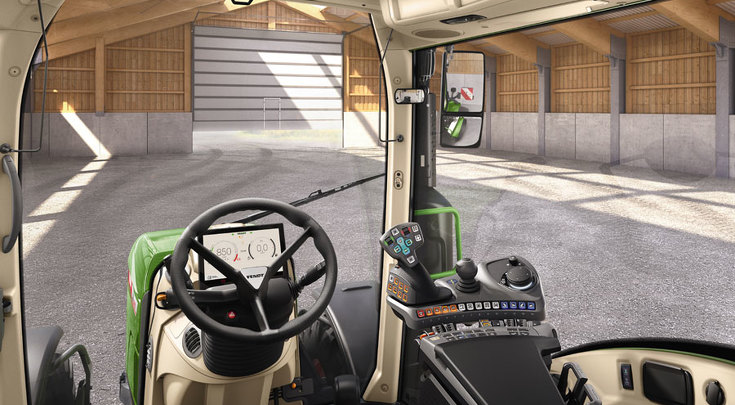

Profi Setting 1*

Crossgate lever
One linear module (rocker pair) to control the hydraulic valves

Profi Setting 2*

3L joystick
One linear module (rocker pair) to control the hydraulic valves
12" terminal

Profi+

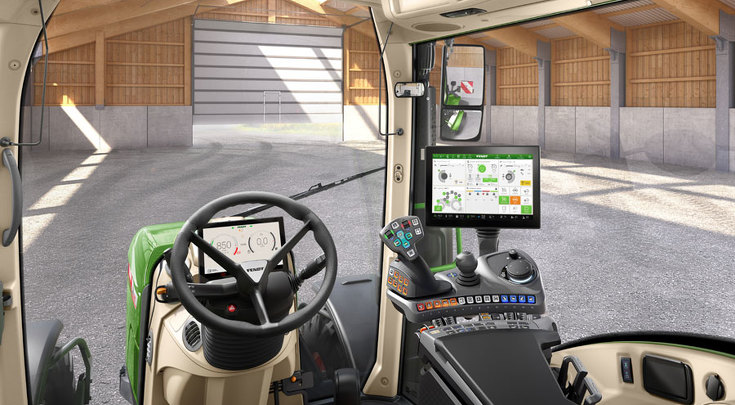

Profi+ Setting 1*

Crossgate lever
One linear module (rocker pair) to control the hydraulic valves
12" terminal

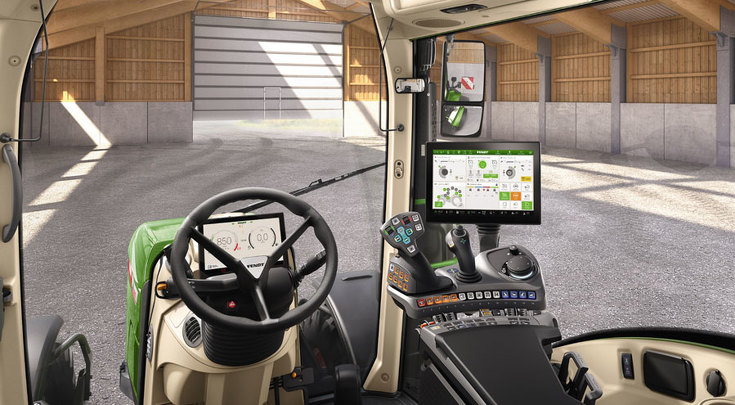

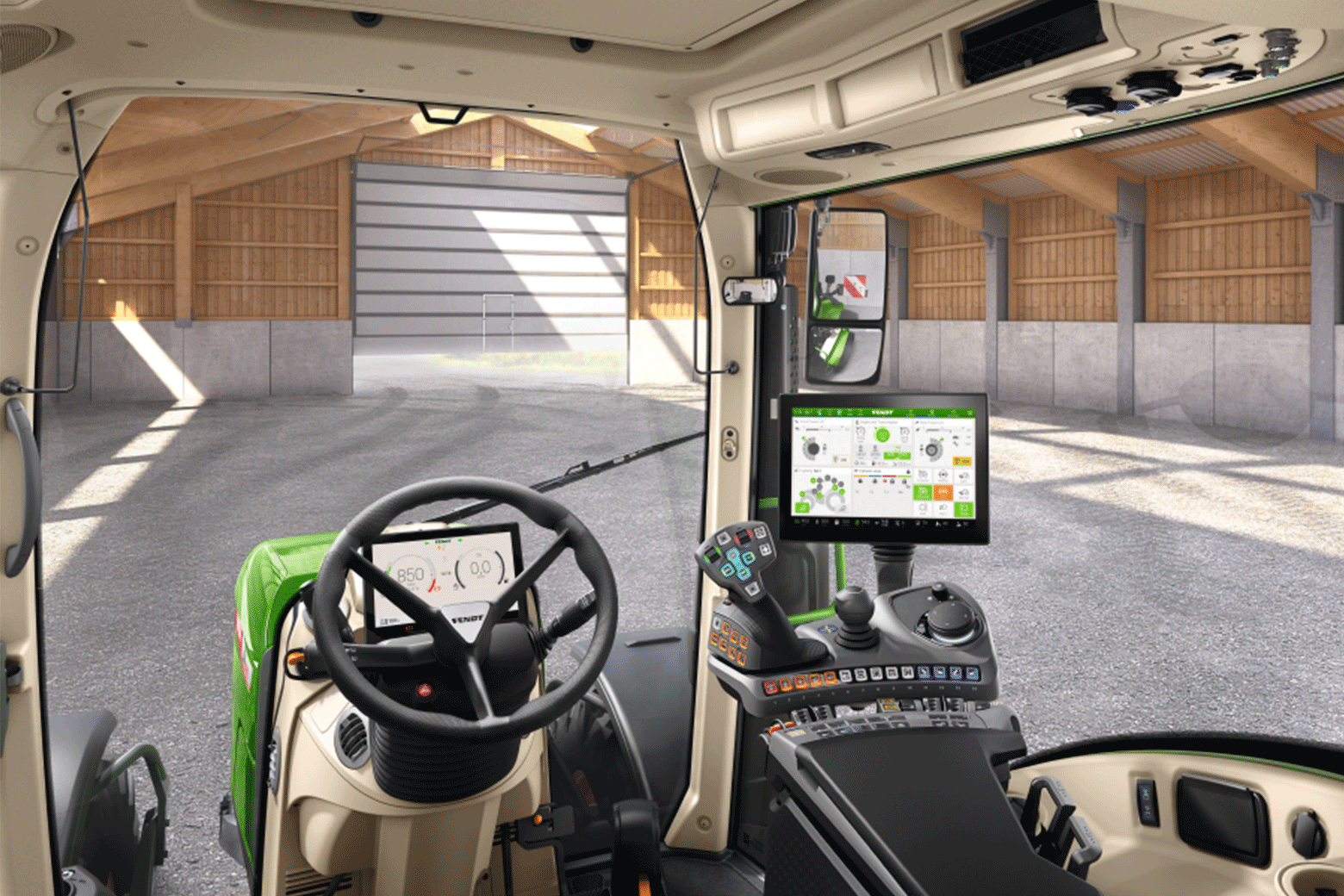

Profi Plus Setting 2 configuration variant as seen from the driver's seat.

Profi+ Setting 2*

3L joystick
One linear module (rocker pair) to control the hydraulic valves
12" terminal

_{*The illustrations show standard equipment with optional front power lift module.}

FendtONE: Seamlessly connecting office and machine.

Image showing FendtONE Offboard and Onboard.

Consistent and intuitive operating philosophy.

FendtONE merges your machines and your office into one control unit for the first time.

Practical advantages at a glance:

Intuitive and standardised controls
Master data updated centrally
Easily send data to the machine terminal and vice versa - wherever, whenever
Open and vendor-independent system, with the option to manage mixed fleets
Data sovereignty always lies with the customer

FIND OUT MORE

Fendt Smart Farming: Tailored to your needs.

Choose from four modules.

In the field of smart farming, Fendt offers you a wide range of products to help you use your machine even more purposefully and at the same time work more comfortably. A total of four modules are available, which you can select as needed:

Guidance system
Agronomy
Telemetry
Machine control

Each module includes a basic package of the startup applications you need. You can also extend the modules with optional extras.

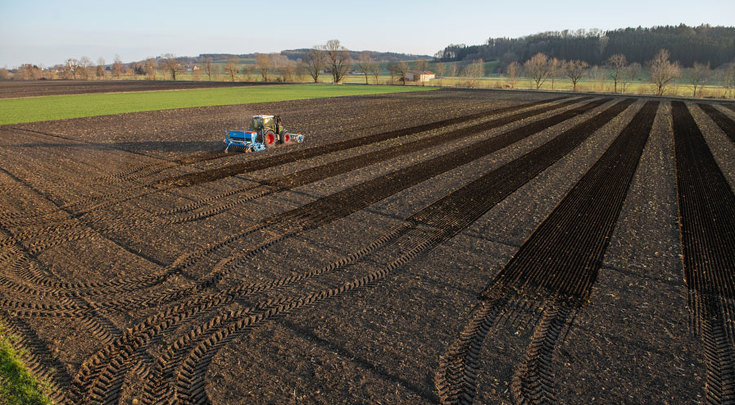

Fendt 300 Vario drilling on the field with a Lemken hookup.

Guidance system

With Fendt's lane guidance, you work with the highest precision at all times – even at night and in poor visibility.

Basic package:

Tractor ready for lane guidance
Fendt Guide app

Optional:

Choice of different receivers (NovAtel or Trimble)
Fendt Contour Assistant
Fendt TI
Fendt TI Headland

FIND OUT MORE ABOUT LANE GUIDANCE

Agronomy

With the help of the job-based documentation system Fendt TaskDoc and the job management system Fendt Task Manager, you can cut down on your desk time.

Basic package:

Fendt TaskDoc app and Fendt Task Manager
Create orders and follow-up reports on the machine
Full overview of completed jobs

Optional:

NEXT Machine Management

FIND OUT MORE ABOUT AGRONOMY

Man in front of the tractor, holding a tablet which is open on a Fendt Connect page.

Telemetry

Fendt Connect is the central telemetry solution for Fendt machines. It lets you access your machine data no matter where you are.

Basic package:

For the best analysis and optional fleet management
Use Fendt Connect to display and store data such as machine position, fuel consumption, speed and error codes
Storage to evaluate work processes and machine condition
Data is sent via the mobile network, so you can check machine data wherever you are

FIND OUT MORE ABOUT TELEMETRY

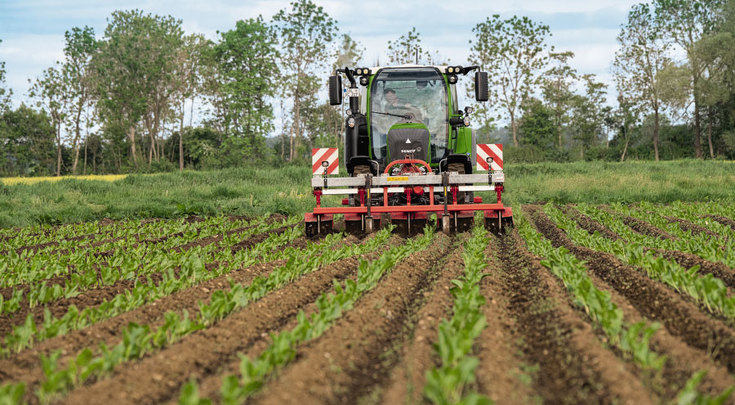

Fendt 300 Vario at work with service wheels in special crops.

Machine control

With Fendt Section Control, Fendt Variable Rate Control and Fendt ISOBUS, your tractor and attachment can interact perfectly.

Basic package:

Prerequisite for additional ISOBUS functions
Simple and intuitive control of ISOBUS attachments with standardised cross-vendor interface as per Standard ISO 11783
The tractor terminal and attachment are attached using a socket at the rear

Optional:
