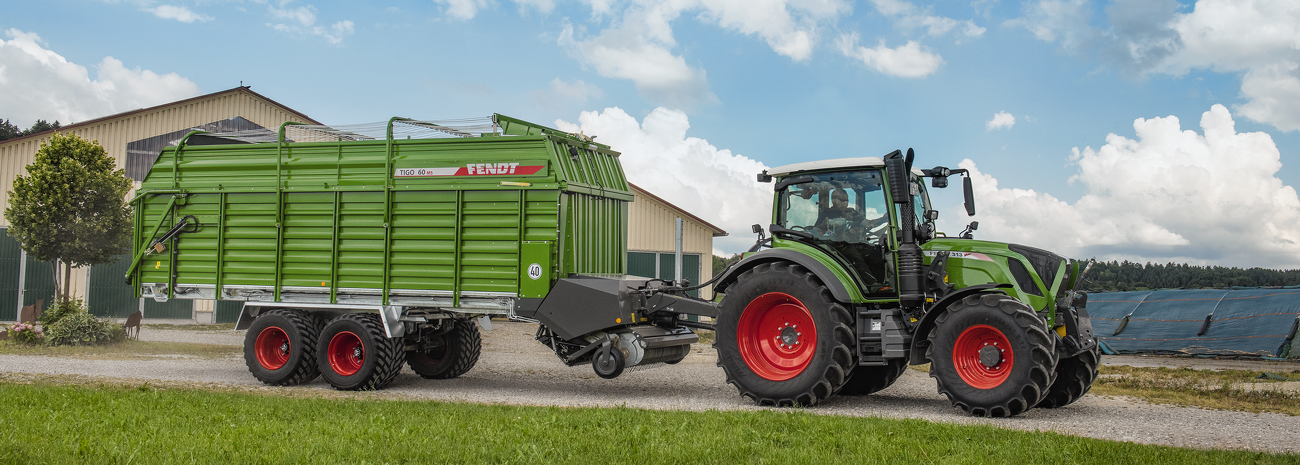

The next level of harvesting technology - Fendt Tigo.
Fendt Tigo ST, S, MS, MR and MR Profi.

Optimum pick-up power with extended pick-up

The automated pick-up on all Fendt Tigo models increases the efficiency of your loading wagon. This pick-up is unique, especially on the Tigo ST, S and MS swing arm wagon. Five rows of tines and a working width of 1.80 m provide maximum pick-up power. Thanks to the very closely-grouped 54 mm springloaded tines. The Fendt Tigo guarantees optimum raking work and optimum forage transfer to the loading unit, even with short, dry grass.

Preserve the sward with perfect ground following

The sensing roller protects the tines of the pick-up against piercing the ground through clear guidance. It maintains the appropriate ground clearance even in hard and uneven ground conditions and skates around the dirt. Smart technology means it supports you only when you need it, rather than being constantly there. You can individually set the sensing roller depending on the harvest conditions. Apart from optimum feed quality, the Fendt Tigo also takes care of soil protection. The adjustable, castor-steered gauge wheels support the pick-up and also protect the sward even when making tight turns in the field.

Clean work:
A successful harvest all comes down to the best possible pick-up. The free-swinging pick-up adapts optimally to the ground. This not only makes it smoother to run and picks up the swath very cleanly, but also increases efficiency. During this process, the baffle plate with windguard applies even pressure on to the swath, and at the same time supports the conveyor effect of the pick-up. The interplay of the windguard and baffle plate reduces friction and ensures a continuous crop flow.

Long life:
The Fendt Tigo pick-up does not require a cam track, which makes it absolutely maintenance-free and smooth running. To prevent damage to the machine or animals, all tines are secured against loss as standard. The structure, which features hot-dip galvanized components, protects the pick-up against wear caused by corrosive silage effluent, rust and weathering. The result is low maintenance and long service life.

The pick-up gauge wheel that can be fitted in the centre of the Tigo MR and MR Profi models, ensures that the pick-up is guided safely even when ground conditions are tough. This guarantees excellent feed quality because the dirt remains on the ground.

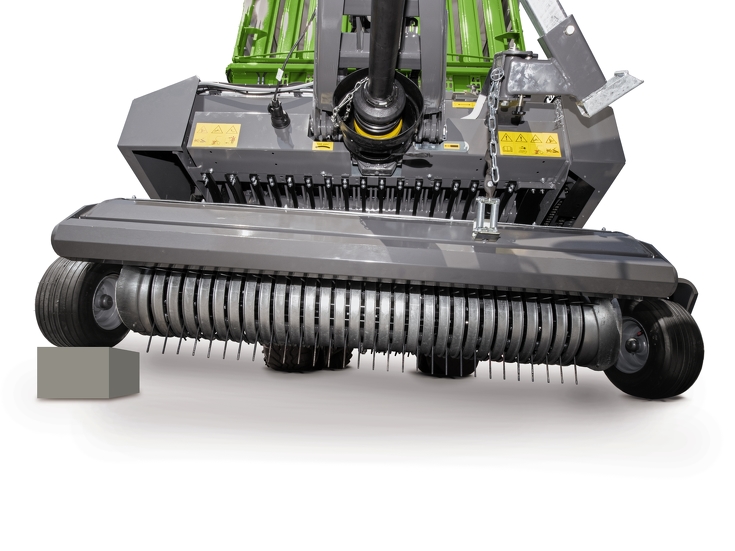

The automated pick-up can swing freely. This improves ground following and raking.

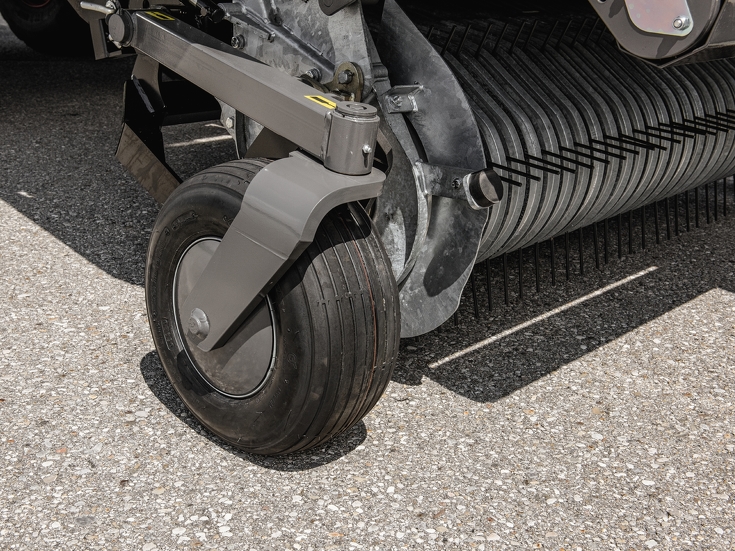

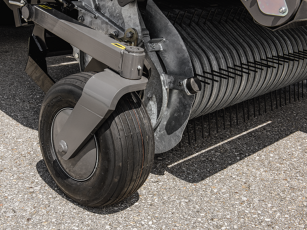

The trailing gauge wheels of the automated pick-up release it on corners, can be turned and thus protect the sward. Adjust the height of the wheels with a series of holes.
The pick-up gauge wheel that can be fitted in the centre of the Tigo MR and MR Profi models, ensures that the pick-up is guided safely even when ground conditions are tough. This guarantees excellent feed quality because the dirt remains on the ground.
