Uniform threshing – clean separation.

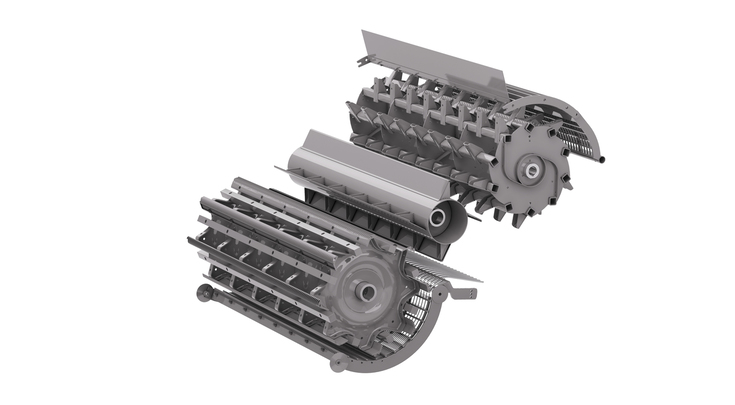

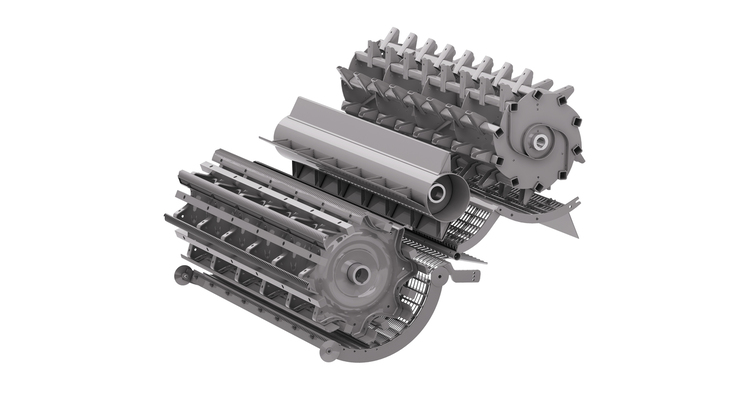

High-capacity threshing cylinder

The high capacity of the threshing cylinder on our L-Series is down to its large 600-mm diameter. The result is perfect threshing and less broken grain. The high inertia threshing drum runs very smoothly, even under difficult harvesting conditions. It is very gentle in handling both the grain and straw.

Smart concave

The concave features differentiated wire clearance. The clearance in the back section of the concave is twice as large as in the front area. This arrangement provides the best threshing and separation results. To optimise the threshing quality, you can adjust the concave spacing both at the front and back from the comfort of your cab.

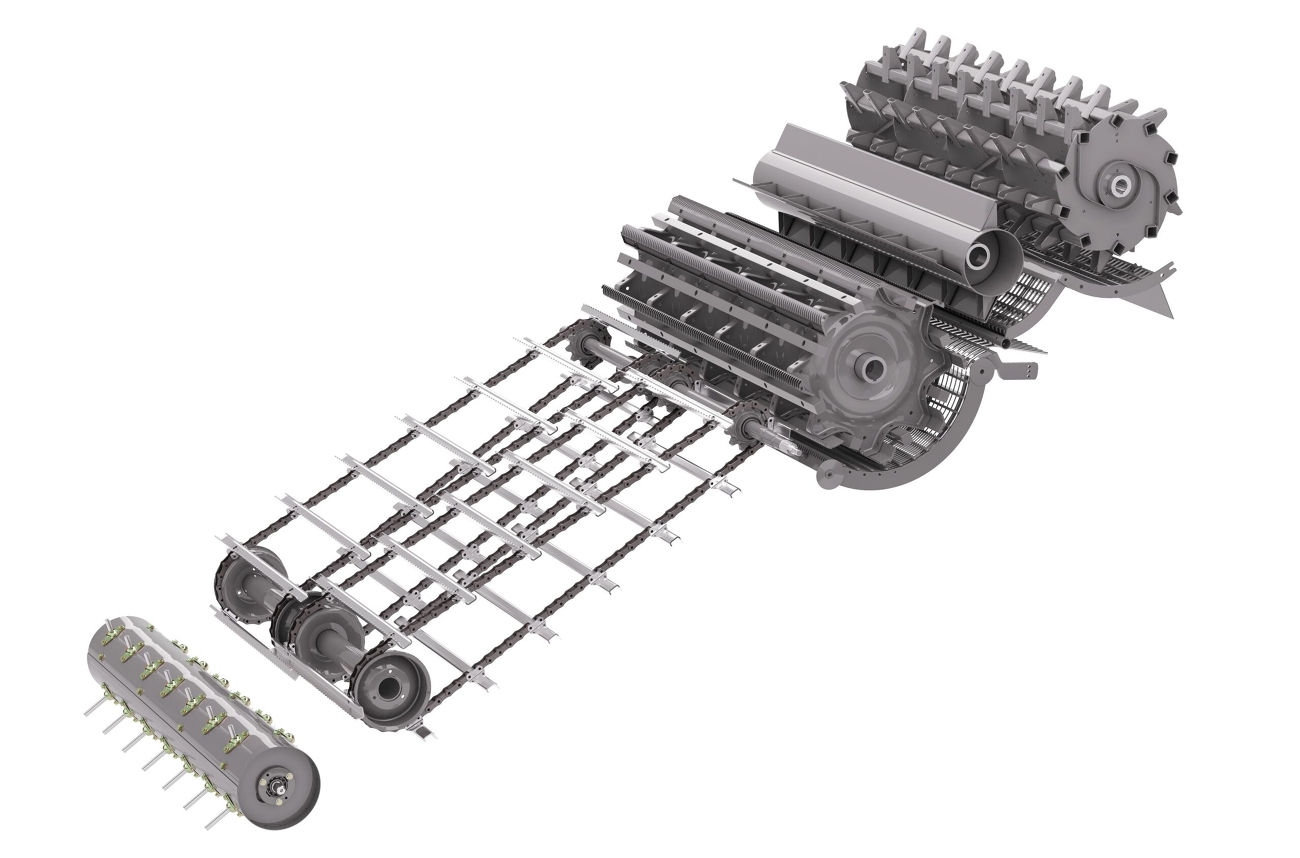

Multi Crop Separator Plus

ABC module

Concave

Intake chains

Power Feed Roller

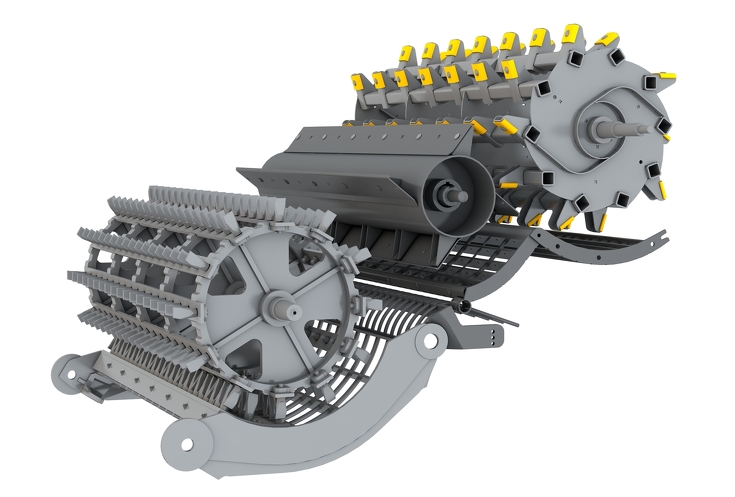

In the standard version, the ABC (Active Beater Concave) module, which is an extension of the concave on the beater, really shows its strengths. This module enhances the separation performance and the straw is fed directly and very uniformly onto the straw walkers.

Extras in the MCS Plus version

In this variant, the L-Series combines are equipped with the Power Feed Roller (PFR) and Multi Crop Separator Plus (MCS Plus). The PFR ensures optimal crop flow from the cutter unit to the feed channel. It is attached directly to the crop elevator. Rotating at a speed of 267 rpm, it picks up any crop over the full width of the intake. The MCS Plus separating concave has an enormous separating area. As much grain as possible is separated out before the crop even reaches the straw walkers. What is also special about our MCS Plus combines is that the separator concave can be swung up over the rotary separator. An electric motor brings the concave into the desired position as need; tools are not required.

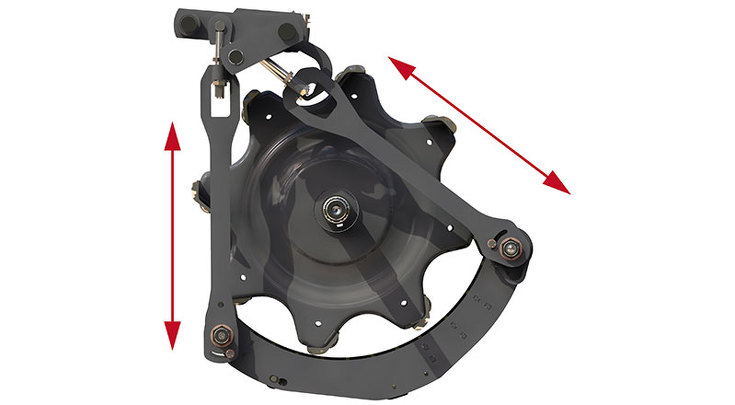

Electrical threshing unit

Perfect at the front and back – the front and rear concave openings can be adjusted separately and electrically, so you can adapt the threshing unit to any harvesting conditions from the comfort of your cab.

MCS Plus - swung in

The separator concave is rotated under the Multi-Crop Separator (MCS). This setting improves the separation performance in long straw and wet conditions, enabling high output, even under difficult conditions.

MCS Plus - swung out

The separator concave is completely above the Multi Crop Separator. This setting is recommended primarily for crops that only require light threshing and in dry conditions.

Economical use – for all kinds of crop.

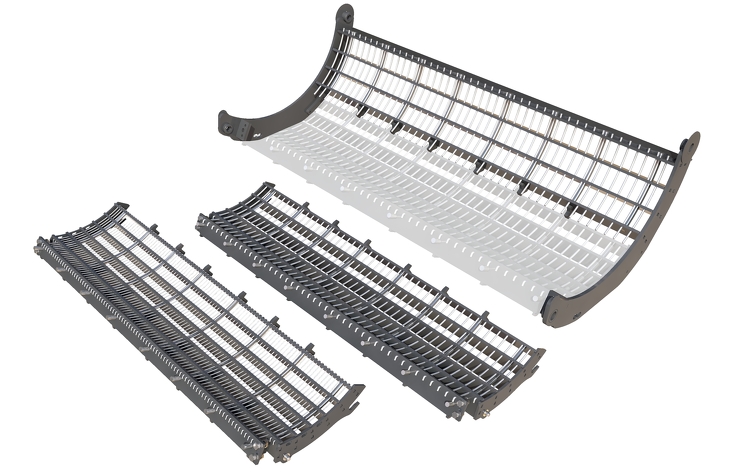

Exchangeable sectional concave

For arable farmers and contractors who need to harvest a variety of crops, the Fendt L-Series can be converted in a flash with the new sectional concave. The front concave segment can be removed easily and replaced through the open stone trap. Two front concave segments are available: one segment with 14 mm wire spacing for intensive threshing when harvesting grain, and one with 24 mm wire spacing for maize, soybean or sunflower harvesting. For enhanced grain separation, the universal segment has a wire spacing of 24 mm at the rear.

Economical use – for all kinds of crop.

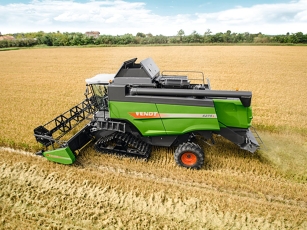

Rice – the special version

Since harvesting rice poses very special challenges for a combine, we offer you a dedicated model for this application. To minimise material wear, many components here have been strengthened and manufactured from very low-wear material. We have replaced the bars on the threshing drum with pins to ensure gentle handling of the sensitive grains of rice. For harvesting on very moist ground, our rice model is equipped with crawler tracks.

Mosaic

Wheat

The 14-mm narrow wire spacing of the sectional concave produces perfect threshing results when harvesting grain.

  • Mosaic

    Wheat

    The 14-mm narrow wire spacing of the sectional concave produces perfect threshing results when harvesting grain.

  • Mosaic

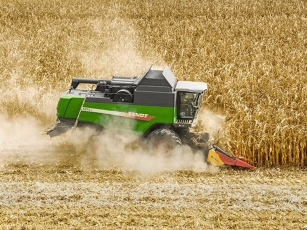

    Maize

    Besides the sectional concave, extensive maize equipment is also available for maize harvesting.

  • Mosaic

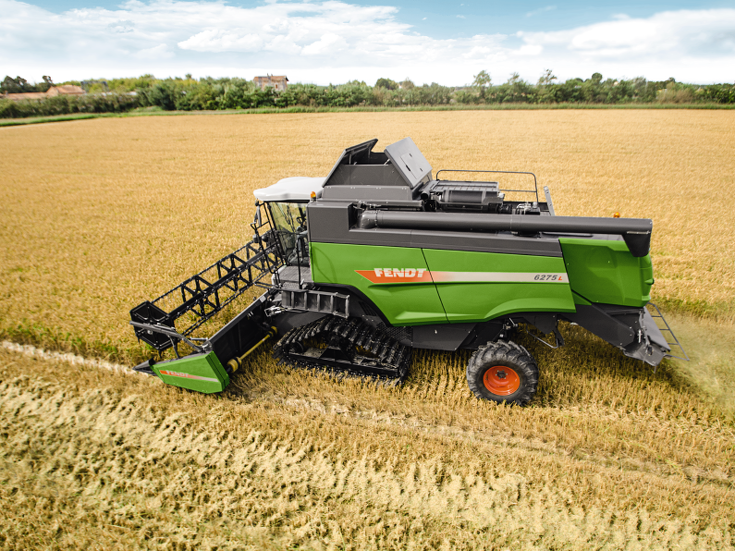

    Rice

    To minimise material wear caused by dirt entering the machine, we use very low-wearing materials in our rice combine version – especially for the machine components that come in direct contact with the crop.

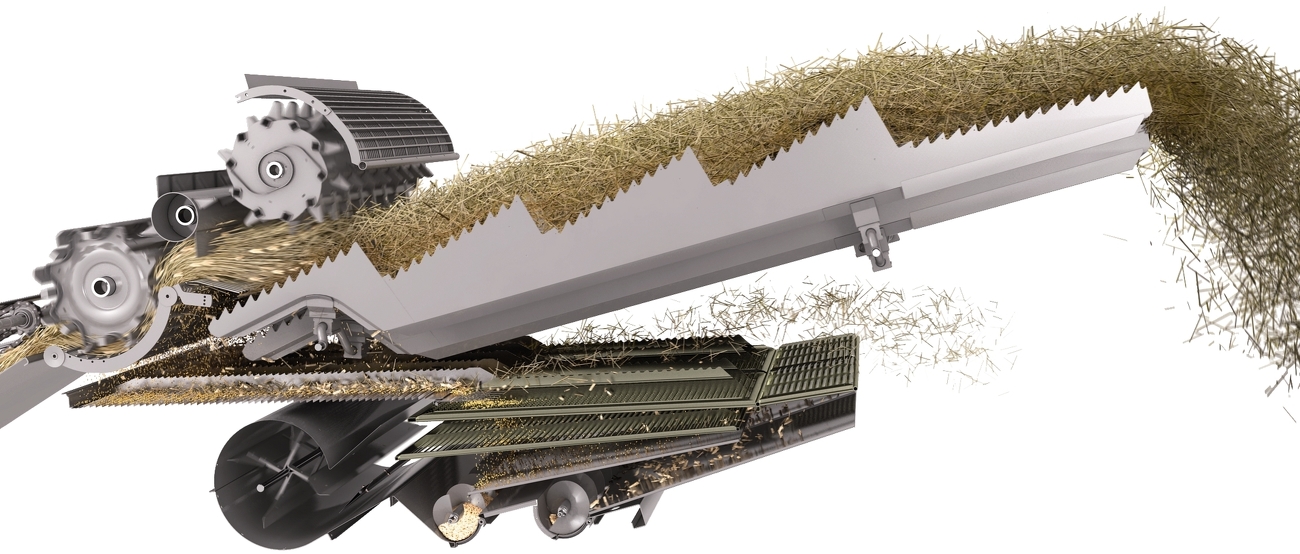

Efficient straw management.

Optimal residual grain separation

The 4,256-mm high-capacity walkers, with four steps each, produce a thin straw mat. Combined with a high stroke and the active, open back walls, this further boosts separation. You can be sure that even the last grain is separated efficiently. Gentle handling of the crop perfectly maintains the structure of the straw.

Fine chopped material

Our L-Series is equipped with a straw chopper as standard, to deliver clean chopping results. The double serrated knives ensure a clean cut and reduce power consumption. The infinitely adjustable counter knives, an additional pivoting dimple plate and electrically adjustable straw deflectors guarantee complete control over the quality and spreading of the chopped material.

Easy switchover

It just takes a single hand movement to select either swath or reap mode. The straw is handled gently during the threshing process, so you produce the best quality straw for bales, fodder, bedding or energy production.

Mosaic

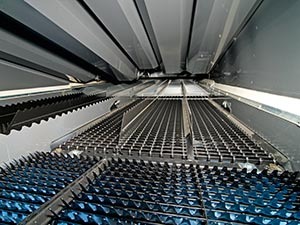

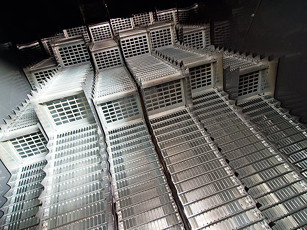

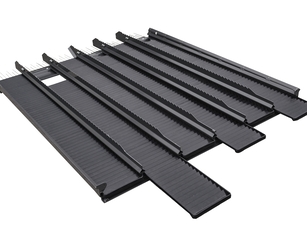

Straw walkers

The active back walls of the steps promote effective grain separation. We have strengthened the first step for grain maize harvesting.

  • Mosaic

    Straw walkers

    The active back walls of the steps promote effective grain separation. We have strengthened the first step for grain maize harvesting.

  • Mosaic

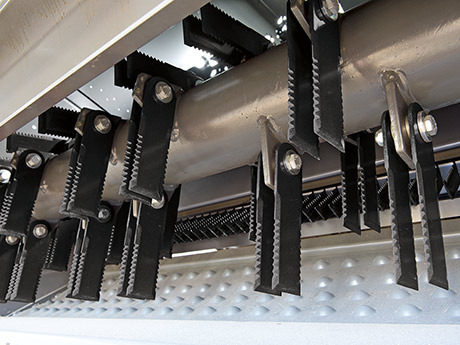

    Straw chopper

    An adjustable dimple plate comes as standard and ensures a uniform length of the chopped straw.

  • Mosaic

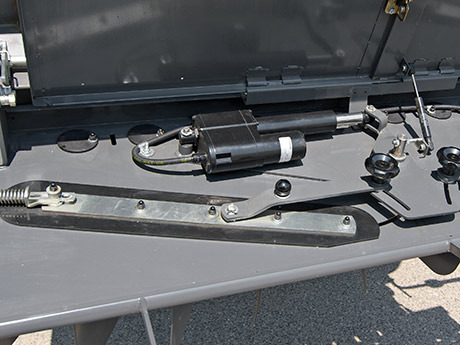

    Electrically adjustable deflector plates

    Electrically adjustable deflector plates are also available as an option. The distribution can always be best set from the cab.

  • Mosaic

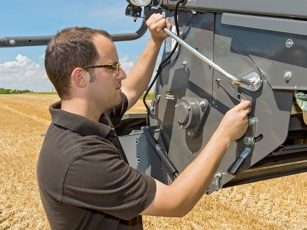

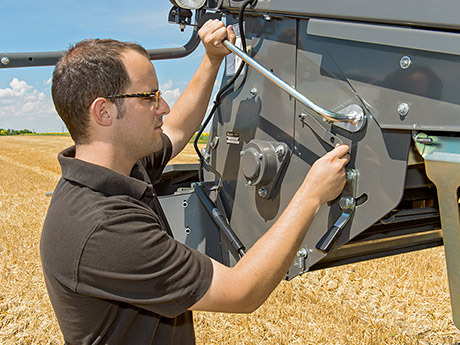

    Easy to switch over

    Operators can switch quickly and easily between swathing and chopping modes, simply by moving a lever.

Harvest the best quality.

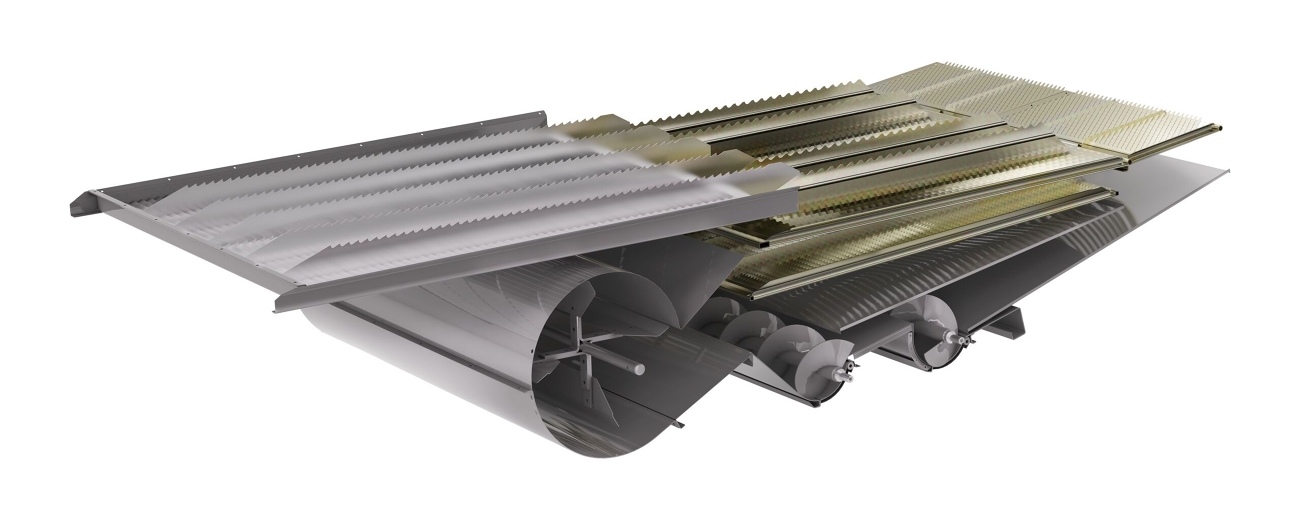

Best separation results – for the cleanest grain

The quality of the grain is crucial. With this in mind, when we developed the shaker shoe, we focused on the use of high-capacity sieves. The special surface of the high-capacity sieves (HC sieves) optimises wind flow and maximises cleaning results. To ensure that the crop remains uniformly distributed on the sieves, the L-Series is equipped with our sectional cleaning system with high dividers on the preparation floor as well as upper and lower sieves. The returns system transports the material that has not been perfectly threshed back to the threshing cylinder, to guarantee effective rethreshing results. As the preparation floor and the threshing cylinder are the same width, the crop is spread across the entire cleaning section.

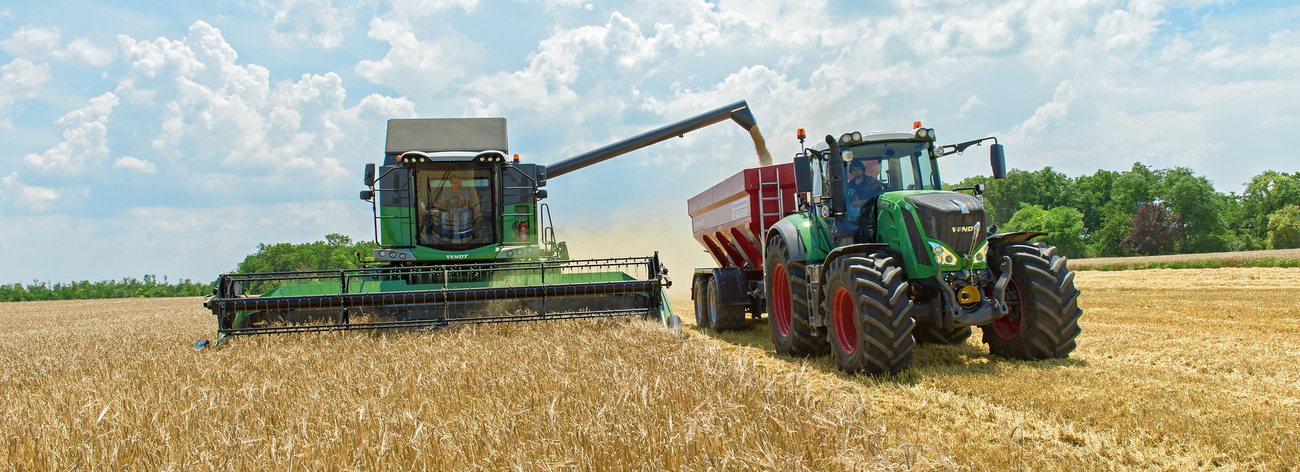

Plenty of space for clean grain

With the large grain tank, you can make the most of a tight harvesting time window. With an 8,600-l capacity, it is designed for high productivity. A centrally positioned filling auger fills the tank very uniformly. Two sensors provide information about the filling level in the grain tank. Moreover, you always have a good view into the tank from the cab.

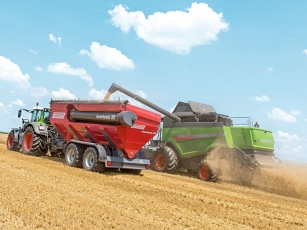

Swift unloading of the grain tank

Because the L-Series empties from the top, it offers an overload height of 4.50 m. Enjoy rapid emptying rates of 105 l/s. The grain tank covers can be opened and closed electrically from the cab at the touch of a button.

Preparation floor

High-Capacity sieves (HC sieves)

Sieve extension

Blower

Grain auger

Rethresher auger

Lower sieve

Electrically adjustable sieves

You can control the electrically adjustable sieves from the comfort of the cab.

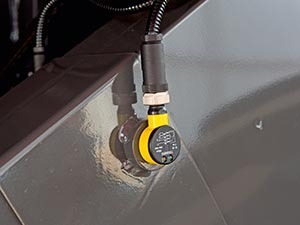

Returns sensor

A sensor records the return flow rate and displays it in the Varioterminal 7".

Chaff spreader

An adjustable chaff spreader with double rotor is available as an option.

Preparation floor

In very damp harvesting conditions, a clean preparation floor always ensures high throughput rate and optimal threshing quality. That's why the preparation floor of the Fendt L-Series is easy and convenient to remove.

Returns camera

The returns camera can be used to track the threshing quality at all times, and to react quickly and easily to the changing harvest conditions.

Intelligent slope compensation.

Optimum in-field and on-road characteristics

Besides the classic advantages of a chassis levelling system, the ParaLevel system offers additional benefits, like switching between work and transport mode. Work mode gives you greater stability and safety on slopes, because the outer width is increased. In transport mode on the other hand, the front axle is lowered and the outer width is reduced. With an outer width of 3.50 metres, both combine models – 5255 L PL* and Fendt 6275 L PL** – comply with traffic regulations.

* 5 straw walkers with 800/65 R32

** 6 straw walkers with 650/75 R32

Easy switching between work and transport mode using the ParaLevel system, which compensates for slopes up to 20%.
