For a comfortable and relaxed working day.

The Proline cab in our L-Series offers you a comfortable workplace. It improves your concentration and well-being, even on long harvesting days. The air-conditioning system, comfort seat and low noise level are just a few of the many standard features that make this possible. Our operating interface, the Fendt VariotronicTI, sets standards in this power class when it comes to the use, control and monitoring of the machine.

Comfortable seat

The latest generation comfort seat with standard specification air suspension and numerous setting options can be perfectly adjusted to your needs. The adjustable steering column makes it easy to find a relaxed working position. Your passenger also has a comfortable seat.

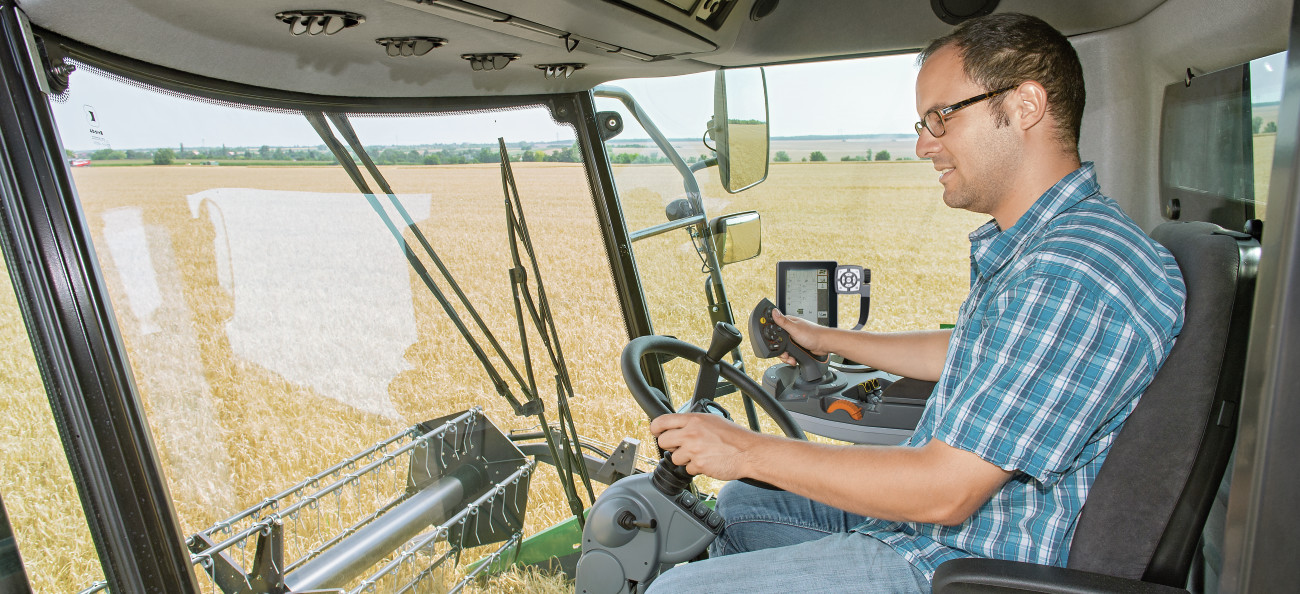

Space for well-being

Our Proline cab has been generously designed. You have plenty of space for your well-being and have everything in view – from the table to the stubble to the unloading auger. Thanks to the large, electrically adjustable mirrors, there are no obstructions to your view towards the rear.

Excellent illumination

The L-Series is equipped with a sophisticated lighting concept, so even at night you have everything in view. An extensive set of adjustable work lights and the optional stubble/row finder lights provide excellent illumination.

Mosaic

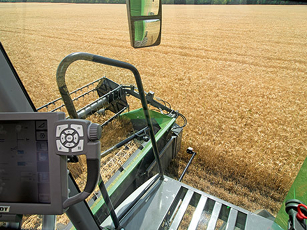

Direct sight line

A clear view to the table and stubble, and to the spreading pattern of the straw chopper with the camera, enables the best performance in the field.

  • Mosaic

    Direct sight line

    A clear view to the table and stubble, and to the spreading pattern of the straw chopper with the camera, enables the best performance in the field.

  • Mosaic

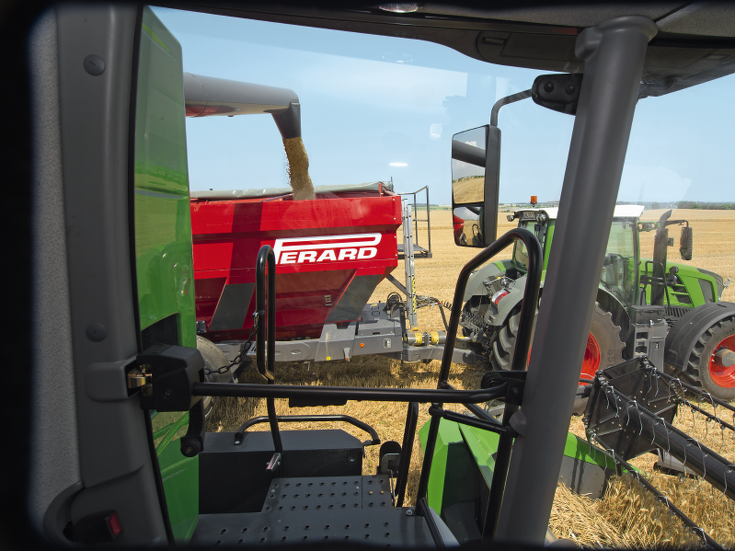

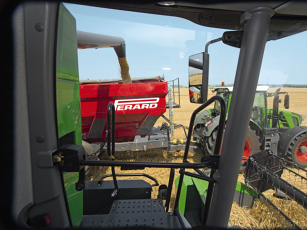

    Unloading tube in full view

    Excellent visibility to the unloading area for fast unloading at up to 105 l/sec.

  • Mosaic

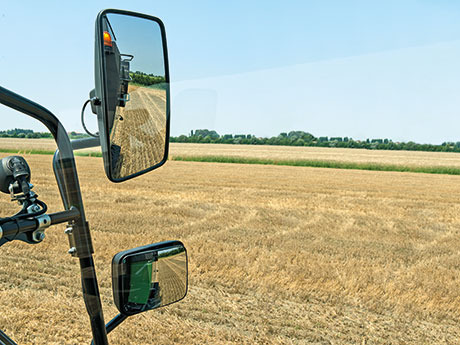

    All-round visibility

    ElectricLarge, electrically adjustable, heated mirrors plus optional wide-angle mirror for perfect all-round visibility.

  • Mosaic

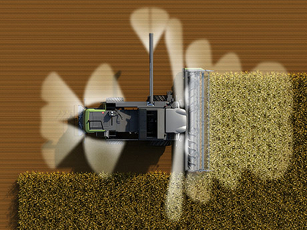

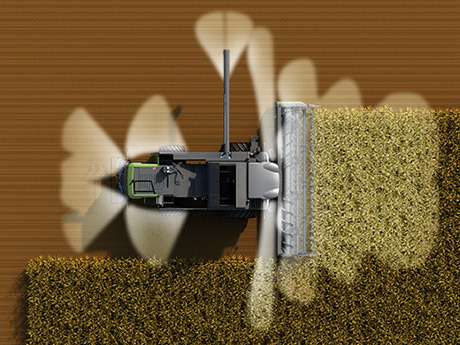

    Lighting concept

    The comprehensive lighting concept ensures improved working conditions – even at night.

  • Mosaic

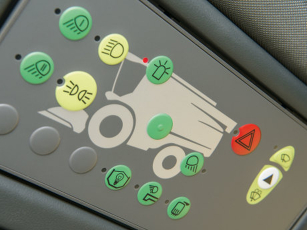

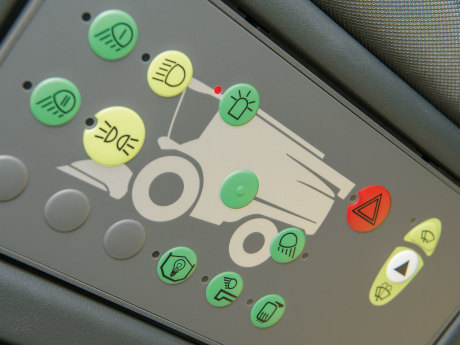

    Operating panel

    Clear overview of activated work lights in the light operating panel.

Intuitive controls, smart connections Call

Ergonomic and comfortable

The central control element for your Fendt combine sits securely in your hand. Our multi-function joystick is located in the front area of the Variotronic armrest, and features everything you need to control all the key parts of the machine during the harvest. You can adjust the height and length of the armrest, with the soft support offering the highest level of comfort.

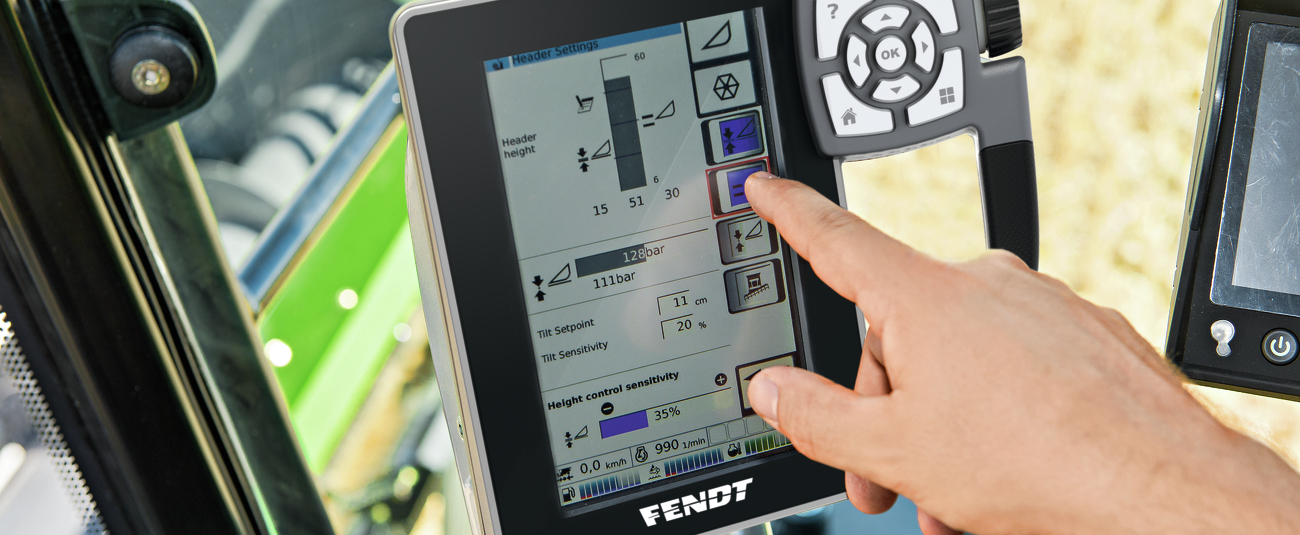

The choice is yours: touchscreen or keys

Enjoy the intuitive menu navigation on the Varioterminal 7" with colour display. Clearly structured, it delivers all relevant information about your combine's performance and settings. You can easily make all the menu settings on the touchscreen or the navigation keys on the handle.

Mosaic

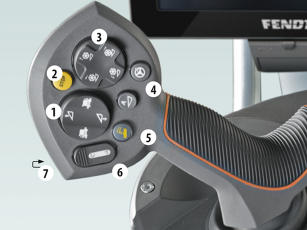

Functions multi-function joystick

  1. Table control position
  2. Header stop
  3. Reel position
  4. Automatic cutting height control
  5. Grain tank unloading on/off
  6. Grain tank unloading tube on/off
  7. Reel speed
  • Mosaic

    Functions multi-function joystick

    1. Table control position
    2. Header stop
    3. Reel position
    4. Automatic cutting height control
    5. Grain tank unloading on/off
    6. Grain tank unloading tube on/off
    7. Reel speed
  • Mosaic

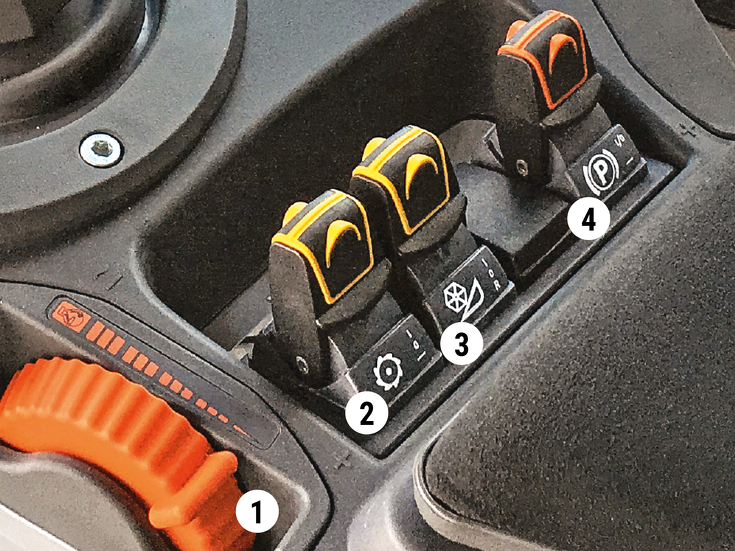

    Functions rocker switches

    1. Engine speed
    2. Threshing mechanism on/off
    3. Table control on/off
    4. Handbrake
  • Mosaic

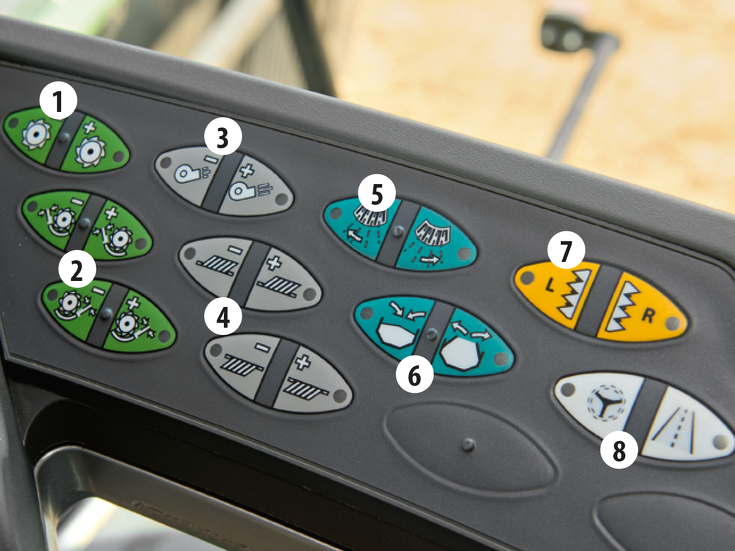

    Functions membrane keypad

    1. Threshing cylinder speed
    2. Concave clearance front/rear
    3. Fan speed
    4. Sieve opening top/bottom
    5. Straw chopper spreading pattern (optional)
    6. Open/close Grain tank
    7. Side cutter on/off
    8. Transport mode

Call up machine data from any location: Fendt Connect

Fendt Connect is the central telemetry solution for Fendt machines. With Fendt Connect, machine data is collected and evaluated, so farmers and contractors can monitor, analyse and optimise the condition and use of their machines. Mobile data transmission means you can check your realtime machine data anywhere – from the office PC, tablet or smartphone. You must have a Box (AGCO Connectivity Module) to use Fendt Connect. This exports relevant machine data and sends it to Fendt Connect (app or web application). Data is sent via the mobile network.

How you benefit from Fendt Connect:

  • Optimised logistics decisions will improve your operating efficiency
  • Reduce input by monitoring consumption as you work
  • Maximise uptime through smart service scheduling
  • Minimise downtime – use the diagnostics support for your decision-making
