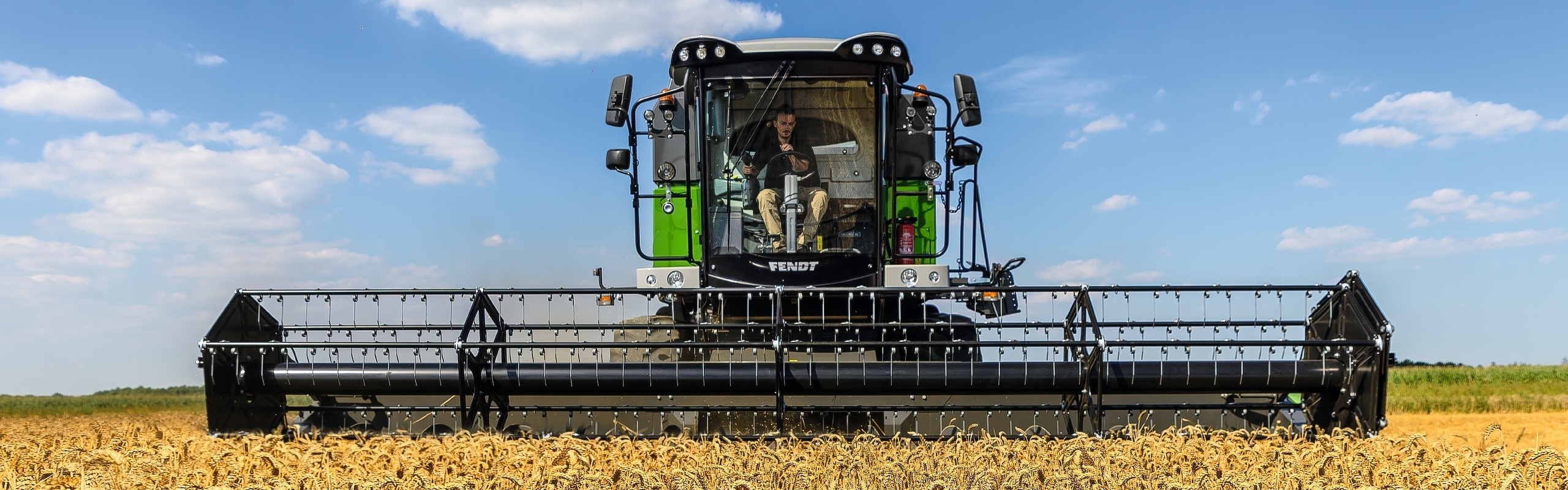

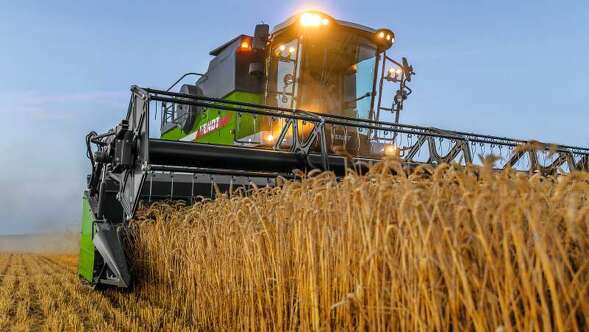

A farmer threshing in a wheat field with his Fendt CORUS combine harvester

Fendt CORUS 500

Always by your side.

In the harvest, is reliability important to you? Then we have the ideal partner for you: The Fendt CORUS is always by your side.

A reliable partner.

You can always rely on the family. This is also the case with the Fendt CORUS 500. This combine harvester is equipped with the proven components of our larger combine models and is therefore used to working hard. Robust, reliable and efficient, it ensures high seasonal performance when it counts. This makes it an indispensable helper, especially for family farms.

Icons_Web_Fendt_CORUS_Zuverlässige Schneidwerke_128x128 (1).svg

Reliable cutting headers

Icons_Web_Fendt_CORUS_Schonendes Dreschwerk_128x128.svg

Gentle threshing unit

Icons_Web_Fendt_CORUS_Gruendliche Abscheidung und reinigung_128x128.svg

Separation and cleaning

Icons_Web_Fendt_IDEAL_128x128-Kabine-03.svg

Comfortable cab

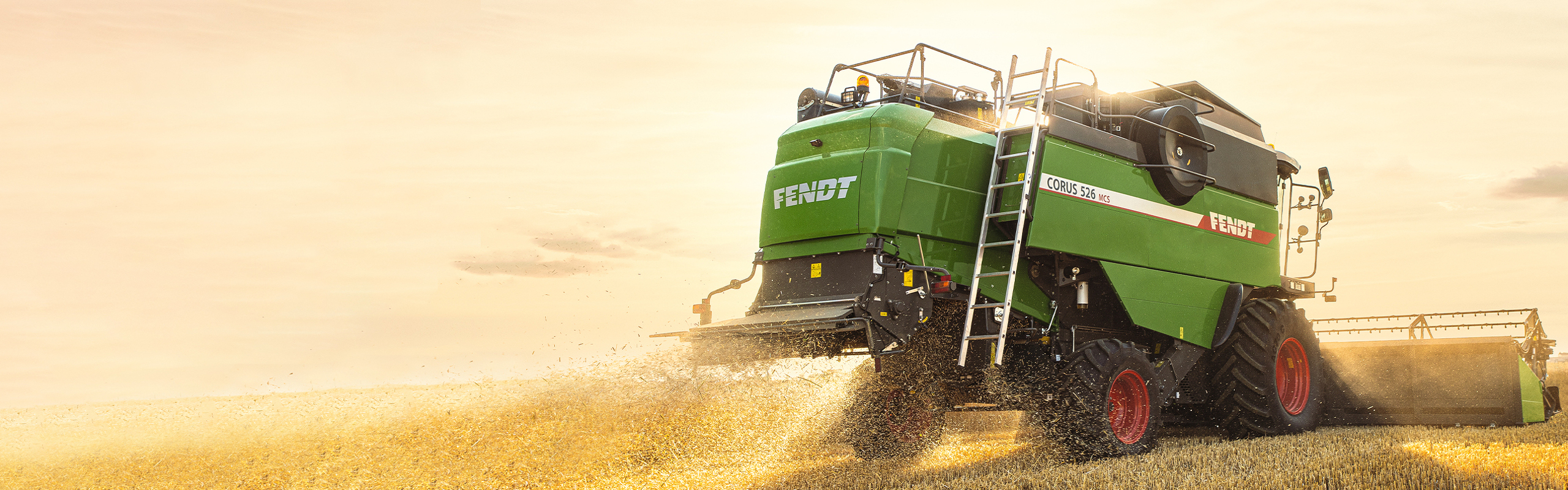

CORUS 526 cutting straw at sunset

Model overview

CORUS 518136 kW

185 hp

CORUS 522

166 kW

226 hp

CORUS 526

192 kW

260 hp





Fendt Corus500 Virtual Showroom

Fendt Virtual Showroom

Discover the Fendt combine harvester in our virtual machine showroom.
The detailed 3D all-round view gives you insight into selected features such as the cab, cutterbar, grain tank and more.

Use the arrows to click your way through the Fendt Forum to the interior of the machine.

The Fendt CORUS 500

Always by your side

Fendt CORUS 500 - you can rely on it!

The harvest window is getting shorter and shorter, and the demands for high-quality crops are high. That's where a partner who delivers top performance and can be relied upon is especially important. This is where the Fendt CORUS 500 comes into play: with reliability, flexibility and high performance, it can score!

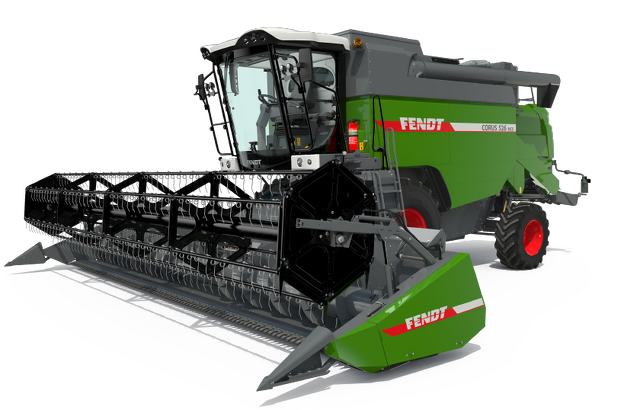

Fendt CORUS 526 CGI

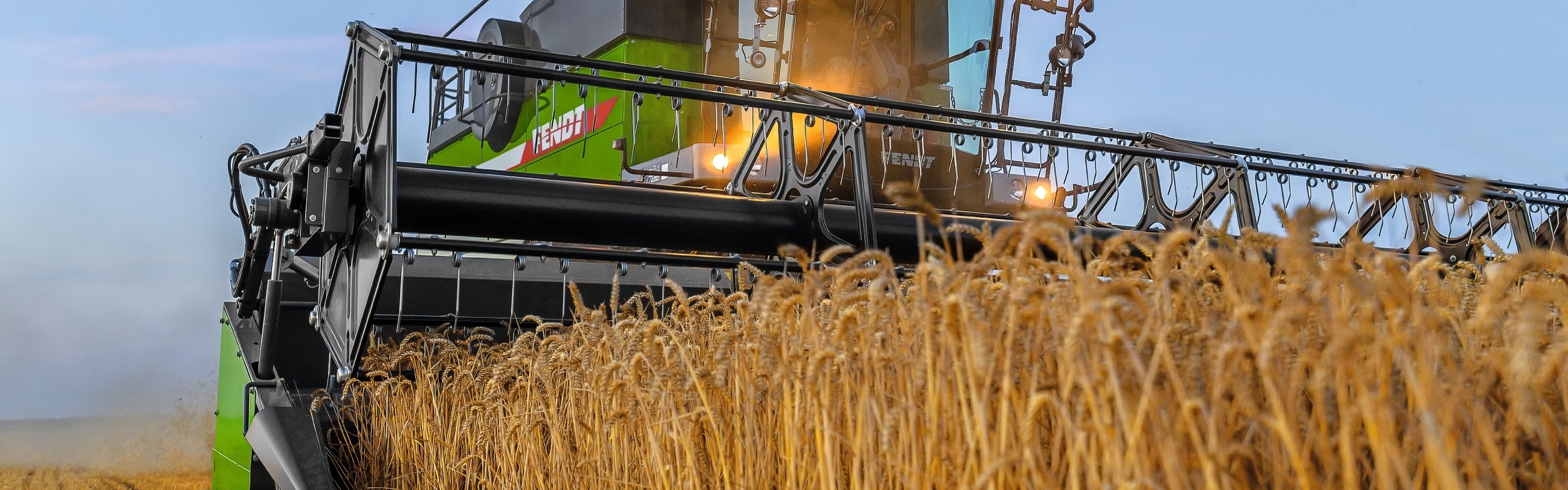

A farmer threshing with his Fendt CORUS combine harvester at dusk.

Headers

Reliability starts right at the front with the Fendt CORUS 500. With the FreeFlow and PowerFlow headers, you play it safe even in difficult conditions and achieve a uniform crop feed and high throughput.

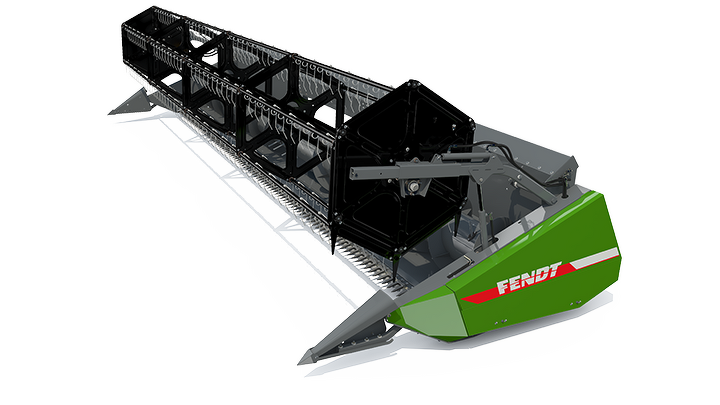

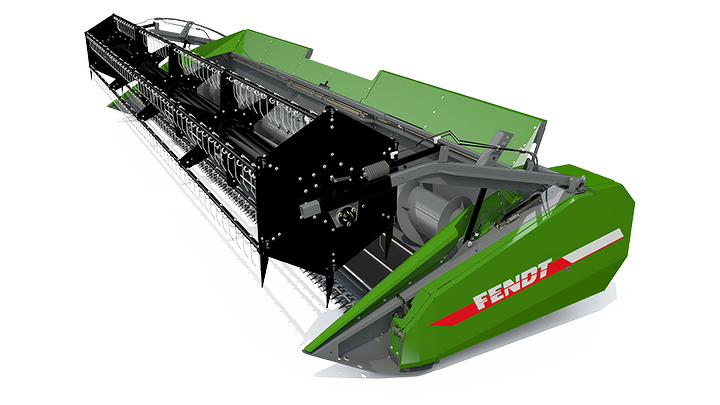

Fendt CORUS FreeFlow header CGI

FreeFlow header

The FreeFlow header is available with a cutting width of 4.80 m to 7.60 m. It is equipped with a Schumacher cutter bar with an outstanding 1,254 cuts per minute. The feed auger of the FreeFlow header is equipped with movable fingers across the entire working width. These ensure a continuous crop flow.
Fendt CORUS PowerFlow header CGI

PowerFlow header

For working widths of 5.50 m to 6.20 m, the Fendt CORUS 500 can also be combined with the PowerFlow header. Behind the Schumacher knife, which operates at 1,254 cuts per minute, the crop is actively and uniformly fed to the intake auger via the PowerFlow belts. Stones are returned from the belts to the field so that they cannot cause damage in the machine. Uniform crop feed reduces losses and prevents build-up on the cutterbar. This allows the combine to operate at maximum power and at higher speed for longer.

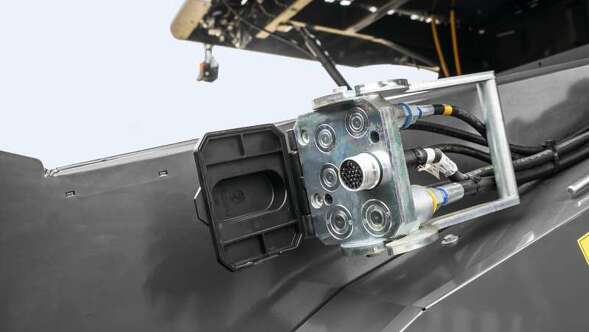

Close-up Fendt CORUS hydraulic connection

Multi-coupler

With the multi-coupler, you connect all the connections for the header in one easy step.
A farmer threshing with his Fendt CORUS combine harvester at dusk.

Schumacher cutterbar

With 1,254 cuts per minute, the low-wear, alternating knife blades deliver the cleanest cutting results.
1,254

cuts per minute

Flowering rapeseed field

Rapeseed equipment

The PowerFlow header is quick and easy to use in rapeseed with the optional electric rapeseed knives. The optional rapeseed auger enables uniform feeding.

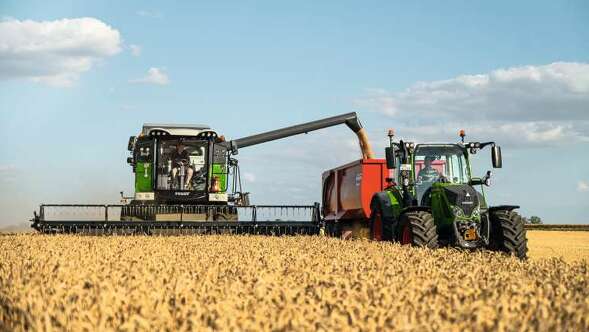

A Fendt CORUS and a Fendt tractor with tipper when threshing.

Threshing unit

With the Fendt CORUS 500, your crop is in the best hands. Whether grain, rapeseed or maize harvest – the powerful large threshing drum in combination with a large threshing concave surface ensures intensive and at the same time gentle threshing and separation.

Threshing unit

You can rely on excellent crop quality!

The threshing unit of the Fendt CORUS 500 is characterized by its versatility and guarantees excellent harvesting results and optimum straw quality from cereals to rapeseed and grain maize to rice. Exactly what farmers and contractors in smaller acreage areas need!

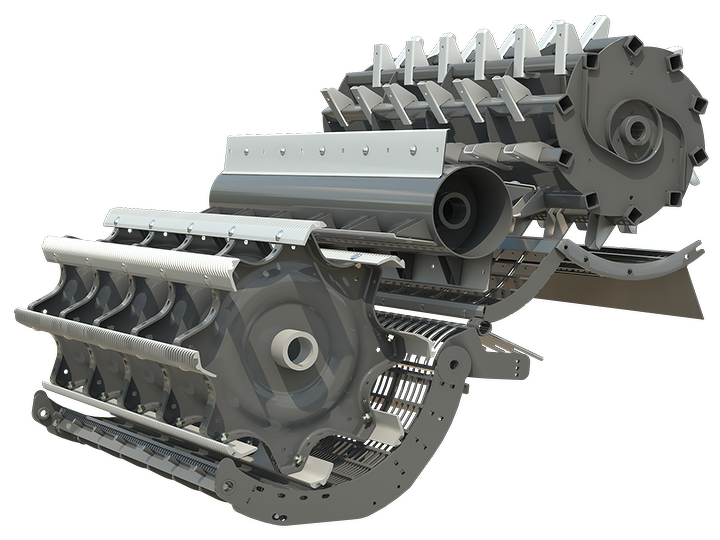

Fendt CORUS threshing unit CGI
A farmer threshing with his Fendt CORUS combine harvester at dusk.

Separation and cleaning

You want to be able to rely on clean crop? Then the Fendt CORUS 500 is the right choice for you. With the largest cleaning area in its performance class, it offers maximum cleaning performance under all conditions.

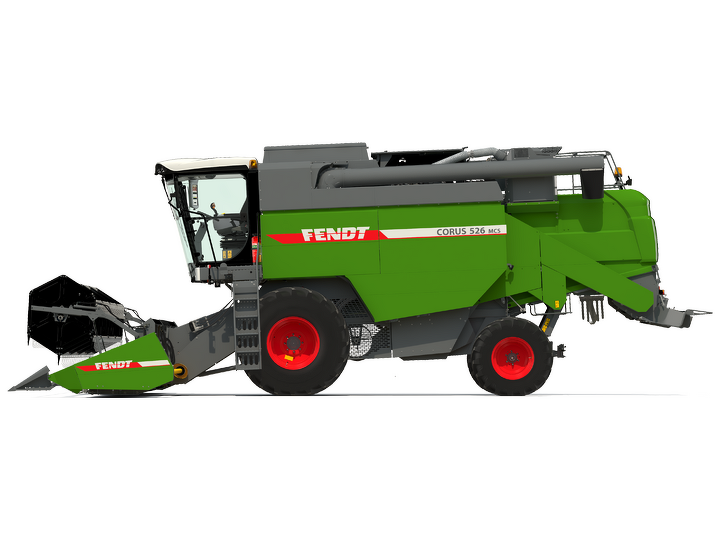

Fendt CORUS 500 CGI

Straw walker

High separation efficiency is the motto of the straw walkers. The long walkers have four drop steps and are designed to be very open, especially in the front area, but also wear-resistant. This ensures optimum separation without excessive wear. At 21 cm, the Fendt CORUS 500 has the highest drop steps of all conventional straw walker combines.

Fendt CORUS 500 grain pan CGI

Grain pan

The new grain pan is modular and can be equipped with removable plastic inserts. These increase versatility and make cleaning much easier when working in difficult conditions and in crops such as soy beans and corn.
Cleaning and sieve pan CGI

Cleaning

From the threshing unit, the crop enters the high-performance cleaning system. Here, the material is evenly distributed across the cleaning shoe and a grain and a chaff layer are formed. The two layers are separated by a powerful fan. The cleaning area of the Fendt CORUS 500 is 4.7 m². Electrically adjustable high-performance sieves are also available especially for use in high-yield areas. These work efficiently, cleanly and reduce grain losses even at high throughput. To prevent the material from slipping sideways on slopes, the adjustable sieves have high partitions. This prevents losses and increases the capacity of the sieves. The sieves can be easily pulled out for cleaning. Thanks to the gentle threshing system and the gentle separation and cleaning, the straw is ideally suited for further use as bedding or feed.
A Fendt CORUS and a Fendt tractor with tipper when threshing.

High volume grain tank

CORUS 518 and 522 models are equipped with a grain tank with a capacity of 5,200 l and a discharge rate of 72 l/s. In the CORUS 526 model, the capacity is 6,500 l with a speed of 85 l/s. The large tank is also available as an option for the CORUS 522. The grain unloading auger makes it easy to fill even taller trailers. The large volume of the grain tanks offers advantages: the fewer stops you make during harvesting, the faster you have your valuable crop in the dry.
6,500 l

capacity

Close-up of the Fendt CORUS cab

Cab

Especially on long days during the stressful harvest season, a comfortable workplace in a pleasant atmosphere is important. You will feel at home in the new cab of the Fendt CORUS 500. The driver's seat is comfortable and the intuitive and ergonomic armrest makes work easy.
A farmer driving his Fendt CORUS 500 on the road through an avenue.

Comfortable partner

The Fendt CORUS 500 has a new comfortable cab for long harvest days. The multifunction joystick is used to operate various functions such as the speed, the cutterbar or the discharge tube. For ergonomic work, this joystick is directly connected to the armrest. The threshing concave and sieves are also controlled directly from the cab. The on-board computer and two optional cameras provide an optimal overview of the machine. The large panoramic windscreen and new working lights at the front of the combine ensure the best visibility.
Close-up of the Fendt CORUS cab

Panoramic window

The large panoramic window provides the best view of the header and the unloader tube.
Fendt CORUS armrest CGI

New intuitive armrest

The new intuitive armrest is attached directly to the seat and makes the Fendt CORUS 500 particularly comfortable to operate.
Illustration Fendt CORUS lighting package

New lighting package

A new lighting package makes the Fendt CORUS 500 a reliable partner even at night. This allows harvesting to continue at night when conditions are good.
Corus 518
Corus 518 MCS
Corus 518 MCS Rice
Corus 522
Corus 522 MCS
Corus 522 MCS Rice
Corus 526
Corus 526 MCS
Corus 526 MCS Rice
Table widths FreeFlow from - to (m)
4.80 - 6.00
4.80 - 6.00
4.80 - 6.00
4.80 - 7.60
4.80 - 7.60
4.80 - 7.60
4.80 - 7.60
4.80 - 7.60
4.80 - 7.60
Active total separation area (m²)
0.99
1.89
1.89
0.99
1.89
1.89
0.99
1.89
1.89
Straw walkers (number)
5
5
5
5
5
5
5
5
5
Straw walker area (m²)
5.73
5.73
5.73
5.73
5.73
5.73
5.73
5.73
5.73
Total sieve area (m²)
4.67
4.67
4.67
4.67
4.67
4.67
4.67
4.67
4.67
Grain tank capacity (litres)
5200
5200
5200
5200
5200
5200
6500
6500
6500
Max. performance (ECE R 120) (kW/hp)
136/185
136/185
136/185
166/225
166/225
166/225
192/260
192/260
192/260
Fuel tank capacity (litres)
450
450
450
450
450
450
450
450
450
