Fendt C-Series SL

The new Fendt 5275 C SL

The specialist on steep slopes

Extreme conditions call for extreme machines. You can overcome huge climbs only if you and your machine are able to perfectly adapt to the situation. The new Fendt 5275 C SL combine harvester does just that, making the impossible possible.

Max. output	225 KW / 306 hp
Grain tank capacity	8,600 litres
Discharge rate	105l/sec
4WD	As standard
Outer width	3,95m
Max. speed	30 km/h*
Emissions Stage	VV

_{*May vary by country}

A combine that will see you forge ahead

The system that keeps you balanced

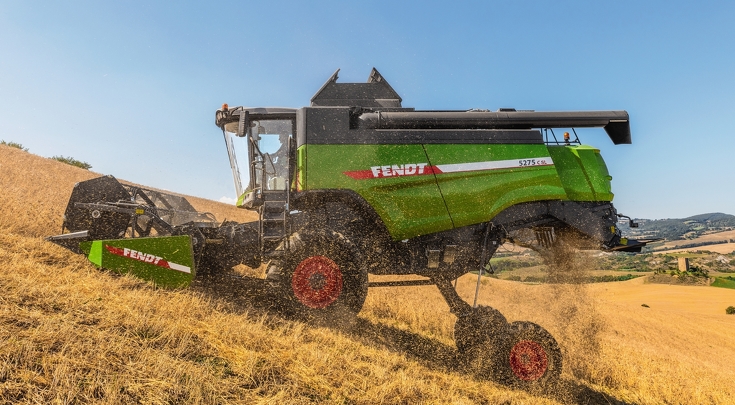

The Fendt 5275 C SL was designed for extreme slopes. The hydraulic levelling system gives you up to 38% horizontal compensation, up to 35% on the vertical uphill and up to 8% on the vertical downhill. You can set the system's responsiveness on the touchscreen.

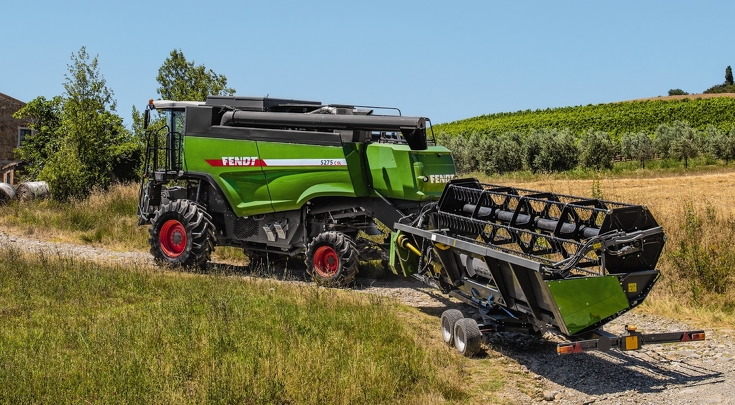

The combine harvester 5275 C SL pulling a header on a path between two fields.

Specially developed headers

Special headers were developed for the Fendt 5275 C SL from the FreeFlow and PowerFlow series. The special feature on these headers is the top-positioned PTO. That's how it achieves its 38% horizontal levelling.

Top-class driving comfort

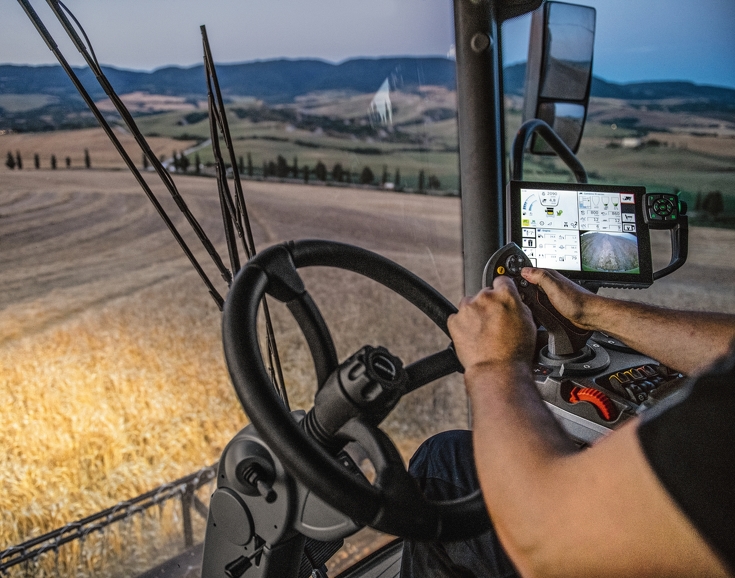

A man sits at the steering wheel in the cab of the Fendt C SL and operates the joystick on his armrest next to the 10.4” terminal.

Rapid settings with the 10.4" terminal

The Skyline open-space cab offers a unique driving experience in the Fendt 5275 C SL hillside-specialist combine. All the settings are quickly to hand on the 10.4" terminal. Have everything in sight with up to two additional cameras. Save your own machine settings to keep all the data you need onboard.

Inspiring technology

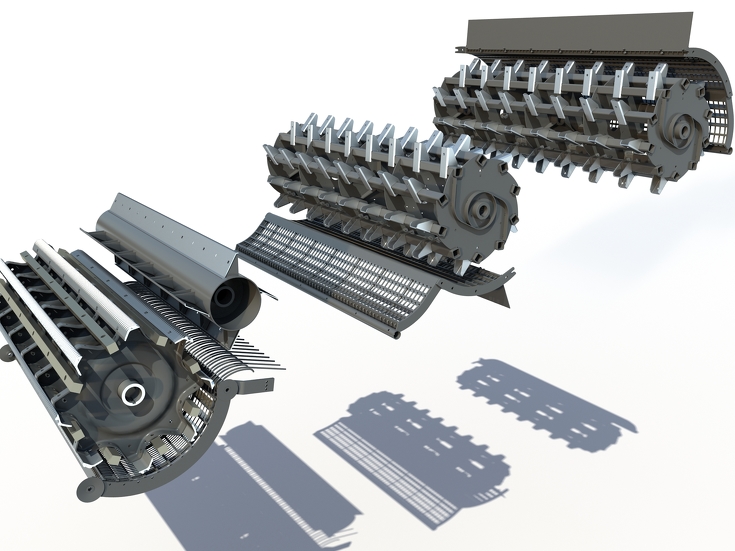

Multi-Crop Separator

The front and rear concave openings can be adjusted independently and electrically. You can adapt the threshing unit to any harvesting conditions from the comfort of the cab. In the case of easily harvested crops and dry conditions, you can swing out the concave to deactivate it. This protects the straw and improves straw quality even more.

Multi-Crop Separator
The front and rear concave openings can be adjusted independently and electrically. You can adapt the threshing unit to any harvesting conditions from the comfort of the cab. In the case of easily harvested crops and dry conditions, you can swing out the concave to deactivate it. This protects the straw and improves straw quality even more.

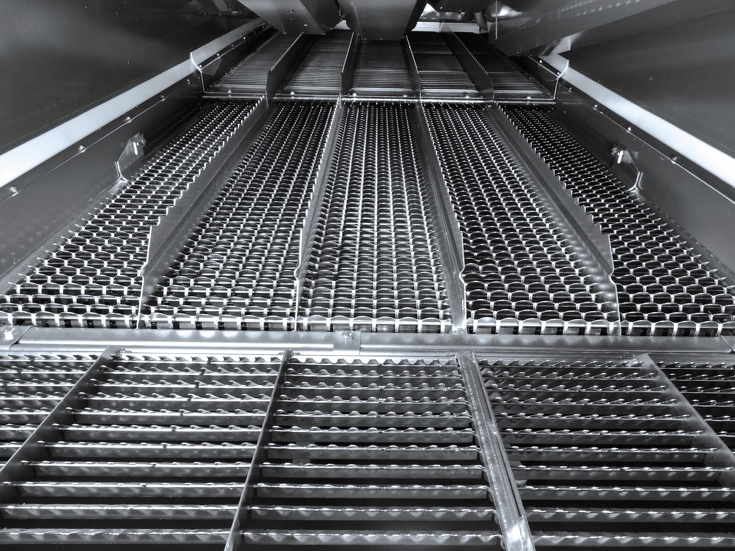

5-shaker machine
The 5275 C SL features 5 shakers. This keeps the cleaning system very compact. The efficiency is also maximised with the ideal component layout. All cleaning settings, from the blower to the sieve, are controlled from the cab.
Keep a constant eye on losses and parameters
The loss sensors can observe the losses at all times and react to deviations in the set target value. Options include yield and moisture sensors as well as Fendt Connect. Fendt Connect collects and evaluates machine data, including the position, track, consumption, machine capacity and error messages.

Fendt Virtual Showroom

Discover the Fendt combine harvester in our virtual machine showroom.
The detailed 3D all-round view gives you insight into selected features such as the cab, cutterbar, grain tank and more.

Use the arrows to click your way through the Fendt Forum to the interior of the machine.

To the Virtual Showroom
