Perfectly tailored to your Vario.

A fusion of quality and practicality

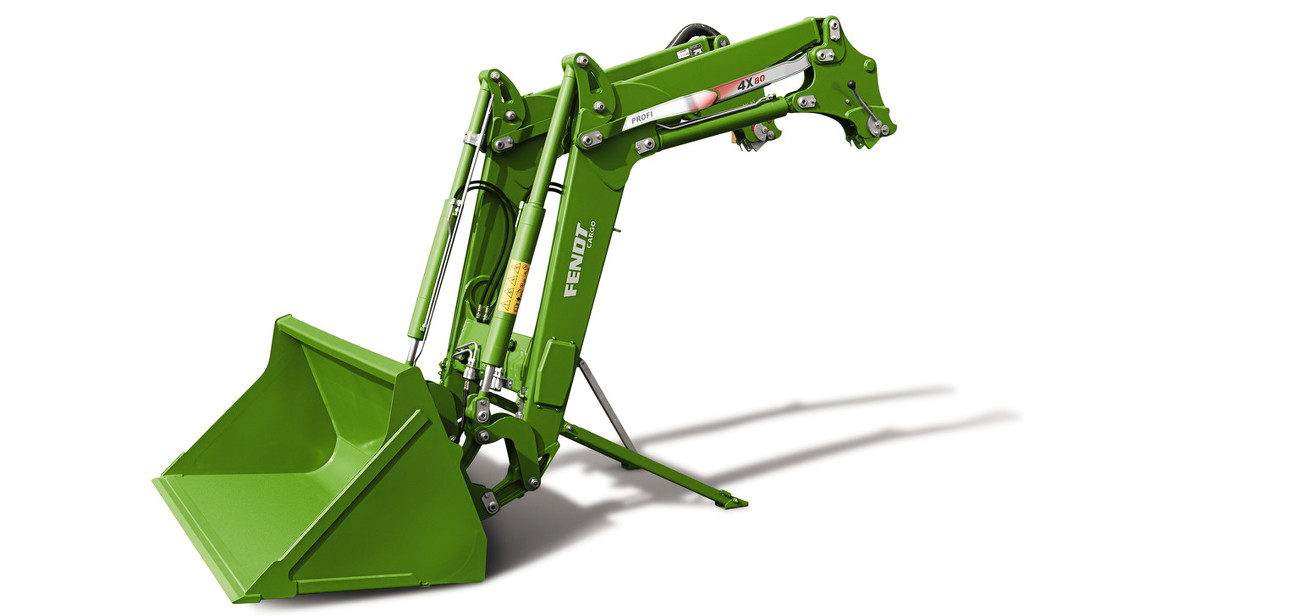

The basic prerequisite for all Fendt developments is the highest quality. A major objective during the development of the Cargo was to form a perfect unit from the tractor series and front loader. The technical specifications and overall design of the tractor and front loader have been perfectly adapted to each other.

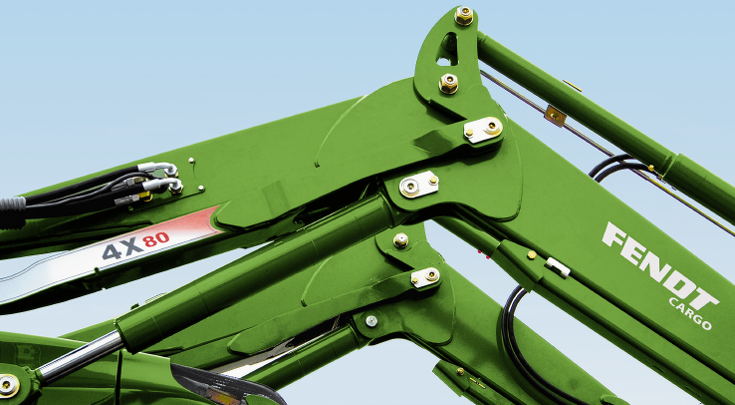

Further proof that the front loader is perfectly adapted to all the Vario tractors is the tried and tested mechanical self-levelling function on the Cargo, in the form of Z-bar linkage, ensuring perfect visibility. The parallel guidance ensures that attachments are kept in the same position over the entire lifting height. You can monitor its position at all times with the tilt indicator.

All hydraulic components are fitted in the cross beam and are therefore fully protected from dirt and mechanical damage.

TORSION-RESISTANT ARM FOR RUGGED JOBS.

Broad line of Fendt attachments, optimally adapted to the Fendt Cargo

Integrated support stands with toothed profile mean no more manual adjustment of the stands

Cargo-Lock with semi-automatic latch allows quick, boltfree coupling and uncoupling with 1 or 2 hand movements

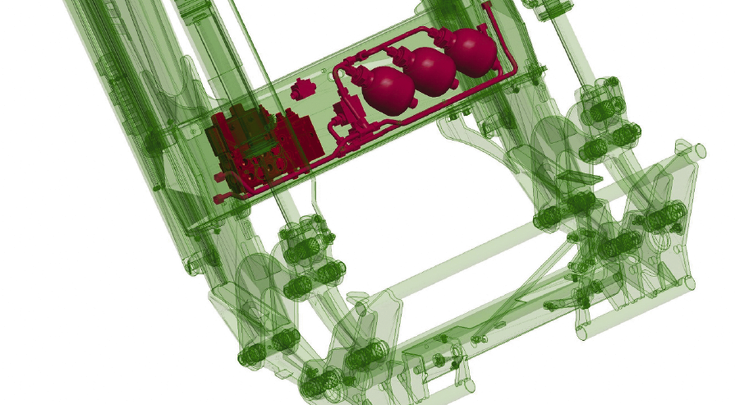

Cross tube protects and houses the valve assembly and damping containers

Optional 3rd and 4th circuit, also with multi-coupler

Mounting and removing made easy.

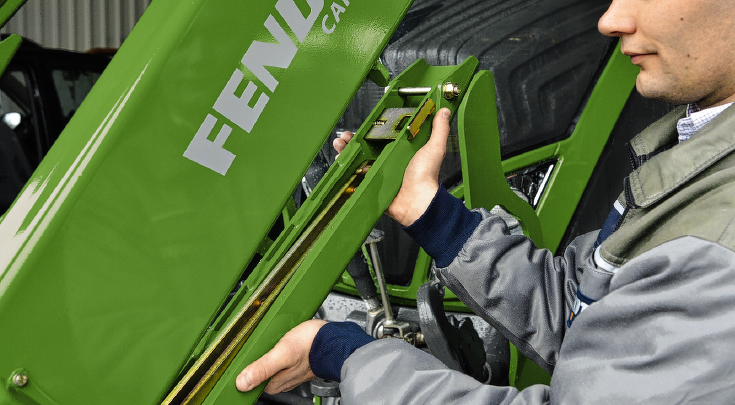

Locking is really easy with Cargo-Lock

Cargo-Lock with semi-automatic latch allows quick, bolt-free coupling and uncoupling with 1 or 2 hand movements, meaning that the often awkward task of inserting locking pins is no longer necessary, making mounting and removing much quicker. Indicators on the inside of the loader towers tell the operator the status of the locking system at all times from the cab.

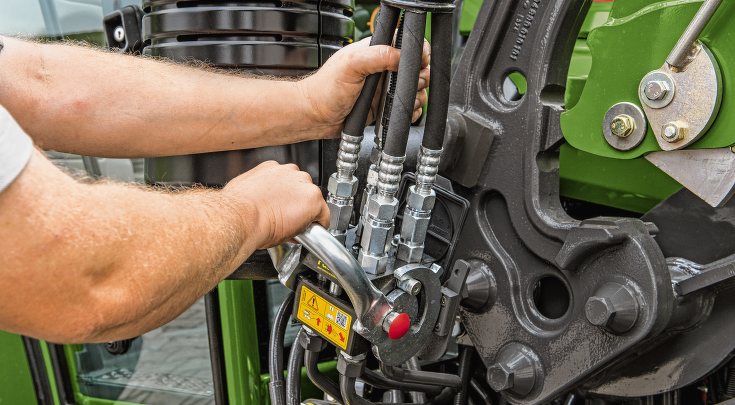

Ingenious multi-coupler

The multi-coupler also saves time. Just one hand movement is all it takes to connect the hydraulic and electric lines. With the standardequipped multi-coupler, incorrectly connected hoses, oil contamination and high leakage losses are a thing of the past. Disconnecting is just as neat and easy. Even when there is excess pressure in the loader after standing out in the sun, the Cargo can be coupled without problems.

Perfect stand

The parking supports have been completely redesigned. Manual setting and adjusting is not necessary, which saves valuable working time. Bolts or cotter pins no longer need to be inserted. The self-adjusting parking supports are mounted compactly on the arm.

Life-time design for a long service life

High-grade materials ensure durability for a long service life. High-strength fine-grain steel is the key factor behind the lifetime design of the new Fendt Cargo. In addition to high stability, it also guarantees a low weight. The Fendt profile, which is welded in one continuous seam, ensures high stability and therefore a long service life. The generously sized bronze bearing points with lubrication also guarantee a long service life and minimum wear.
