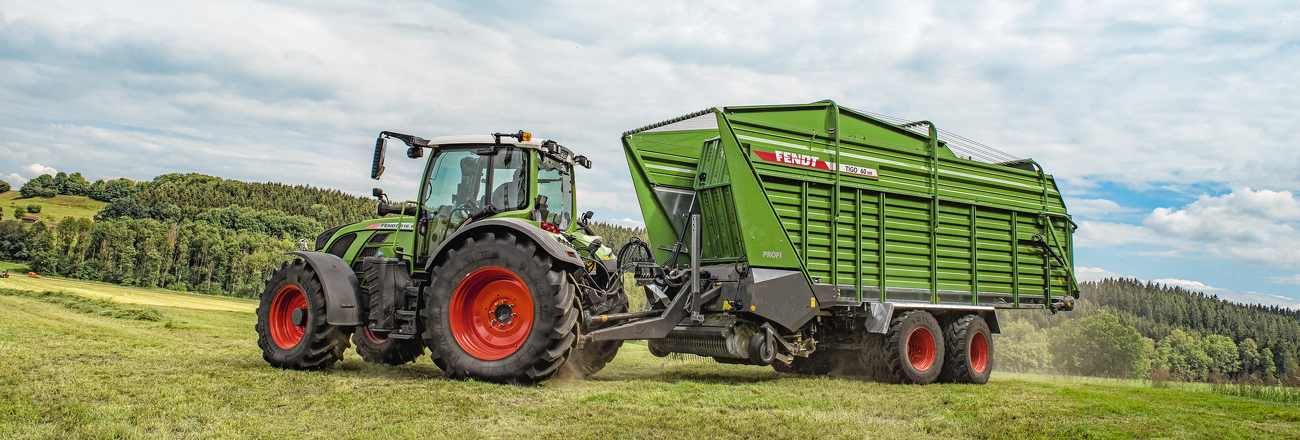

Unique efficiency that'll make you smile.
Fendt Tigo MR and MR Profi.

Impressive performance

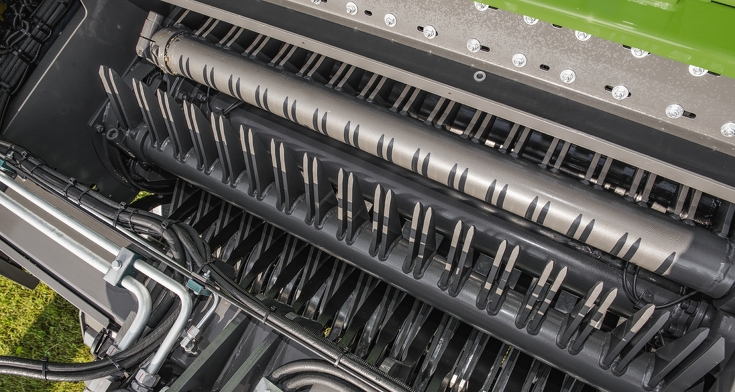

The rotor of the Fendt Tigo impresses with its strength and huge output. The 25 mm wide rotor tines with Hardox contact surfaces, makes the Fendt Tigo stand out from the crowd with its quality of cut. The grass is fed exactly through the narrow cutting gap and has no alternative way out. It is actively conveyed through the table while the six spiral rows of tines of the rotor provide for an efficient, precise cut. The rotor tines pull gently at an angle of more than 90 degrees out of the forage, which guarantees gentle discharge of the feed. With a feed channel of more than 1 m², the feed is carefully carried to the loading space even under difficult operating conditions. You thus achieve a precise quality of cut without crushing and optimum quality pre-compacted feed.

The synchronised peripheral speed allows the pick-up with low, protecting speed to bypass the removal to the rotor.

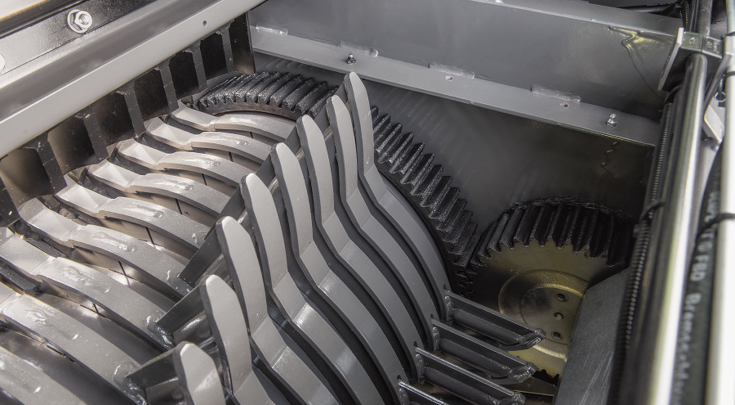

The power of the main drive is transmitted from the drive train to the rotor via extra strong spur gears with a force-locking involute gear.

The rotor with a diameter of 800 mm and six spiral rows of teeth made of Hardox steel is equipped on both sides with large spherical roller bearings.

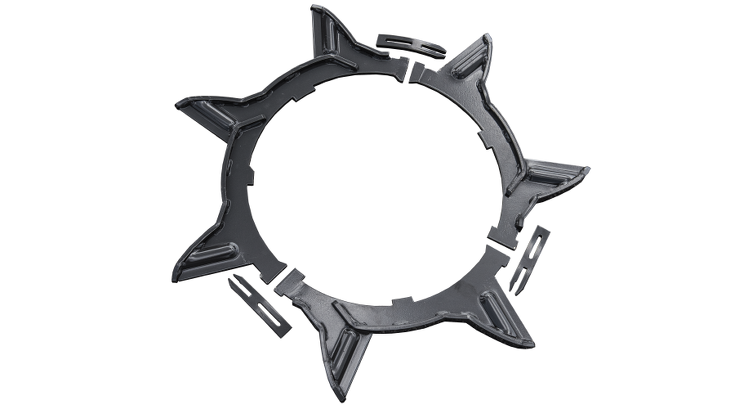

The rotor teeth are divided into three elements and can be removed individually. Three new elements are locked for simple replacement and then welded three times with individual locks.

Precision, right on the mark

Grass harvest, no problem – the Fendt Tigo guarantees you optimum output. The perfect interplay between pick-up and rotor result in an ideal crop flow and highest

loading performance. The transfer point of the pick-up is close to the cutting rotor. The crop therefore travels only a short way from the feed to the rotor. Thanks to the shorter design and low, almost identical peripheral speed of the pick-up and rotor, you achieve optimum raking performance and feed transfer even with short, dry feed. This allows you to work preserving the feed to give outstanding quality.

Efficiency is equal to output

The more effective the power flow of a gearbox, the higher the generated output. Achieve optimum performance potential with the unique propulsion system of the Fendt Tigo. The direct drive via low-wear

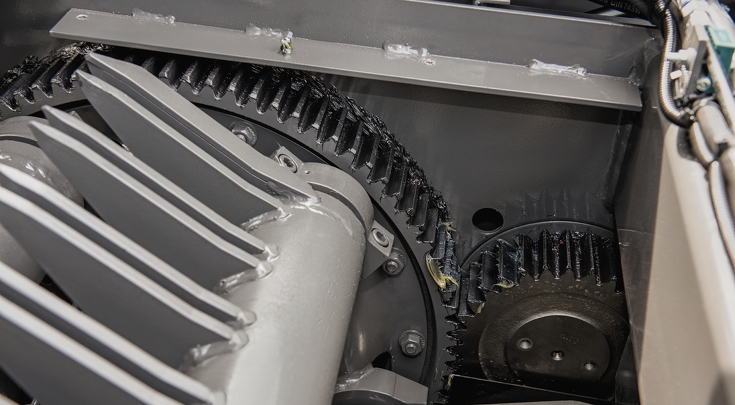

gears withstands high loads and is extremely smooth running. The main gear wheel is screwed to the cutting rotor itself, and guarantees direct power transmission.
The outstanding smoothness takes the strain off the operator and provides a comfortable working environment. Forage contamination caused by dripping chain lubrication is also excluded thanks to the involute spur gear.

Are you still waiting to switch on or are you already on the move?

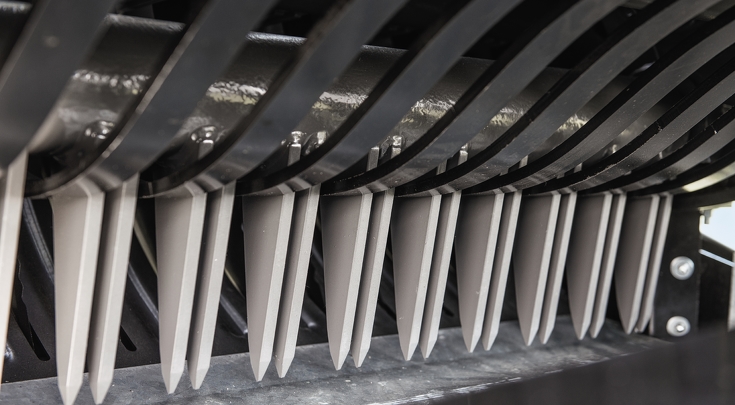

You save time and money with Fendt Tigo. The patented solution for replacing individual rotor segments, means nothing flusters you any longer. Thanks to the innovative design, you replace only the individual rotor teeth in case of damage by foreign object or wear. The T-shaped, 25 mm wide contact surface of the rotor segments guarantees high stability. At the same time, the Fendt Tigo develops more thrust with little effort.

Hard at work the whole season through.
Fendt Tigo MS.

Maintenance instead of waiting

Each of the five conveyor swing arms are mounted separately on both sides in a closed roller bearing, and have a central lubrication system. The standard lubrication bars on the charging unit and the cam track prevent the lubricating film from breaking and make this model extremely low-wear and easy to maintain.

The single-section conveyor swing arm allows an even and smooth forage flow.

The double tines remain in contact with the crop at an ideal angle until they are retracted in a horizontal position just before the crop enters the loading space.
