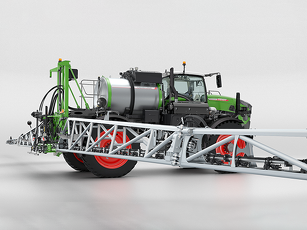

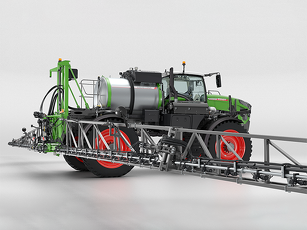

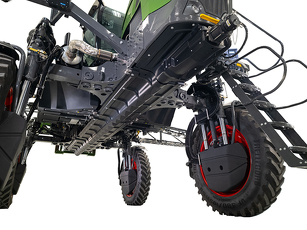

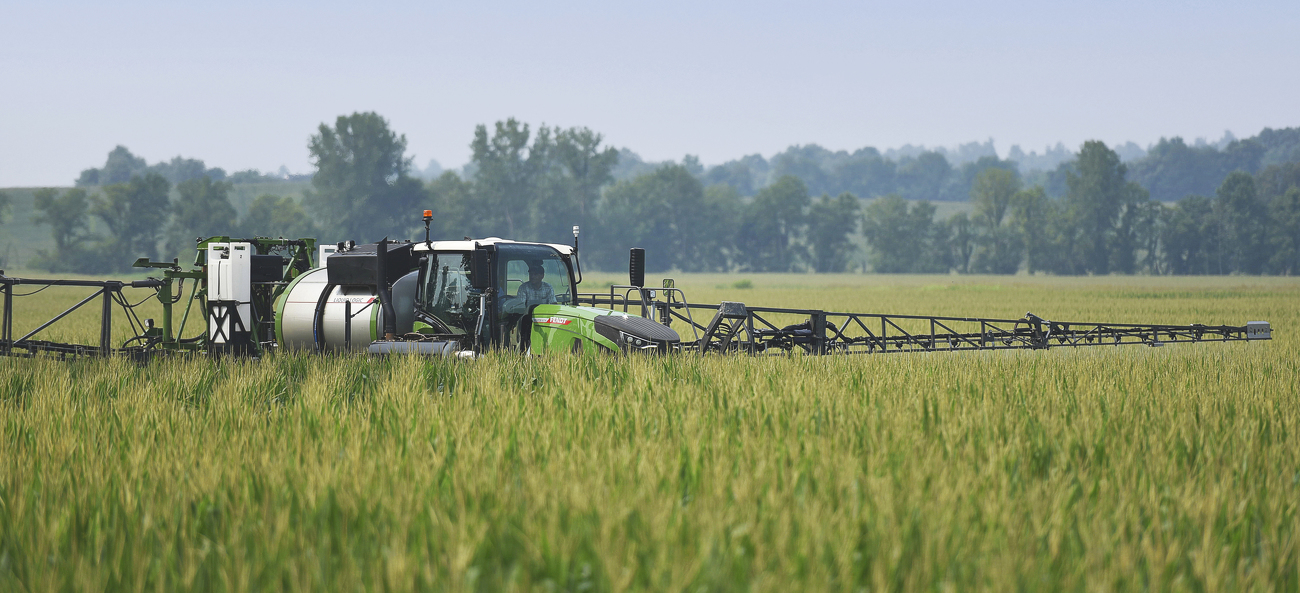

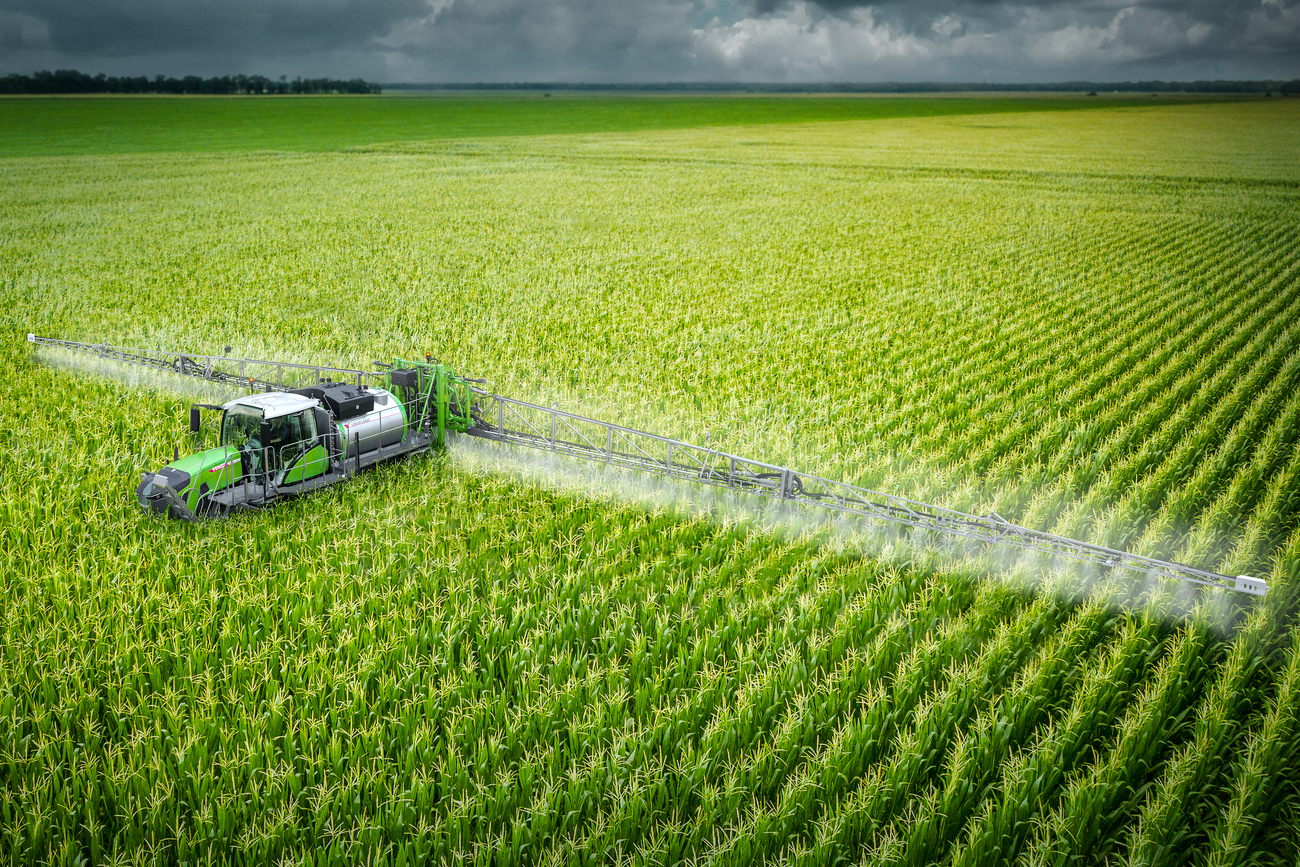

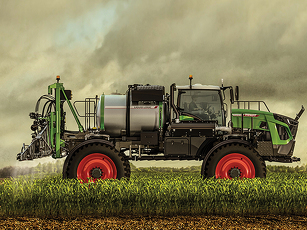

Introducing the industry’s only rear boom sprayer with two-height adjustable clearance.

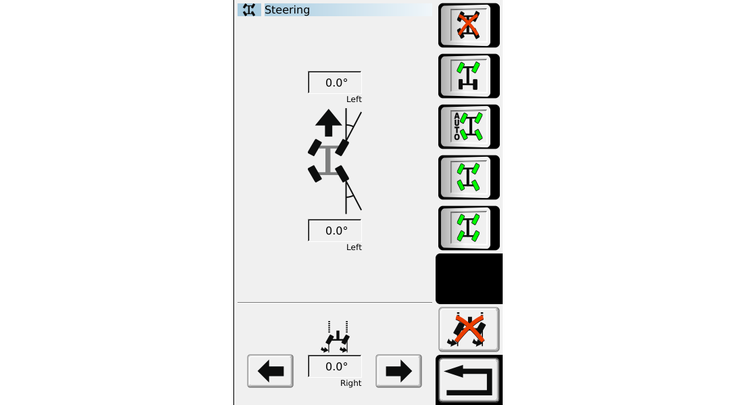

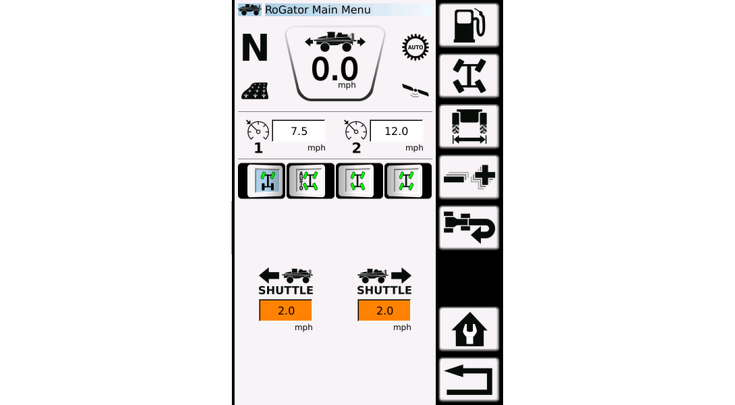

2-Wheel Steering: Rear wheels are controlled to the straight-ahead position.

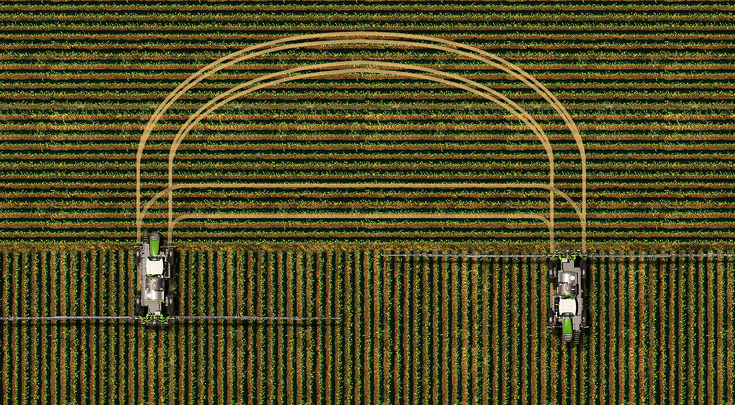

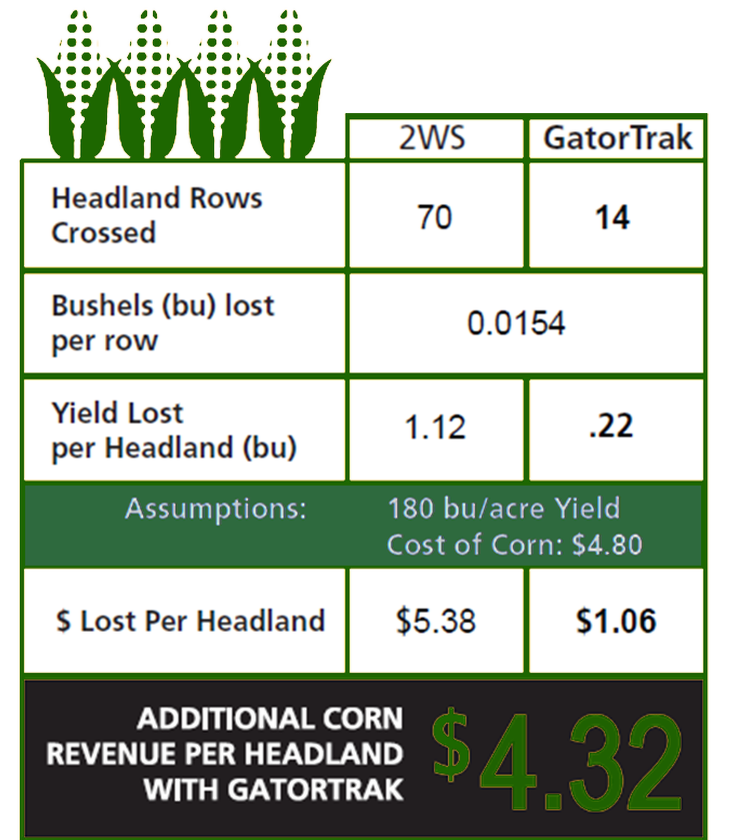

4-Wheel Steering: The rear axle automatically adjusts to the front axle for coordinated steering.

Auto 4-Wheel Steering: The rear axle follows the front axle when turns exceed six degrees, allowing the RoGator to operate as a standard 2WS machine in rows.

Crab Steering: Rear wheels turn in the same direction as the front, allowing the machine to move horizontally in steep side hill operations and keeping the wheels off the row. Also great for shifting sideways to avoid obstacles while maintaining precise, even coverage.

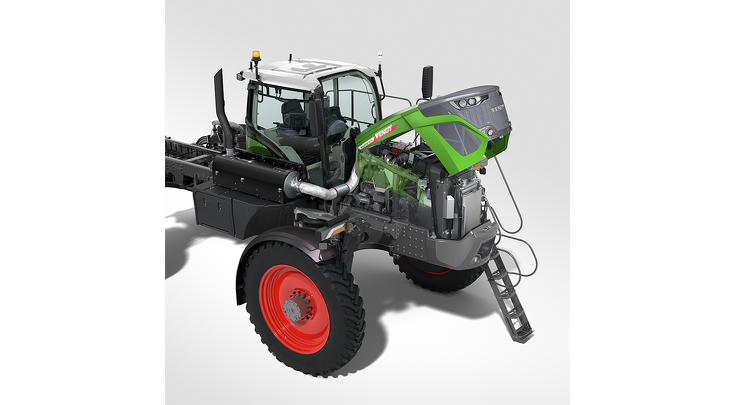

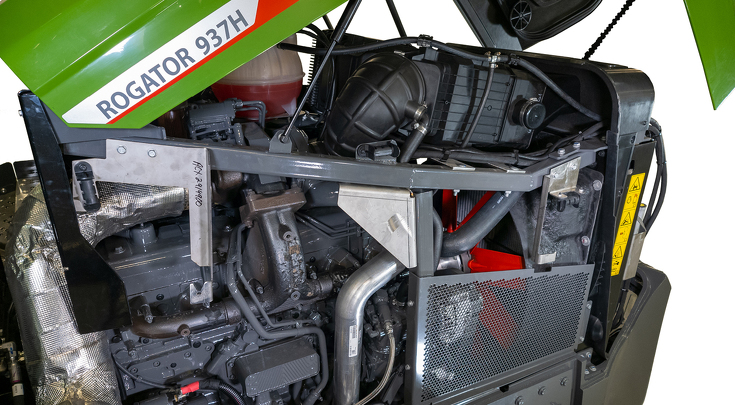

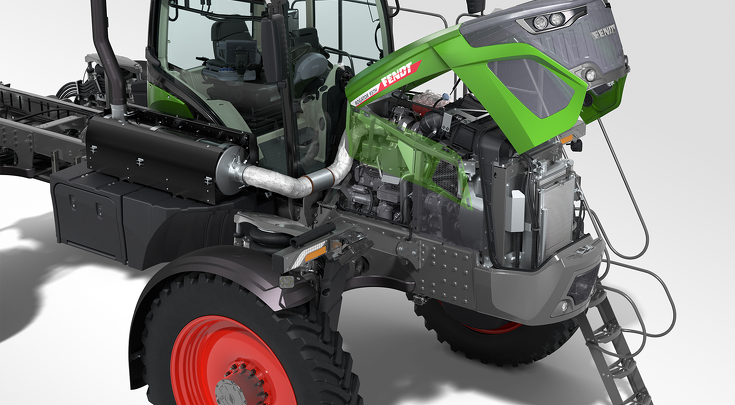

The AGCO Power™ 8.4-liter engine maximizes power and reliability while minimizing components and service needs. This Tier IV Final (T4F) rated engine uses AGCO’s selective catalytic reduction (SCR) emissions technology in combination with a diesel particulate filter (DPF) in a single canister located on the side of the cab to prevent visibility obstruction.

The single turbo and hydraulic lift adjusters minimize engine service needs to keep the Rogator running longer in the field.

These engines comply with Tier 4F emissions regulations without sacrificing fuel economy, horsepower or torque, resulting in one of the most powerful lines of agricultural application equipment in the industry.

AGCO Power

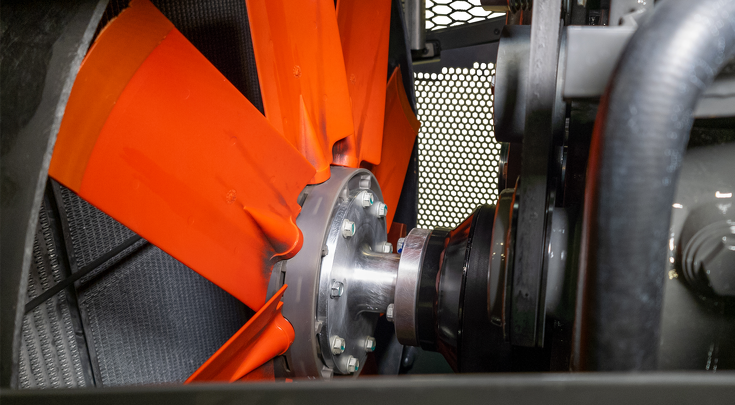

Optional programmable auto-reversing fan keeps the cooling package clean and free from debris for long, uninterrupted days of application.

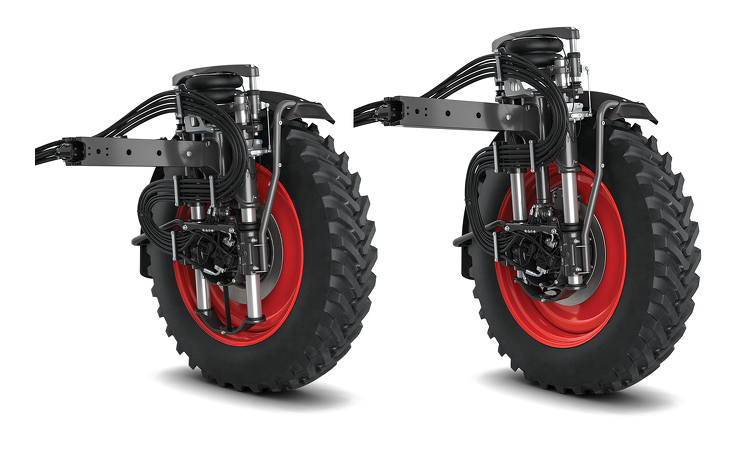

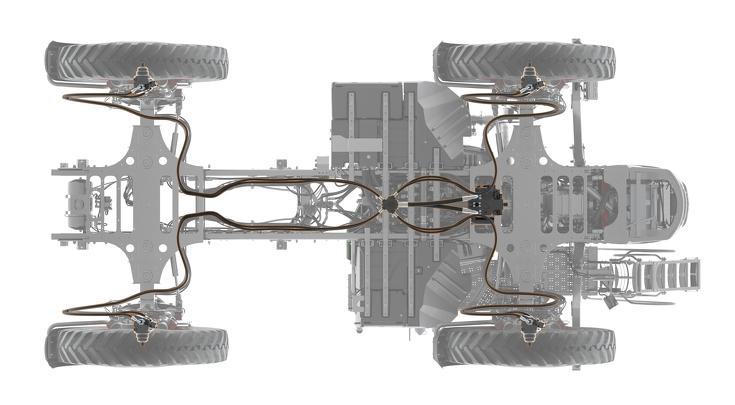

The standard AWD SmartDrive system with traction control continuously and independently controls each wheel to ensure it gets the torque it needs when it needs it. Wheel slip is automatically countered by sending more power to the gripping wheel while managing the slipping wheel to regain traction, all without user input.

• The tractor management system (TMS) automatically increases engine RPM when more power is needed and reduces RPM when it’s not to reduce fuel consumption and noise in the cab.
• VarioCruise and shuttle speed controls enable multiple speed settings at the touch of a button, allowing the operator to focus on more critical activities.
• The advanced anti-lock braking system (ABS) prevents skids and lock-ups for more controlled stopping in emergency situations.
• Turn-compensated wheel speed provides independent control of each wheel, driving the outside wheels faster to assist in tight turns and reducing soil disruption and crop damage.
• An optional hill-climb package for the Fendt Rogator 937 increases power to the ground for efficient handling of steep and rugged terrain.

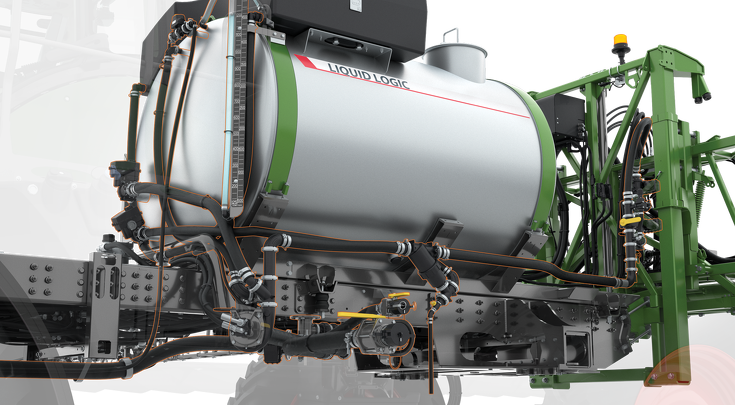

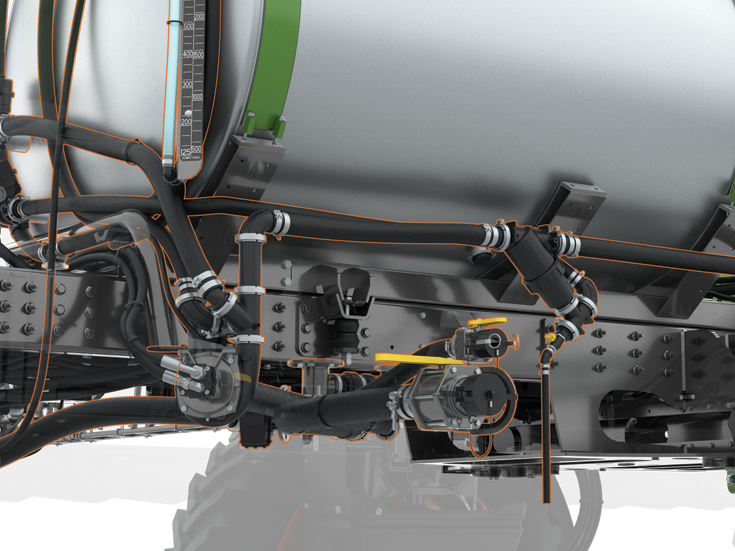

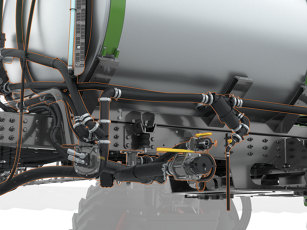

The OptiLoad™ electric reload system minimizes chemical entrapment and saves operators time and effort during the rinse procedure. OptiLoad transforms time-consuming rinsing procedures into a simple one-button task accomplished inside the cab or at the reload station, and ensures that every area of the machine is rinsed.

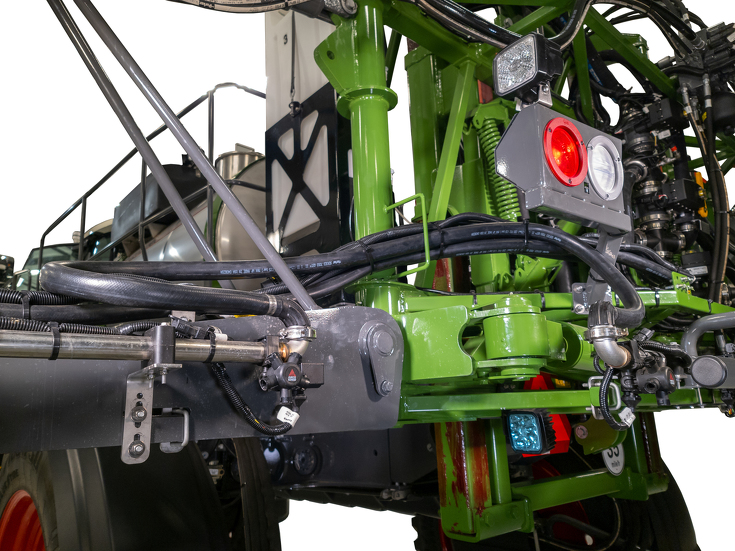

• RoGator’s reload area uses sweeping elbows and “Y” fittings in place of hard 90° “T” fittings, reducing product build-up. This means an easier and faster rinse procedure so you can get back to spraying faster.

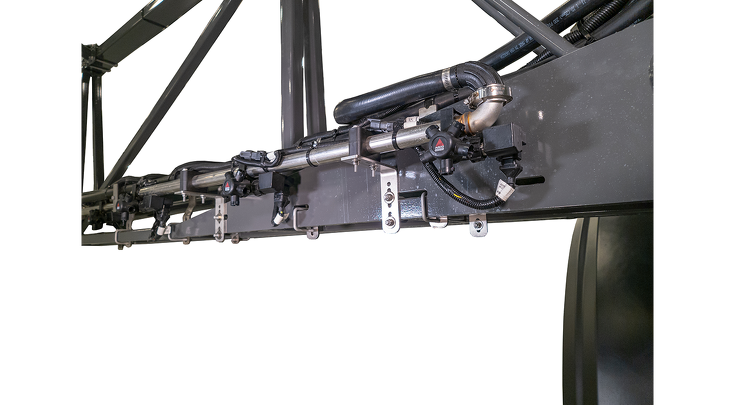

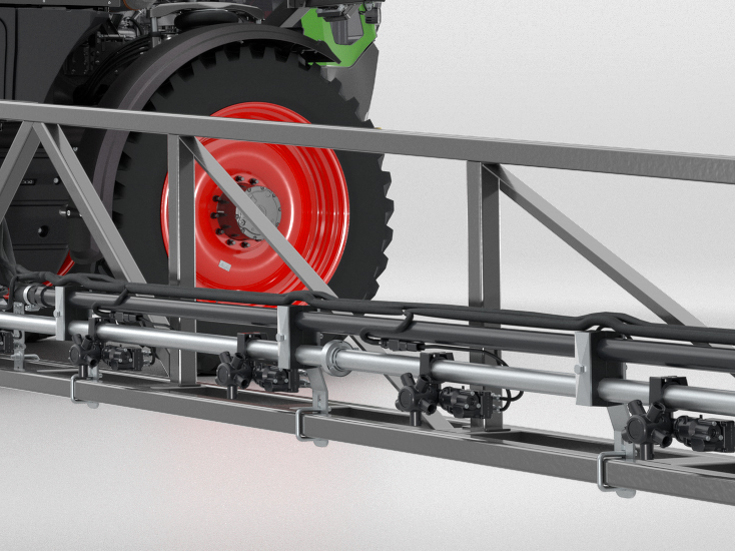

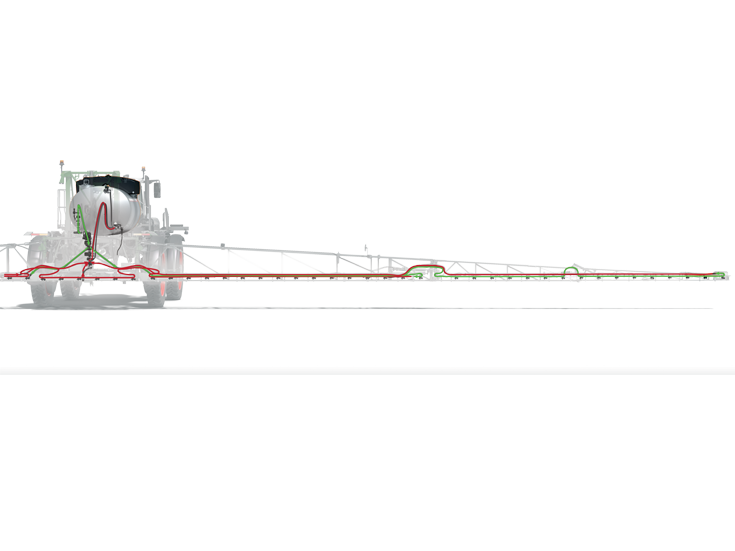

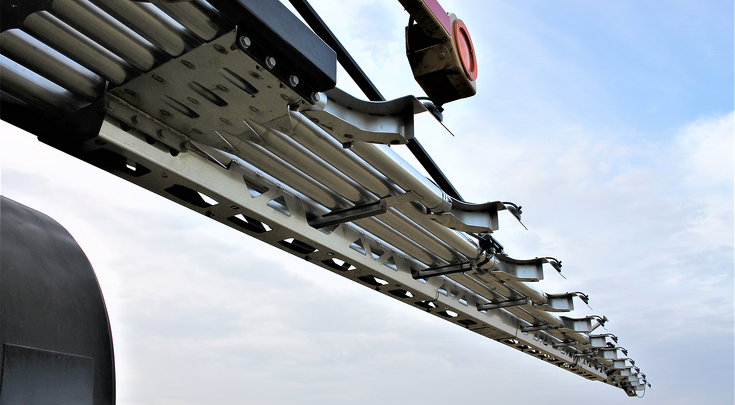

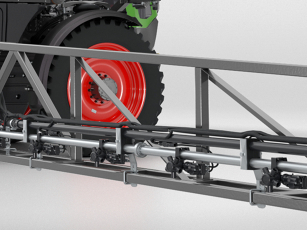

• RoGator’s continuous recirculating boom plumbing eliminates dead-end spots that chemicals can get trapped in and removes the need to pull end caps. A recent Purdue study determined that the FlowLogic™ recirculation boom plumbing can be rinsed to effectively remove water-soluble contaminants by 99.6% or more with a triple rinse using the Fendt RoGator recommended procedure.

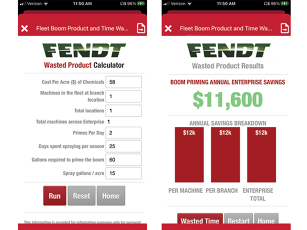

The industry-leading ClearFlow™ product recovery system helps you manage product around rain, wind and a hundred other things that can stop a job before it’s done, letting residues settle in the plumbing.

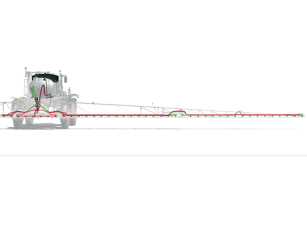

• ClearFlow flushes unused product from the plumbing back into the tank prior to rinsing, where it can be re-agitated or off-loaded, minimizing waste and contamination.
• In the event of a rain-out, product can be recovered back in the tank, and then the booms rinsed, preventing any plugged nozzles at the start of your next job.

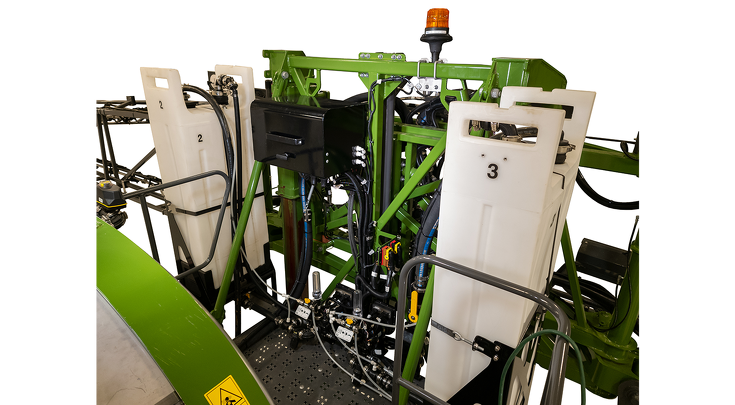

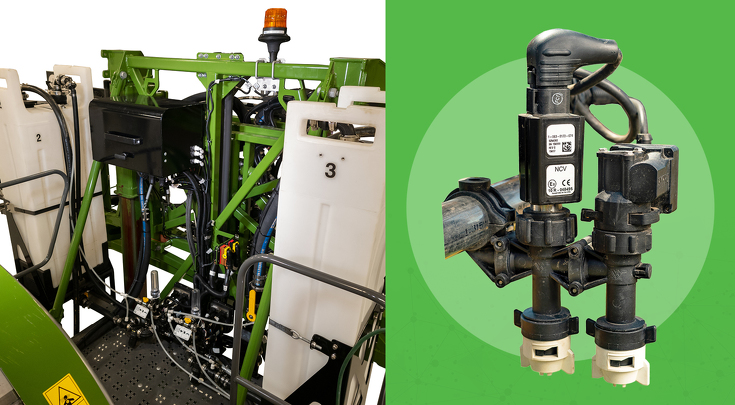

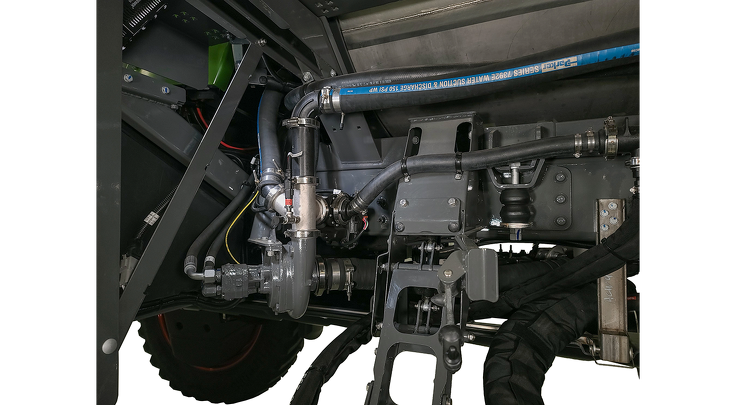

Fendt Direct Injection increases your flexibility in the field. Whether using it for adjuvants or chemicals, this system allows you to inject variable-rate product into the system before the booms, all while reducing your risk of cleanout contamination.

• The system leverages a dual high-volume pump (0.14 - 5 kilograms per minimum pump) with dual 151 liters tanks mounted on opposite sides to keep the machine balanced.
• Reload or drain from ground level when in use or rinse from ground level if changing between chemicals.

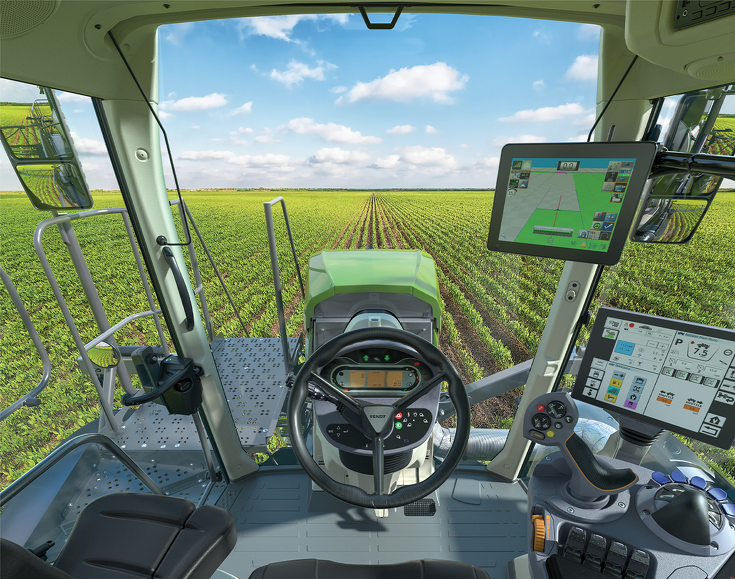

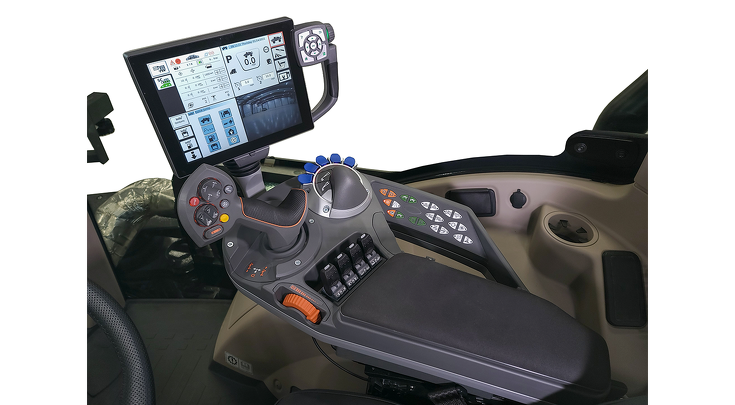

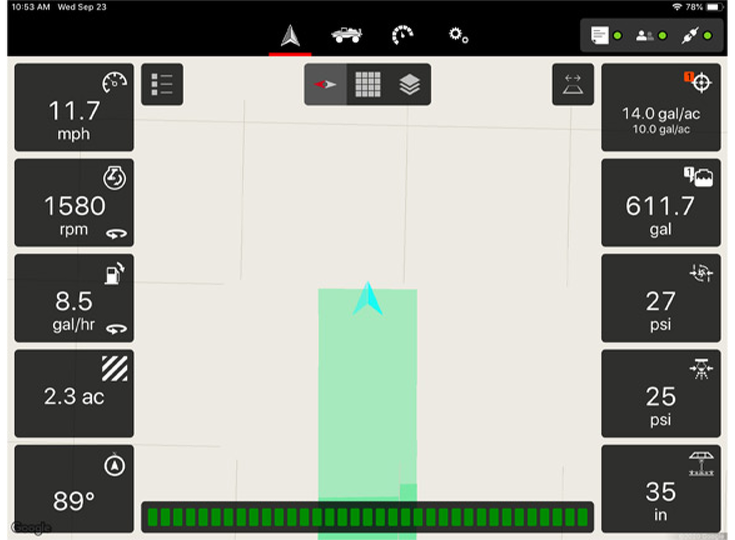

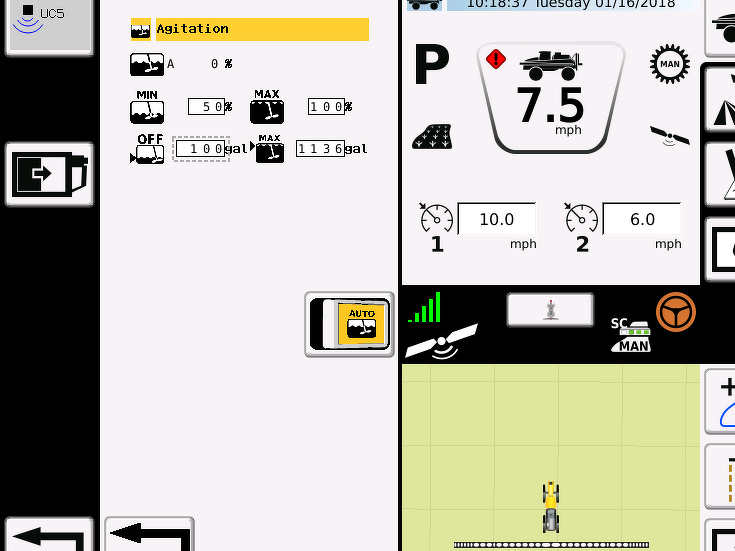

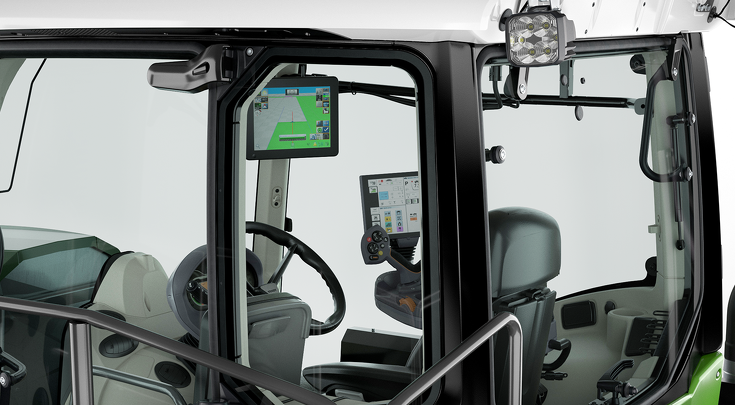

The integrated Fendt Varioterminal™ offers intuitive control and monitoring of machine functions, including the chassis, steering, data management and system functionality. This single terminal declutters the cab and ensures efficient operation.

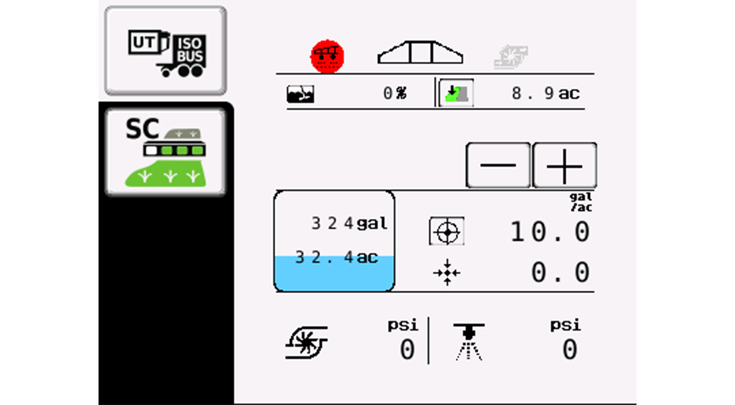

The AgControl^® handling of product control and system functions ensures highly accurate rate control while quickly achieving rate.

1. AgControl manages up to five products via straight rate or Rx maps, and provides the ability to create coverage and as-applied maps as well as task reports for fast, easy document reporting.
2. AgControl for LiquidLogic^® controls the liquid system functionality.
3. AgControl for SpreadLogic™ controls the AirMax^® Precision R1/R2 functionality.

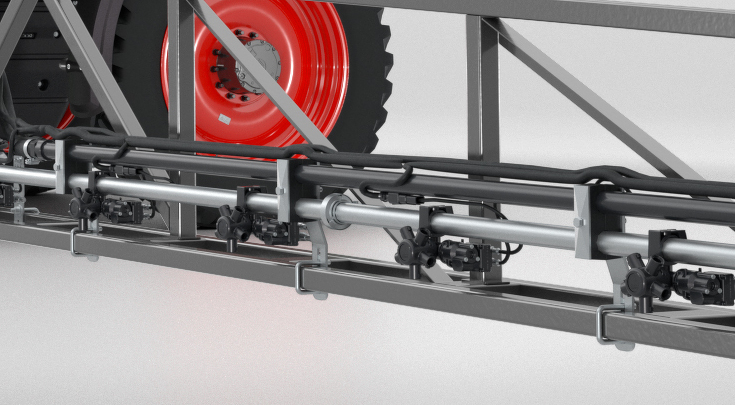

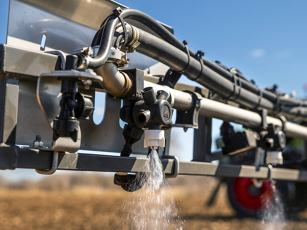

The OptiStop™ nozzle control system uses small ball valves at each nozzle body for instant on/off control and regulates 36 sections regardless of boom width when run through the AccuTerminal^®.

AGCO’s Fendt guide system is integrated into the Varioterminal for easy one-terminal control and provides a comprehensive guidance system with waylines such as:

1. AB or A+ heading
2. Contour
3. Pivot
4. Contour segments
5. Adaptive curve

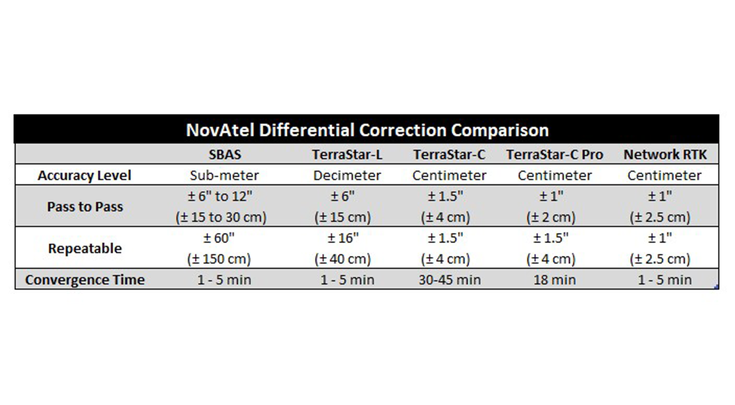

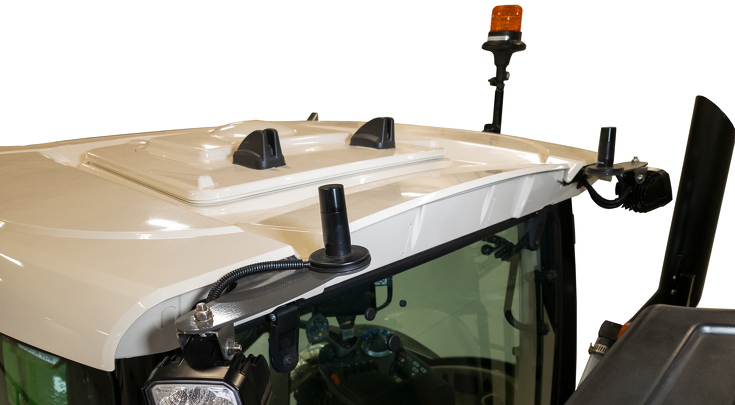

The standard NovAtel 7 receiver is a rugged, self-contained GNSS receiver and antenna with GPS and SBAS support. The base GPS option is SBAS but can be upgraded for higher accuracy levels with:

1. TerraStar L (decimeter) - One year free of TerraStar L. Work with your local dealer to activate.
2. TerraStar C (centimeter)
3. TerraStar C Pro
4. RTK Assist
5. RTK Base Station
6. RTK available through NTRIP using cellular

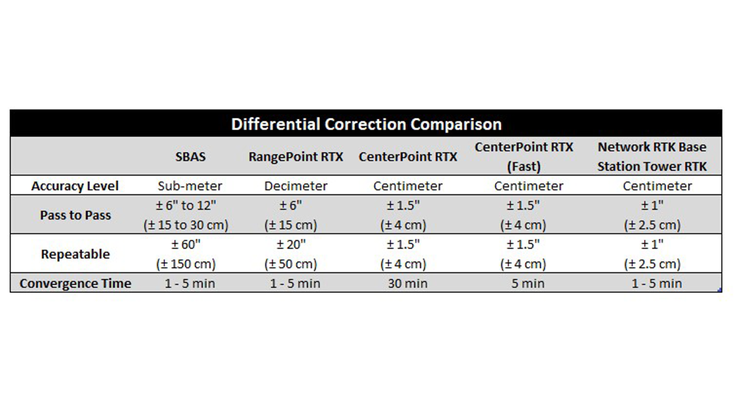

The optional Trimble AG-482 solution offers a high-performance, dual-frequency GPS and GLONASS smart antenna receiver for very high levels of accuracy and performance. The base correction source is SBAS but can be upgraded for higher accuracy levels with:

1. RangePoint RTX - One year free of RangePoint. Work with your local dealer to activate.
2. CenterPoint RTX
3. CenterPoint RTX Fast
4. xFill
5. RTK Base Station

Using the integrated terminal, the Fendt TaskDoc^® wireless data transfer can manage your application data as it records as-applied, weather and field data including boundaries, waylines and obstacles.

1. Export/import data via ISOXML or .SHP file format
2. Easy data transfer from PC to machine and back
3. Compatible with Trimble Ag Software (FarmWorks) and AgroLink wireless data solutions

Weather station data can be viewed from the Varioterminal or the Viper^® 4+ and allows data to be recorded as a snapshot in time or throughout the field. This data can be used for documentation of the application.

The OptiStop™ nozzle control system uses small ball valves at each nozzle body for instant on/off control and regulates 36 sections regardless of boom width via the rate control module (RCM).

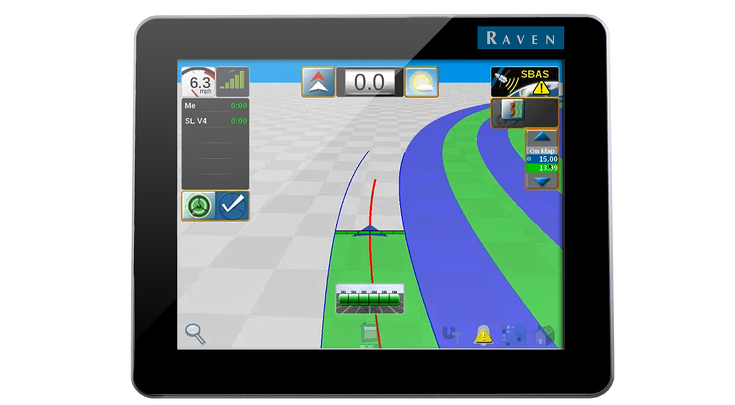

The Fendt Viper^® 4+ field computer delivers the ultimate combination of operating power and program capabilities:

1. 10-product variable rate application (VRA)
2. Real-time data mapping
3. Record keeping
4. Intuitive touchscreen control
5. High-quality graphics
6. Previous coverage application zones

The Fendt OptiPulse control system is a pressure-based system for precise application. Each nozzle is controlled by its own individual pulsing valve to give a consistent spray pattern as speed and conditions change. Other features include:

1. Extended speed range from nozzle tips maintaining consistent droplet size and spray pattern for maximized field speeds.
2. Nozzle-by-nozzle turn compensation adjusting duty cycle to minimize over- and under-applications.
3. Multiple pressure settings allowing for application preplanning with lower pressure for sensitive areas and normal pressure for field interiors.
4. The base package providing 16-section control regardless of boom width. The optional HD unlock increases OptiPulse accuracy with individual nozzle controls.
5. Individual valve diagnostics.
6. Two-year warranty with registration.

Fendt Guide RS1 is a fully scalable steering solution that combines GPS and auto-steer into one intuitive, easy-to-use unit. Incredible accuracy at both high and low speeds with quick-line acquire improves efficiency and gives you the power to cover more acres in less time. Includes features such as:

1. Enhanced steering performance in a wide range of terrain
2. 3D compensation for rugged terrain
3. Simple field calibration
4. Diagnostics and health tests
5. A base SBAS GPS offering that can be upgraded to:

• Satellite GS-Lite (decimeter)
• Satellite GS (decimeter)
• Satellite GS-Pro (centimeter)
• Slingshot RTK
• Raven Corrections

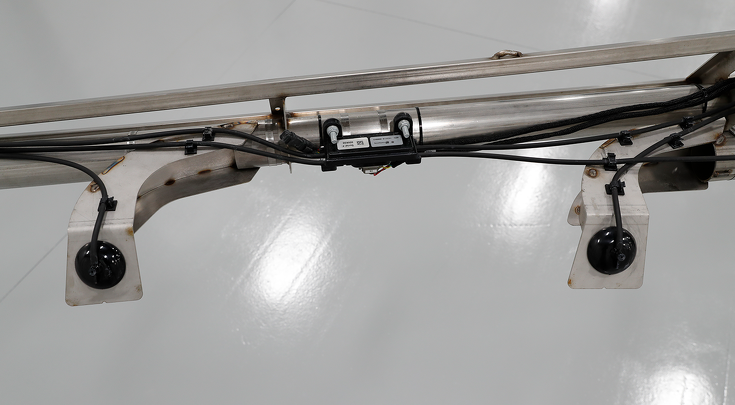

Fendt Vision leverages a non-contact stereo vision camera to navigate crop rows, allowing the operator to focus on other aspects of effective application control. The system helps minimize crop damage, cover more acres in less time and provide easier machine operations such as:

1. Requiring in-field calibration only for different crop widths
2. Three control modes for accurate steering include:
   a. GPS/GNSS Mode - Uses traditional guidance lines
   b. VSN Mode - Will only use the VSN camera
   c. VSN+ Mode - Will fall back to GPS last pass if it cannot detect the crop row due to weed pressure or drown out
3. Turn+ (included with the purchase of Fendt Vision) automatically performs headland turns. With the proper speed, the guidance system completes headland turns without the operator’s input, allowing them to prepare for the next pass.

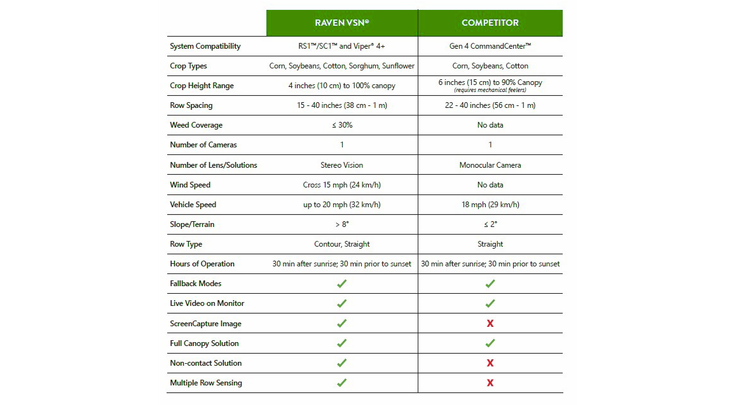

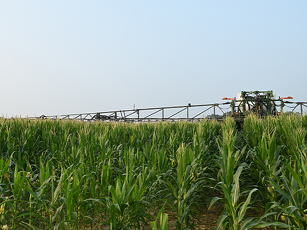

When crops are too tall to effectively see the row, Raven VSN^® full-canopy solution complements the VSN system with a non-contact radar sensor that detects stalked crops, such as corn, to keep the machine in between rows. Available through AGCO Parts.

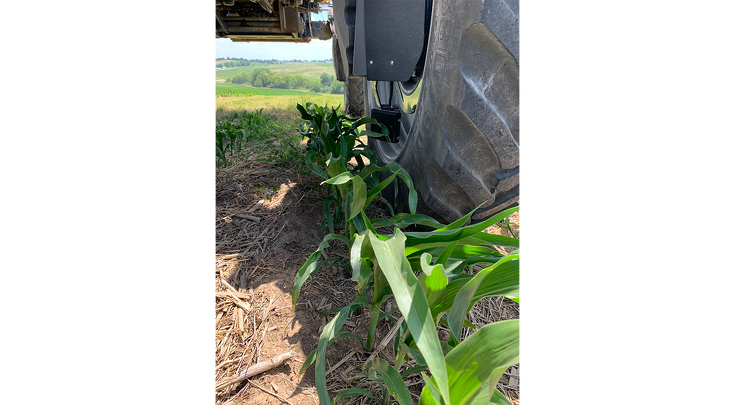

1. Mounted to the bottom of each front wheel leg, VSN can detect rows when crops are too tall for the standard Fendt Vision system to identify the crop row.
2. Detects multiple rows to keep the machine on track, even with row skips. Permits application speeds of up to 20 mph with a minimum row spacing of 30 inches.

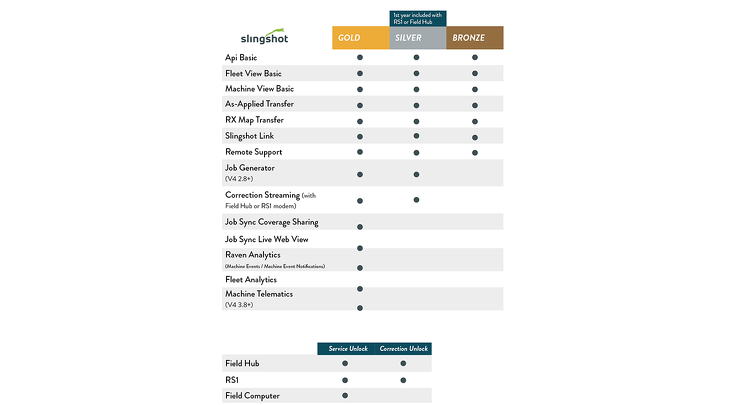

Slingshot^® is a suite of connected hardware, software and logistical services that optimizes the planning, executing and recording of field applications. This system delivers high levels of connectivity to RTK correction signals, online services, sophisticated data management capabilities and live in-field support and service. The system:

1. Enables remote software updates and management capabilities.
2. Sends VRA maps to and from the field, making office work more efficient and eliminating costly downtime caused by file problems.
3. Allows remote support to see exactly what the operator sees, making issue identification much more efficient and accurate.
4. Includes a one-year free Silver subscription.

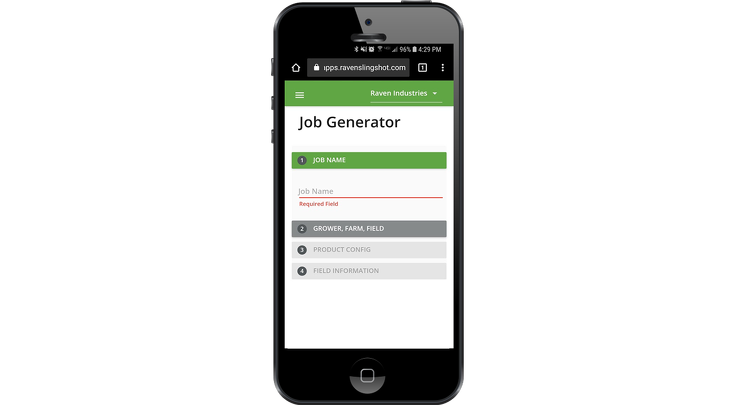

Job generator is a fast and simple way to set up a task and send it to the machine.

1. This system can set up nearly all operation parameters ahead of time, requiring the operator only to accept them.
2. Configurable parameters include products, rates, field locations, entry points and Rx maps.

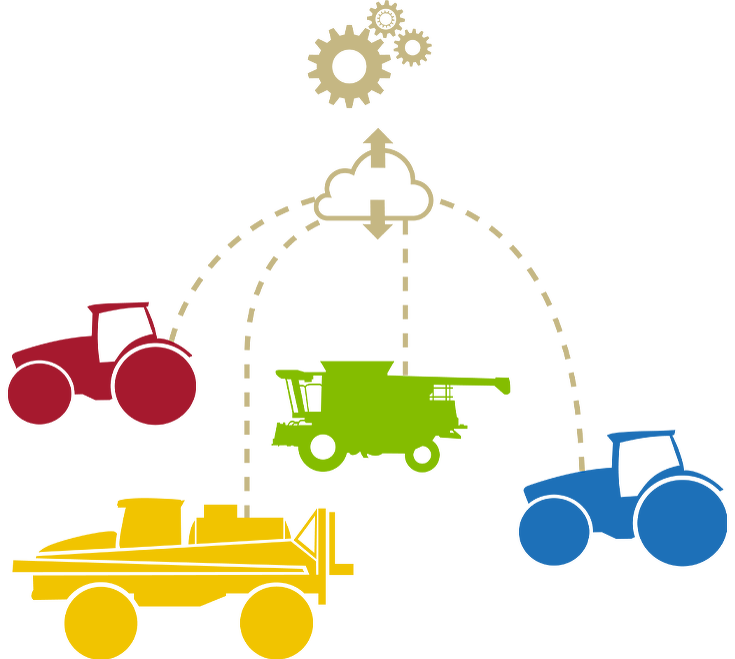

Job Sync harnesses Slingshot to allow multiple machines to collaborate on a job simultaneously or days apart — a powerful tool that practically eliminates the potential for overlap or misapplication between multiple machines.

1. Identical machines are not required.
2. Machine-to-machine job status widget helps manage which machines can perform the application.

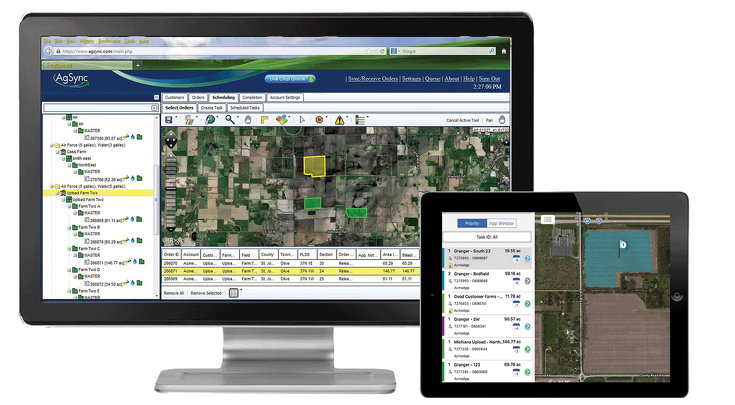

AgSync Ground is a flexible and scalable tool that leverages Slingshot’s data transfer power. The logistics system streamlines otherwise complex tasks, such as:

1. Work Order Management: Create work orders and build map information.
2. Dispatch and Asset Control: Assign work orders and send them to one or multiple machines.
3. Reports and Notifications: Send the work order for processing with the application report and information needed for billing.

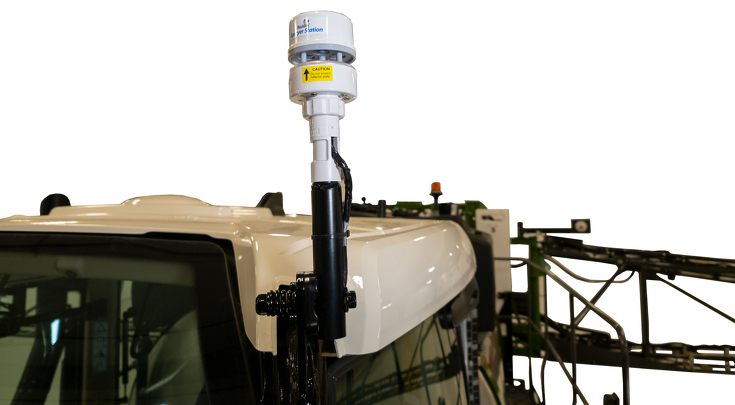

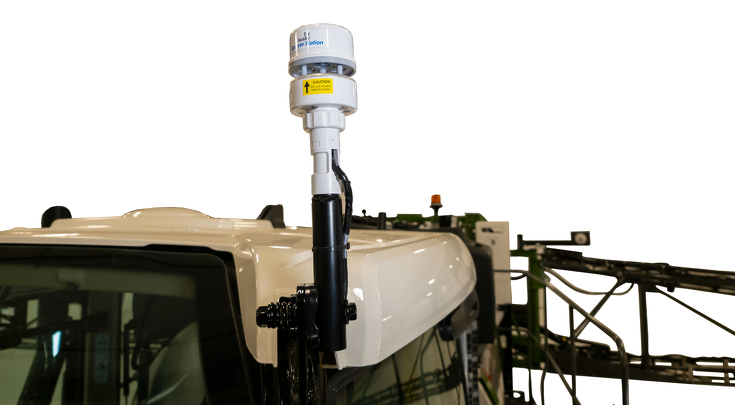

Weather Station

1. Weather station data can be viewed from the Varioterminal or the Viper^® 4+ and allows data to be recorded as a snapshot in time or throughout the field. This data can be used for documentation of the application.

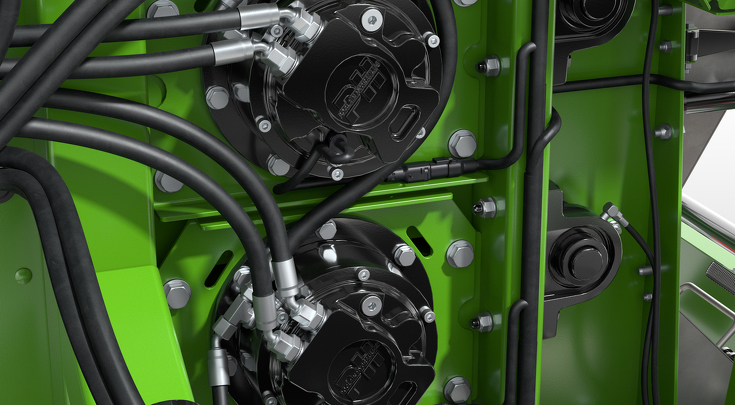

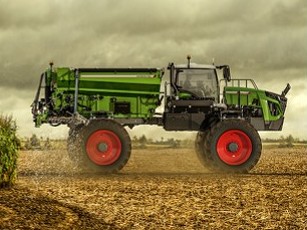

The low speed and high torque provided by UltraSpread’s radial piston hydraulic motors permit the conveyor chain to maintain consistent slow or fast motion under the load of product in the box, unlike gearbox designs that struggle to perform under load and at low rates.

1. The rate sensors use 888 pulses per revolution, which provides 150% more pulses for every degree of rotation, increasing the accuracy of the overall product control.
2. The UltraSpread motors support a large rate range, which eliminates the need for operators to change any box settings in order to apply throughout the window.

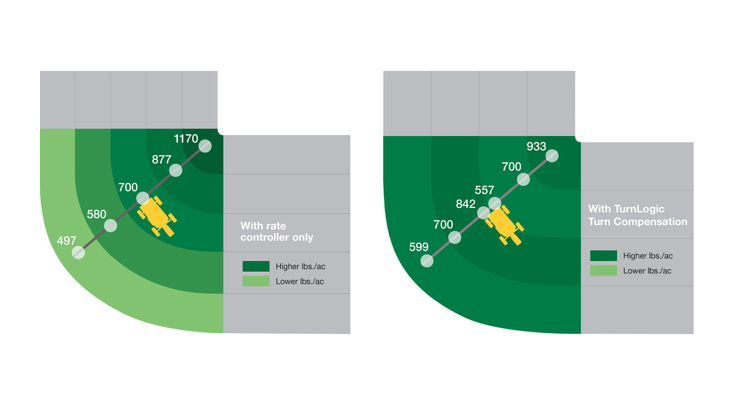

Agronomic accuracy is about proper product placement, soil health and yield improvement. TurnLogic automatically adjusts distribution rates to ensure even coverage during cornering. Rate is automatically controlled from the center point on each boom wing, adjusting up or down (based on the position of the steering axles) to ensure even fertilizer distribution over any curve. Continuous under- and over-application in the same spot over time can lead to plant lodging or soil nutrient deficits and result in yield reductions. TurnLogic helps maximize yields while improving soil and plant health.

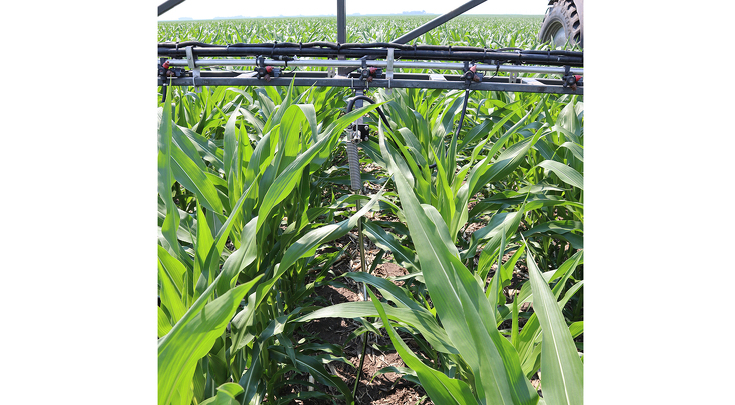

Drop hoses can be purchased through AGCO Parts to place late-season nitrogen or cover crops between the rows and below the crop canopy. This increases effectiveness of the application and prevents fertilizer or seed from becoming trapped in the whorl of the plant.

Recon SpreadSense^® is an acoustic sensor that provides real-time flow detection through a pneumatic spreader. Sensors installed on the back of each deflector monitor material flow and send sound pulses to an ECU, which then displays blockage information on an iPad^® in the cab.

1. This system has proven to reduce operator stress and prevent misapplications due to plugged nozzles.

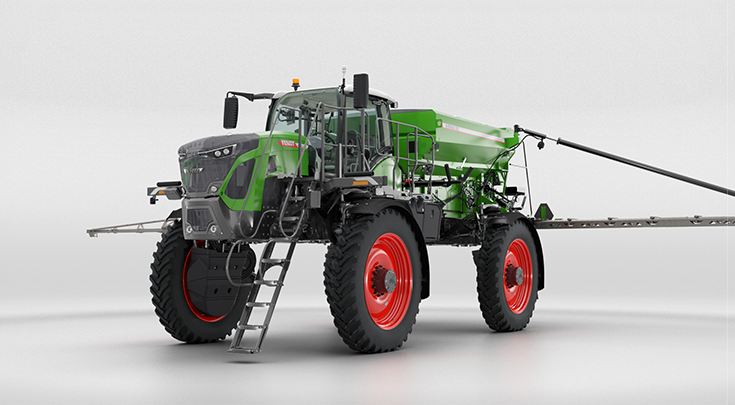

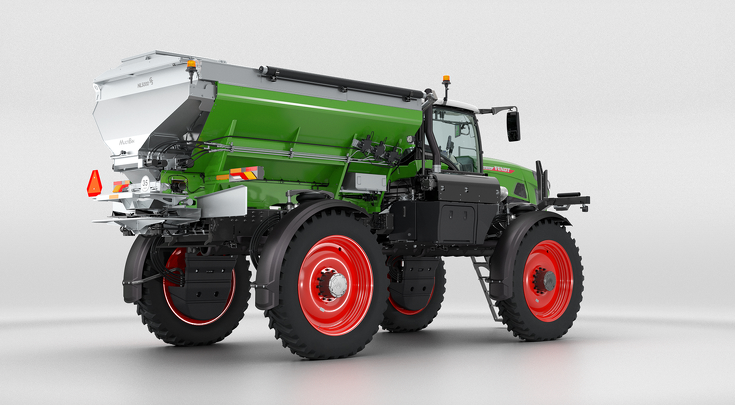

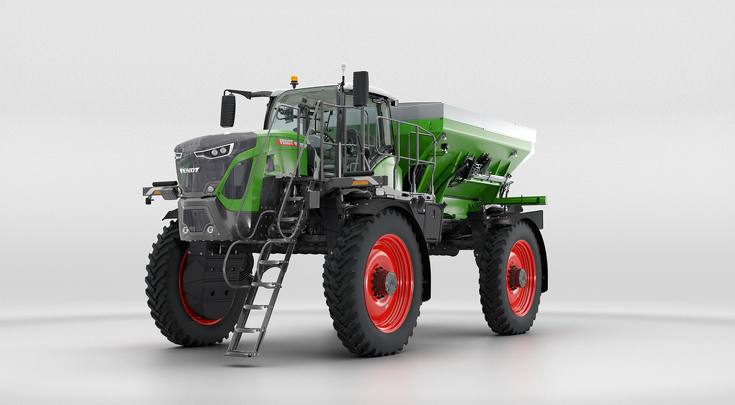

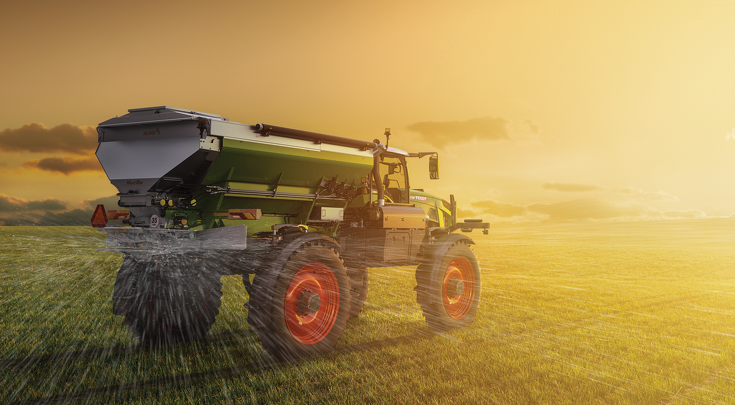

The four MultApplier Ready models feature wide, tapered sides for quick filling, and a spread width of up to 36 meters. In just a few hours, the LiquidLogic^® system can be easily swapped out for a spinner, providing year-round usage and improved ROI.

The L4500 EDGE family of spreaders includes many new features to keep this box running accurately for many years. Standard features include:

1. New Leader ISO interface for consistent product control regardless of terminal.
2. Stainless steel durability with 304 stainless steel sills, cross tubes, mounts, a feedgate, spinner jacks and take-ups for extended box life.
3. Independent spinner speed control for precise and repeatable patterns and the ability to slow one spinner down using the Boundary spread feature to keep product in the field.
4. Feedgate optimizer that helps determine achievable rates based on gate height.
5. Automatic belt tension that eliminates the guesswork out of setting tension and increases conveyor life.
6. Centrally-located front/rear grease banks for easier access and servicing.
7. Auto-chain oiler system that reminds operators of service needs at the end of the day to extend the life of the conveyor.

All spinner systems use a 151 liters per minute hydraulic flow to provide the most powerful spinner system available on any high-clearance machine. This allows the Fendt Rogator^® to function at higher rates and higher speeds
